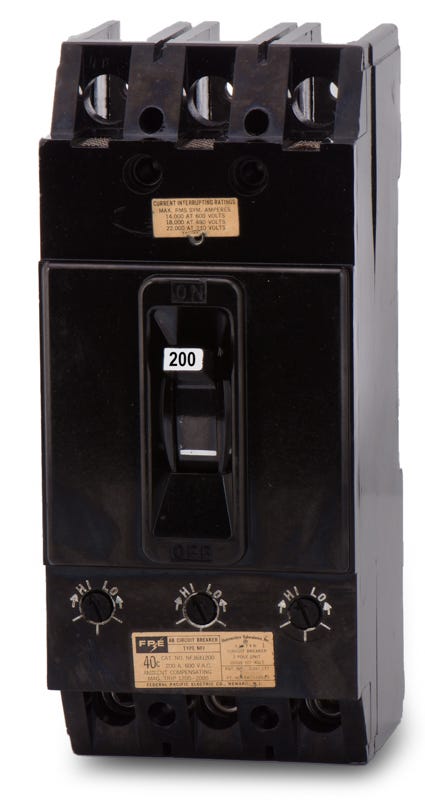

Federal Pacific NFJ631200R NFJ631200 - 200A 3 Pole Molded Case Circuit Breaker
- 200A
- 3 Pole
- Bolt-On
Federal Pacific
NFJ631200R
NFJ631200 - 200A 3 Pole Molded Case Circuit Breaker
Brand
Federal Pacific
SKU
NFJ631200R
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Federal Pacific NFJ631200 - 200A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
3 Pole Circuit Breaker
225A 3 Pole Molded Case Circuit Breaker
175A 3 Pole Molded Case Circuit Breaker
Description
Built for commercial and industrial applications, the NFJ631200R is a 200A, 3-pole molded case circuit breaker featuring a factory-installed rotary handle. It serves as an exact replacement for the standard NFJ631200, allowing facilities to maintain their legacy Federal Pacific panelboards without requiring extensive modifications. Delivering 18 kAIC at 480VAC, this N-Frame breaker utilizes a reliable thermal-magnetic trip unit and mounts securely using a traditional bolt-on configuration.Specifications
| Brand | Federal Pacific |
|---|---|
| Part Number | NFJ631200R |
| Series | NFJ |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Federal Pacific Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release |
|---|---|
| Accessories | Line and Load Lugs Included, Rotary Handle (Factory Installed) |
| Standards | UL 489, NEMA AB-1 |
| Approval | UL |
| Temp Rating | 40C |
Product FAQs
5 answersWhat panelboards accept the Federal Pacific NFJ631200?
This N-Frame molded case circuit breaker is designed specifically for legacy Federal Pacific commercial panelboards and switchboards that require bolt-on NFJ series breakers.
Can the NFJ631200R replace a standard NFJ631200 breaker?
Yes. The NFJ631200R serves as an exact drop-in replacement for the standard NFJ631200. The R designation indicates it includes a factory-installed rotary handle, but it maintains the same physical footprint and bolt-on configuration for legacy enclosures.
How is the NFJ631200 installed into the panel?
This breaker utilizes a standard bolt-on mounting configuration to secure directly to the panelboard bus. The load side features lug terminals that accept conductors from 4 AWG up to 300 kcmil.
Does this breaker share the safety issues associated with Federal Pacific Stab-Lok panels?
No. The NFJ631200 is a commercial-grade, N-Frame molded case circuit breaker with a bolt-on mounting design. It is completely distinct from the residential Stab-Lok plug-on breakers that are known for documented safety and reliability concerns.
Are the trip settings adjustable on the NFJ631200?
No. This breaker is equipped with a non-interchangeable thermal-magnetic trip unit featuring fixed long-time and fixed instantaneous (LI) trip functions.
