Federal Pacific NJL631200R Molded Case Circuit Breaker
- 200A
- 3 Pole
- Bolt-On
Federal Pacific
NJL631200R
Molded Case Circuit Breaker
Brand
Federal Pacific
SKU
NJL631200R
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

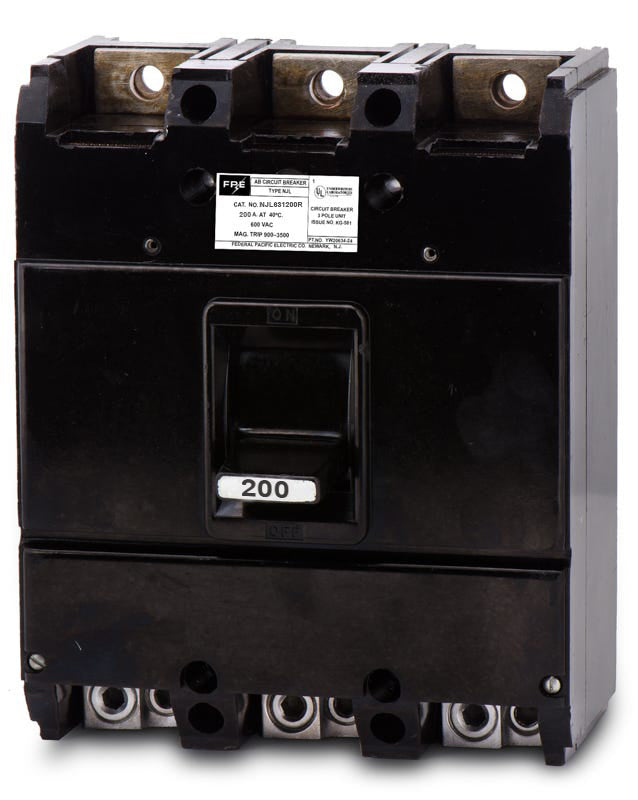

Federal Pacific NJL631200R - 200A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
250A 3 Pole Molded Case Circuit Breaker
250A 3 Pole Molded Case Circuit Breaker
125A 3 Pole Molded Case Circuit Breaker
Description
Part of the legacy NJL series, this Federal Pacific 200A molded case circuit breaker is designed to fit seamlessly into existing FPE switchboards. The 3-pole, bolt-on device provides essential long-time and instantaneous (LI) protection for commercial facilities. Rated for 30kA interrupting capacity at 480VAC, it serves as an exact drop-in substitute for the NJL632200. It features a rotary handle mechanism and non-interchangeable trip unit for dependable performance.Specifications
| Brand | Federal Pacific |
|---|---|
| Part Number | NJL631200R-R |
| Series | NJL |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC |
| Frame Type | NJL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Federal Pacific Switchboards, Panelboards |
| Wire Gauge | 6 AWG - 350 kcmil |
| Max Wire | 350 kcmil |
| Min Wire | 6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Undervoltage Release, Auxiliary Switch |
|---|---|
| Accessories | Rotary Handle |
| Standards | UL 489, NEMA AB 1 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip, Rotary Handle Mechanism |
Product FAQs
4 answersWhat equipment is compatible with the NJL631200R circuit breaker?
This legacy N-frame breaker is designed for installation in existing Federal Pacific switchboards and panelboards that require a bolt-on connection.
What wire gauge range is supported by the terminal lugs?
The lugs on this breaker accept wire sizes ranging from 6 AWG to 350 kcmil.
Is the NJL631200R a direct replacement for other Federal Pacific models?
Yes, this model serves as an exact drop-in substitute for the legacy NJL632200 circuit breaker.
Are the trip settings on this breaker adjustable?
No, it features a non-interchangeable thermal magnetic trip unit with fixed long-time and instantaneous trip functions.
