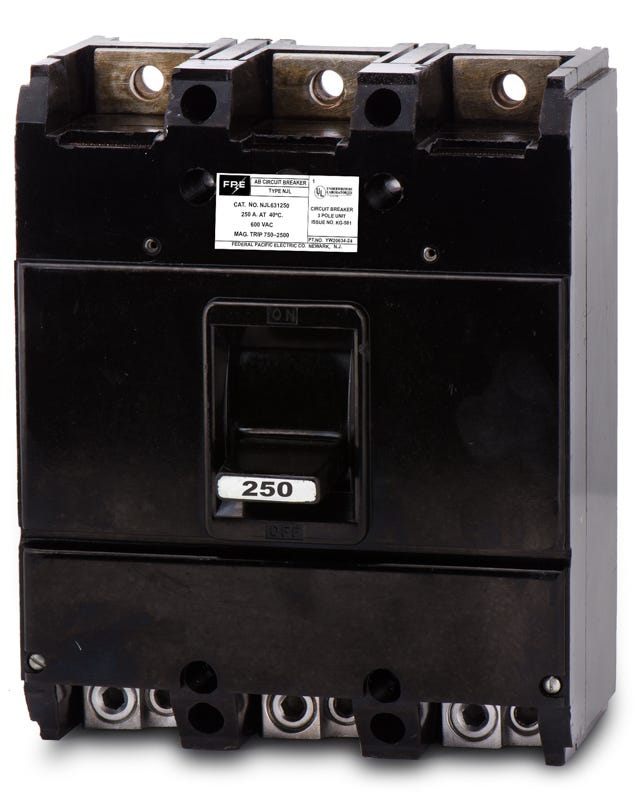

Federal Pacific NJL631250 Molded Case Circuit Breaker
- 250A
- 3 Pole
- Bolt-On
Federal Pacific
NJL631250
Molded Case Circuit Breaker
Brand
Federal Pacific
SKU
NJL631250
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Federal Pacific NJL631250 - 250A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
300A 3 Pole Molded Case Circuit Breaker
200A 3 Pole Molded Case Circuit Breaker
175A 3 Pole Molded Case Circuit Breaker
Description
A drop-in replacement for aging electrical systems, the Federal Pacific NJL631250 is a 250A molded case circuit breaker. It restores commercial power distribution without requiring panel modifications. This bolt-on MCCB mounts into legacy Federal Pacific switchboards and panelboards. It serves as an exact fit for N-Frame applications, cross-referencing with the NJL632250 alternative. Rated for 30kAIC at 480VAC, it utilizes fixed thermal magnetic trip technology for reliable LI protection.Specifications
| Brand | Federal Pacific |
|---|---|
| Part Number | NJL631250-R |
| Series | NJL |
| Amperage | 250A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Federal Pacific Switchboards, Panelboards |
| Wire Gauge | 6 AWG - 350 kcmil |
| Max Wire | 350 kcmil |
| Min Wire | 6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Undervoltage Release, Auxiliary Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | UL 489, NEMA AB 1 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip |
Product FAQs
4 answersWhich panelboards are compatible with the NJL631250 circuit breaker?
It is designed to mount into legacy Federal Pacific switchboards and panelboards configured for N-Frame bolt-on circuit breakers.
How is the NJL631250 connected within a switchboard?
It features a bolt-on mounting style for the line side and comes equipped with load-side lug terminals that accommodate 6 AWG to 350 kcmil conductors.
What is a valid cross-reference for the Federal Pacific NJL631250?
This breaker cross-references directly with the Federal Pacific NJL632250, serving as an exact fit for 250A, 3-pole N-Frame applications.
Are the thermal and magnetic trip functions on the NJL631250 adjustable?
No, this molded case circuit breaker features fixed thermal and fixed magnetic trip settings for long-time and instantaneous (LI) protection.
