ABB / General Electric FBH36TE050RV Molded Case Circuit Breaker
- 50A
- 3 Pole
- Bolt-On
ABB / General Electric
FBH36TE050RV
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
FBH36TE050RV
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

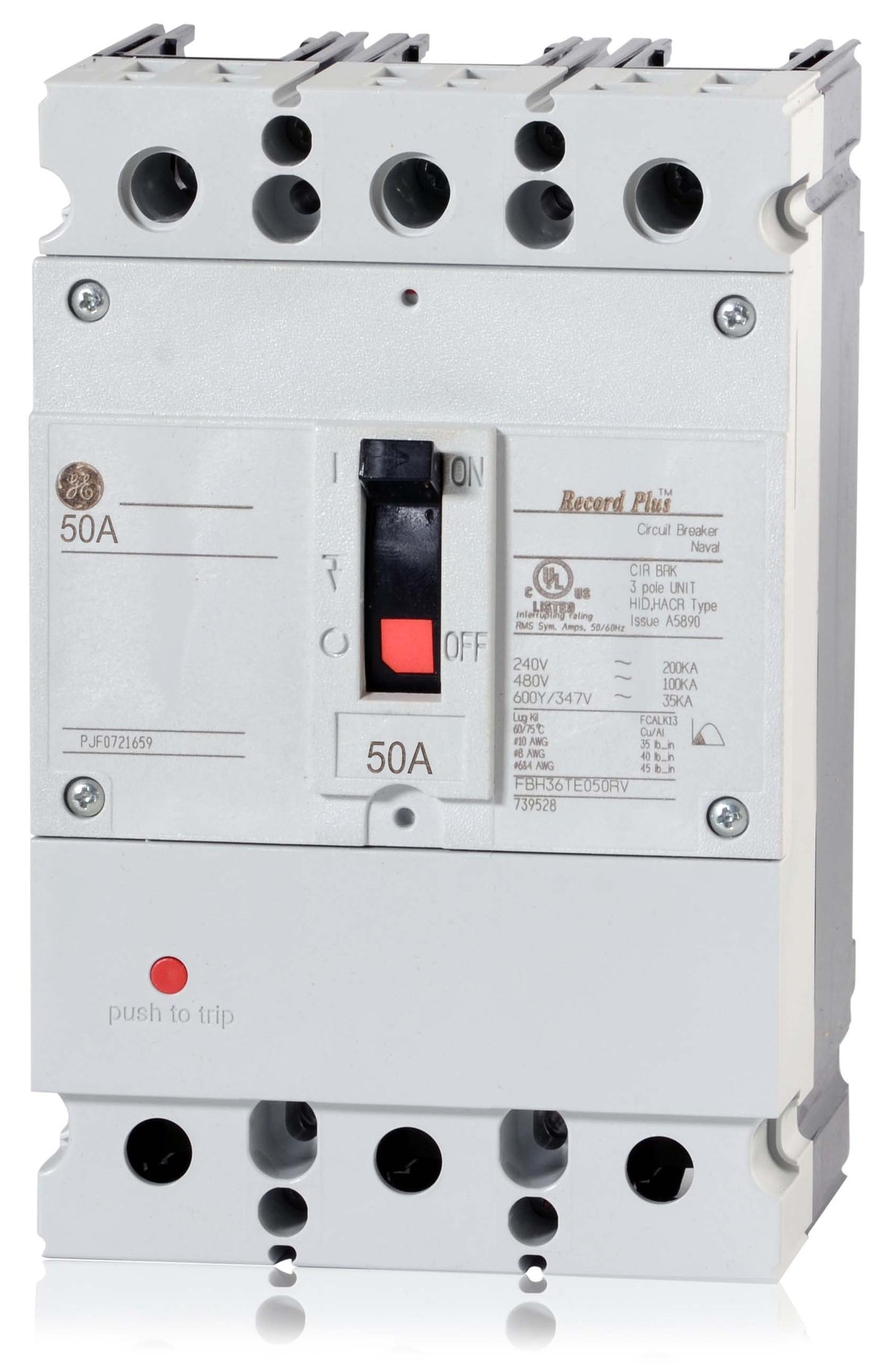

ABB / General Electric FBH36TE050RV - 50A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricFBH36TE030RV
30A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricFBH36TE020RV
20A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricFBH36TE015RV
15A 3 Pole Molded Case Circuit Breaker
Description
The FBH36TE050RV is a 3-pole, 50A molded case circuit breaker from GE's Record Plus family. This FBH frame breaker utilizes a double-break rotary contact structure for exceptional current-limiting capabilities. Featuring a bolt-on mounting style, it comes equipped with load lugs and line connections tailored for installation into GE A-Series (Type AD) panelboards. Rated for 200kAIC at 240VAC, it ensures robust protection. The unit includes a fixed thermal-magnetic trip with LI functions.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | FBH36TE050RV |
| Series | FBH |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 500VDC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 100kA @ 480VAC, 35kA @ 600Y/347VAC, 85kA @ 500VDC |
| Frame Type | FB |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards (Type AD/AD Plus) |
| Wire Gauge | 14-2 AWG (Cu), 12-2 AWG (Al) |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Bell Alarm, Shunt Trip, Undervoltage Release |
|---|---|
| Accessories | Load Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | -40C to 75C |
| Construction Features | Current Limiting, HACR Rated, Naval Rated, Double-Break Rotary Contact Structure, High Interrupting Capacity, HID Rated |
Product FAQs
6 answersWhat panelboards are compatible with the FBH36TE050RV?
This Record Plus FB frame breaker is designed specifically for GE A-Series panelboards, including Type AD and AD Plus. It mounts using a bolt-on connection.
What are the lug torque specifications for the FBH36TE050RV?
The tightening torque depends on the wire size used: 35 in-lb for 10 AWG, 40 in-lb for 8 AWG, 45 in-lb for 6 AWG to 4 AWG, and 50 in-lb for 3 AWG to 2 AWG.
Is the FBH36TE050RV breaker HACR and HID rated?
Yes, this circuit breaker is UL listed for both HACR (Heating, Air Conditioning, and Refrigeration) and HID (High-Intensity Discharge) applications.
Can the FBH36TE050RV be reverse fed?
Yes, this Record Plus circuit breaker does not have line or load restrictions and can be safely reverse fed for back-feeding applications.
Will this breaker be branded as ABB or General Electric?
Because ABB acquired GE Industrial Solutions, this breaker may arrive with ABB, General Electric, or dual-branded labeling. The form, fit, function, and FBH36TE050RV catalog number remain identical regardless of the printed logo.
What does the RV suffix indicate in the FBH36TE050RV catalog number?
In the Record Plus FB100 frame nomenclature, the RV suffix indicates that the breaker is supplied with factory-installed load lugs and panel connections.
