ABB / General Electric FBH36TE060RV Molded Case Circuit Breaker
- 60A
- 3 Pole
- Bolt-On
ABB / General Electric
FBH36TE060RV
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
FBH36TE060RV
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

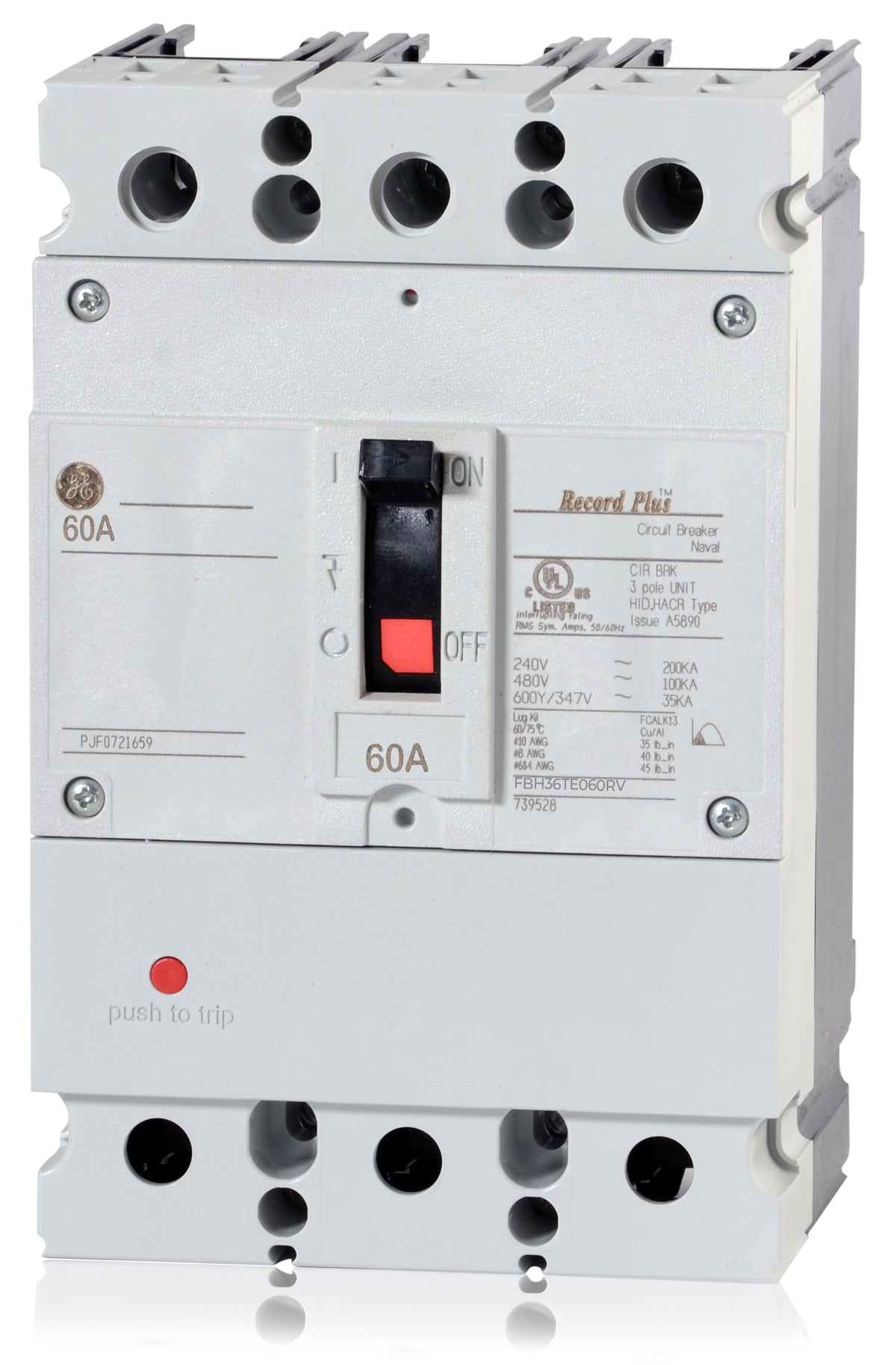

ABB / General Electric FBH36TE060RV - 60A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricFBH36TE030RV
30A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricFBH36TE020RV
20A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricFBH36TE015RV
15A 3 Pole Molded Case Circuit Breaker
Description
Built for commercial applications, the GE FBH36TE060RV is a 60A, 3-pole MCCB. As part of the Record Plus series, it delivers high-performance current limitation and reliable circuit isolation. This breaker includes factory-configured line connections and load lugs engineered for bolt-on mounting in GE Type AD panelboards. Featuring a fixed thermal-magnetic trip unit, it provides LI protection. It boasts interrupt ratings of 200kAIC at 240VAC and carries HACR and Naval ratings.Specifications
| Brand | ABB / General Electric |
|---|---|
| Series | FBH |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 500VDC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 100kA @ 480VAC, 35kA @ 600Y/347VAC, 85kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE Type AD Panelboards |
| Wire Gauge | 4-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | Line Connections for AD Panels, Load Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, UL, USCG |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated, Naval Rated |
Product FAQs
7 answersWhat panelboards are compatible with the FBH36TE060RV circuit breaker?
This breaker is engineered for bolt-on installation specifically in GE Type AD panelboards.
What wire sizes do the lugs on the FBH36TE060RV accept?
The factory installed load lugs accommodate wire gauges from 4 AWG to 1/0 AWG.
Is the FBH36TE060RV rated for DC applications?
Yes, in addition to its AC ratings, this breaker is rated for use in 500VDC systems with an interrupting capacity of 85kA.
What frame size does the FBH36TE060RV belong to?
It is built on the GE Record Plus FB100 frame. The FBH prefix designates the high interrupting tier within the FB frame family.
Are the trip settings adjustable on the FBH36TE060RV?
No, this breaker features a thermal magnetic trip unit with fixed long-time and fixed instantaneous (LI) protection functions.
Why might this breaker be branded as either ABB or GE?
ABB acquired GE Industrial Solutions in 2018. Depending on the manufacturing date, the FBH36TE060RV may feature either ABB or GE branding, but the physical dimensions and specifications remain identical.
Is the FBH36TE060RV HACR rated?
Yes, this breaker carries an HACR rating, making it suitable for use with heating, air conditioning, and refrigeration equipment.
