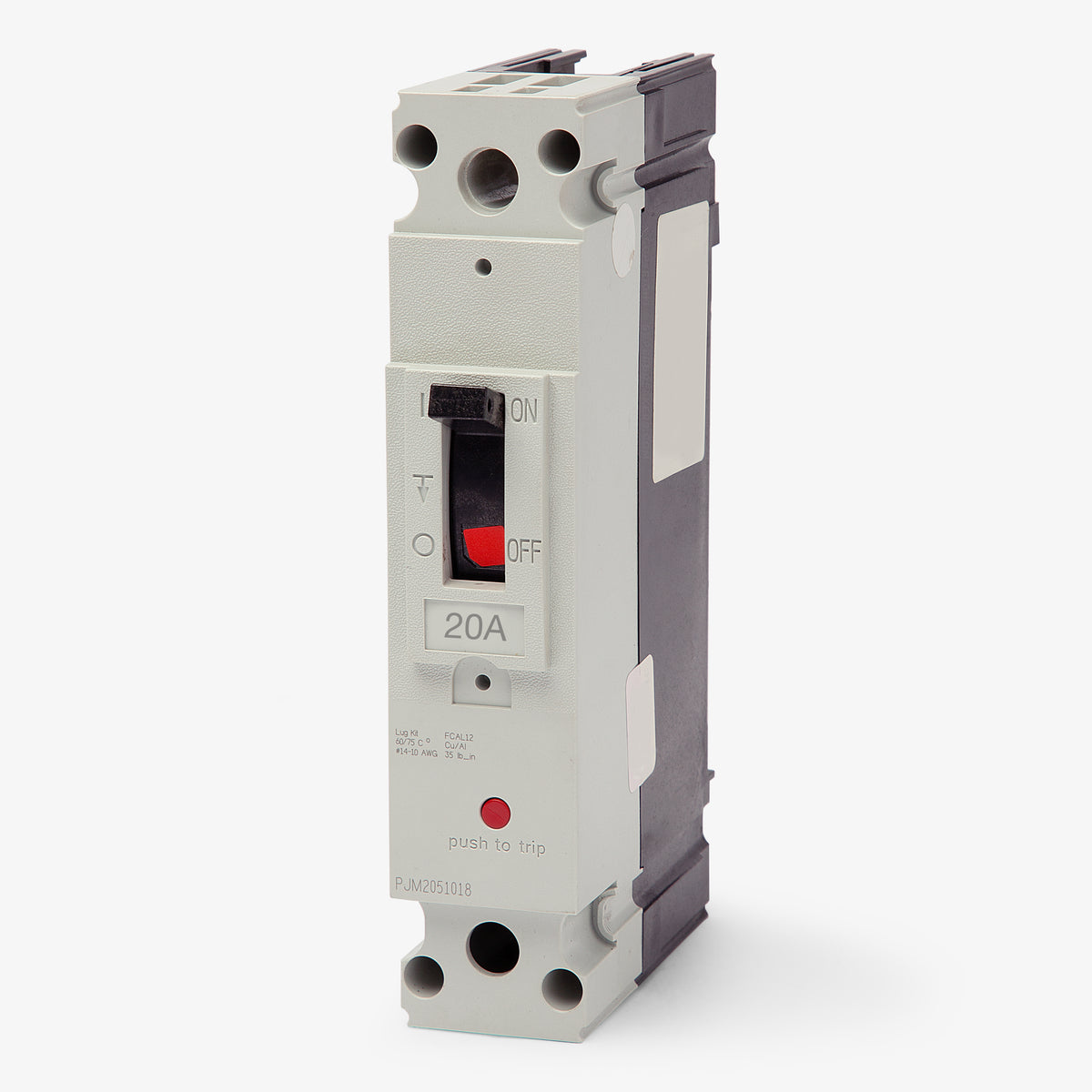

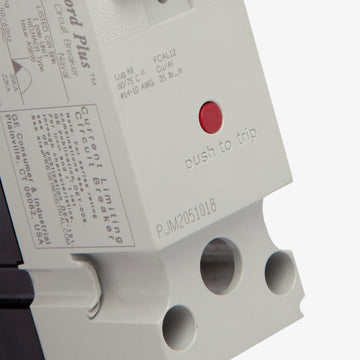

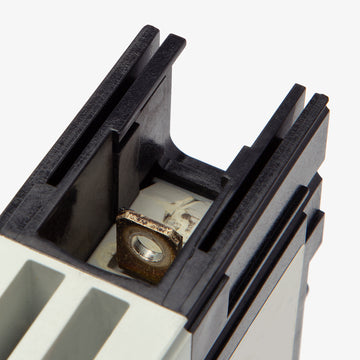

ABB / General Electric FBN16TE020RV Molded Case Circuit Breaker
- 20A
- 1 Pole
- Bolt-On
ABB / General Electric
FBN16TE020RV
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
FBN16TE020RV
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric FBN16TE020RV - 20A 1 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric FBN16TE020RV - 20A 1 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | FBN16TE020RV |
| Series | FBN |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 277VAC, 347VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 65kA @ 277VAC, 25kA @ 347VAC |
| Frame Type | FB |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE Type AD Panelboards |
| Wire Gauge | 10-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Undervoltage Release, Shunt Trip, Bell Alarm, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs, Line Side Panel Connectors |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, HID, UL |
| Temp Rating | -40C to 80C |
| Construction Features | Current Limiting, HACR Rated, Naval Rated, Double-Break Rotary Contact Structure, Reverse Feed, Trip-Free Mechanism, Non-Interchangeable Trip |
Sold out
Quantity
ABB / General Electric FBN16TE020RV - 20A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | FBN16TE020RV |
| Series | FBN |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 277VAC, 347VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 65kA @ 277VAC, 25kA @ 347VAC |
| Frame Type | FB |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE Type AD Panelboards |
| Wire Gauge | 10-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Undervoltage Release, Shunt Trip, Bell Alarm, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs, Line Side Panel Connectors |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, HID, UL |
| Temp Rating | -40C to 80C |
| Construction Features | Current Limiting, HACR Rated, Naval Rated, Double-Break Rotary Contact Structure, Reverse Feed, Trip-Free Mechanism, Non-Interchangeable Trip |
Similar Items
ABB / General ElectricFBN16TE015RV
15A 1 Pole Molded Case Circuit Breaker
ABB / General ElectricFBN16TE030RV
30A 1 Pole Molded Case Circuit Breaker
ABB / General ElectricFBN26TE020RV
20A 2 Pole Molded Case Circuit Breaker
Description
Engineered for commercial systems, the GE FBN16TE020RV is a 1-pole, 20A molded case circuit breaker from the Record Plus family. It delivers reliable thermal-magnetic protection with fixed long-time and instantaneous trip functions. This bolt-on breaker installs into GE Type AD panelboards and serves as a replacement for legacy TED114020 models. Rated for 65kAIC at 277VAC, it utilizes a current-limiting double-break rotary contact structure to minimize arc flash energy.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | FBN16TE020RV |
| Series | FBN |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 277VAC, 347VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 65kA @ 277VAC, 25kA @ 347VAC |
| Frame Type | FB |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE Type AD Panelboards |
| Wire Gauge | 10-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Undervoltage Release, Shunt Trip, Bell Alarm, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs, Line Side Panel Connectors |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, HID, UL |
| Temp Rating | -40C to 80C |
| Construction Features | Current Limiting, HACR Rated, Naval Rated, Double-Break Rotary Contact Structure, Reverse Feed, Trip-Free Mechanism, Non-Interchangeable Trip |
Product FAQs
6 answersWhich panelboards are compatible with the FBN16TE020RV circuit breaker?
This Record Plus FB frame breaker is designed for installation in GE Type AD panelboards. Proper FB frame mounting hardware is required to secure it to the panel bus.
Can the FBN16TE020RV be used to replace legacy GE breakers?
Yes, the Record Plus FB frame serves as a modern replacement for older GE TED and THED series breakers, including the TED114020. Always verify panelboard compatibility and mounting hardware before substituting frames.
What are the interrupting ratings for the FBN16TE020RV at different voltages?
This breaker provides a 65kA interrupting capacity at 240VAC and 277VAC. For 347VAC systems, the interrupting rating is 25kA. Its current-limiting design helps minimize arc flash energy during a fault.
What wire sizes and materials are supported by the terminals?
The factory-installed lugs accept 10 AWG to 4 AWG wire. The terminals are dual-rated for both copper (Cu) and aluminum (Al) conductors.
How does the thermal-magnetic trip unit operate on this FB frame breaker?
The breaker uses fixed Long-Time and Instantaneous (LI) trip functions. The thermal bimetal element provides delayed tripping for overloads, while the magnetic element trips instantaneously to clear short circuits.
Is the FBN16TE020RV a plug-in or bolt-on breaker?
This is a bolt-on circuit breaker. It must be mechanically bolted to the panelboard bus, providing a secure, vibration-resistant connection typical for commercial and industrial electrical systems.
