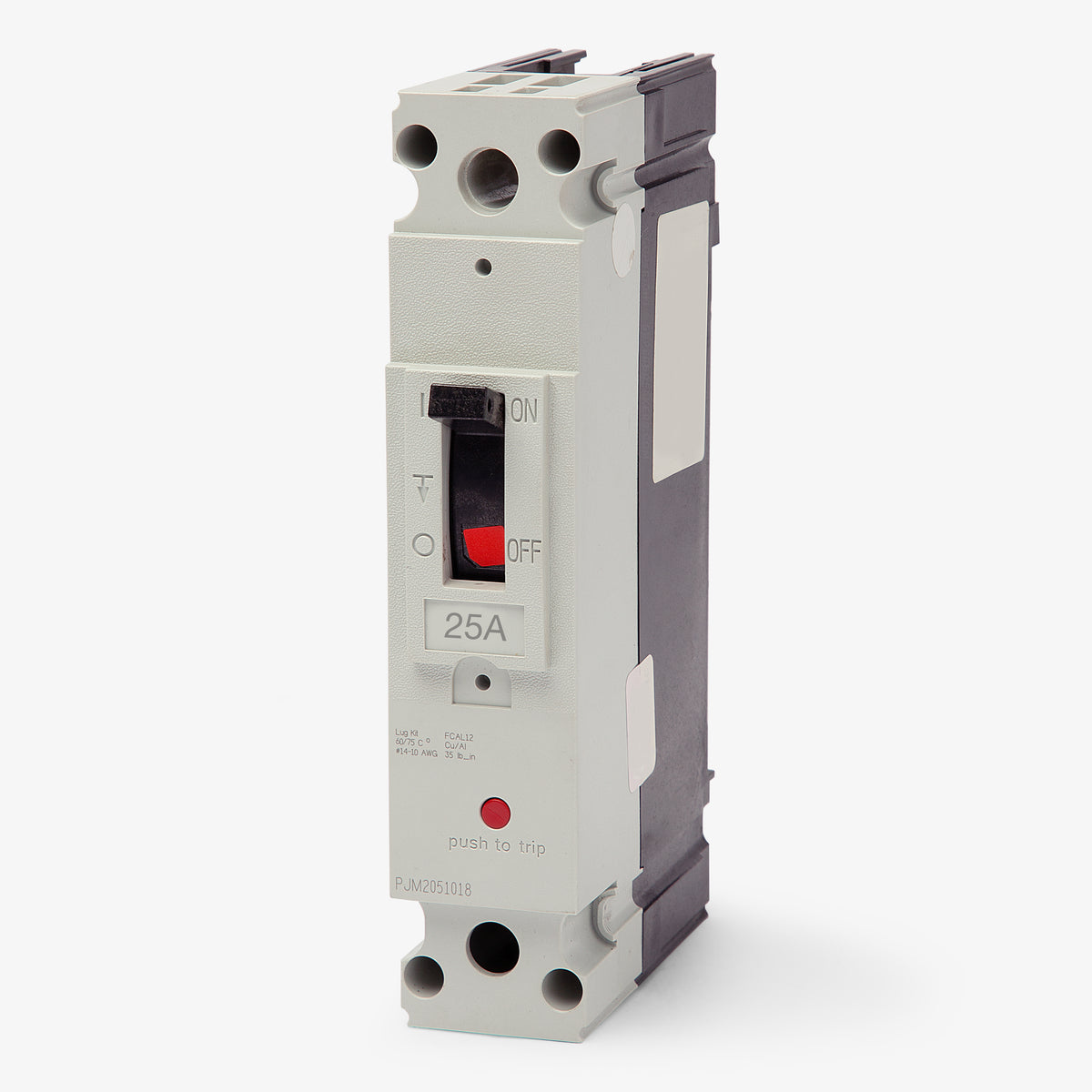

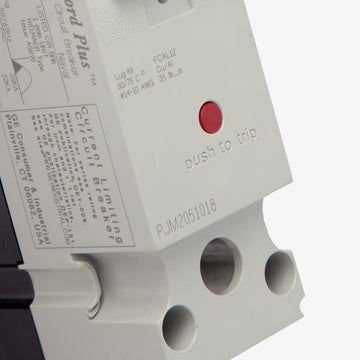

ABB / General Electric FBN16TE025RV Molded Case Circuit Breaker
- 25A
- 1 Pole
- Bolt-On
ABB / General Electric
FBN16TE025RV
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
FBN16TE025RV
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric FBN16TE025RV - 25A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricFBN16TE020RV
20A 1 Pole Molded Case Circuit Breaker
ABB / General ElectricFBN16TE015RV
15A 1 Pole Molded Case Circuit Breaker
ABB / General ElectricFBN26TE025RV
25A 2 Pole Molded Case Circuit Breaker
Description
A high-performance solution for industrial facilities, the GE FBN16TE025RV is a 25-amp, single-pole Record Plus circuit breaker. It provides robust thermal-magnetic protection for demanding electrical distribution networks. Designed with specialized line connections, this unit mounts into GE Type AD panelboards. It is the manufacturer's designated replacement for discontinued TED114025 breakers. The current-limiting design features a double-break rotary contact structure to isolate faults.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | FBN16TE025RV |
| Series | FBN |
| Amperage | 25A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 277VAC, 347VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 65kA @ 277VAC, 25kA @ 347VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE Type AD Panelboards |
| Wire Gauge | 10-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | Load Side Lugs Included, Line Side Panel Connectors |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, UL |
| Temp Rating | -40C to 80C |
| Construction Features | Current Limiting, HACR Rated, Naval Rated, Double-Break Rotary Contact Structure |
Product FAQs
6 answersWhich panelboards accept the FBN16TE025RV circuit breaker?
This bolt-on breaker is designed specifically for mounting in GE Type AD panelboards and A-Series panels configured for Record Plus FB frame breakers.
Can the FBN16TE025RV replace older GE circuit breakers?
Yes, this Record Plus FB breaker is the manufacturer designated replacement for the discontinued TED114025 1-pole circuit breaker.
Is the FBN16TE025RV suitable for reverse feed applications?
Yes. GE Record Plus FB frame breakers are not marked line and load, making them fully suitable for reverse feeding.
Is this 25-amp breaker HACR and HID rated?
Yes, the FBN16TE025RV carries both HACR (Heating, Air Conditioning, and Refrigeration) and HID (High-Intensity Discharge) ratings, making it suitable for HVAC equipment and commercial lighting loads.
What does the RV suffix indicate on the FBN16TE025RV catalog number?

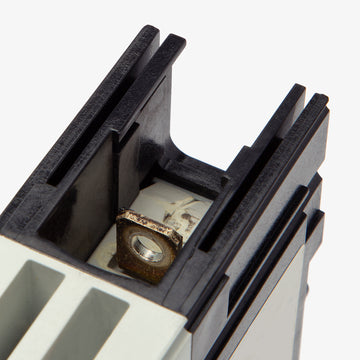

The RV suffix indicates that the breaker includes load-side lugs and specialized line-side panel connectors required for mounting in GE Type AD panelboards.
Does the FBN16TE025RV feature a current-limiting design?
Yes, this Record Plus FB breaker utilizes a double-break rotary contact structure to provide current-limiting performance and quickly isolate electrical faults.
