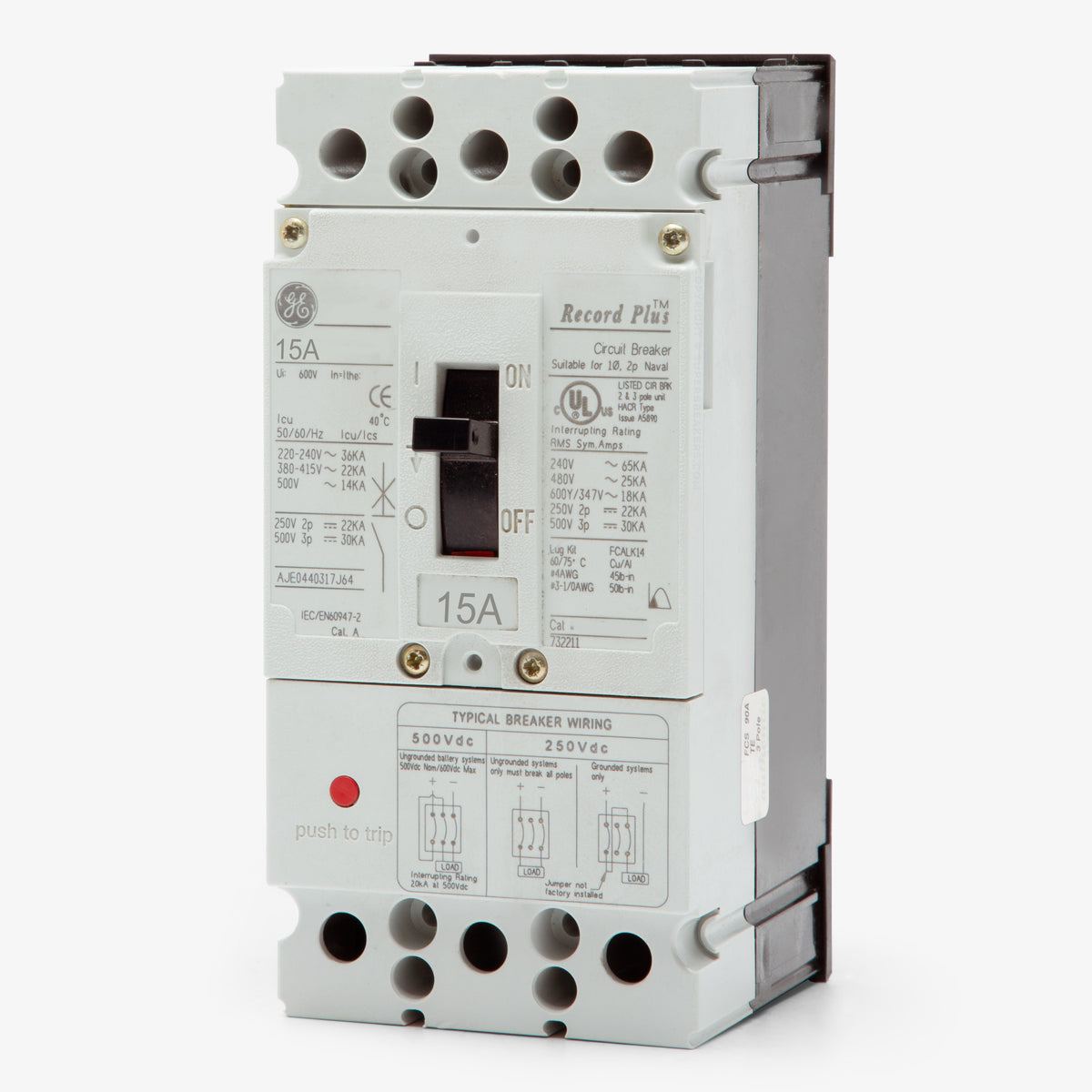

ABB / General Electric FCS36TE015R Molded Case Circuit Breaker
- 15A
- 3 Pole
- Unit Mount
ABB / General Electric
FCS36TE015R
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
FCS36TE015R
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric FCS36TE015R - 15A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricFCS36TE030R
30A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricFCS36TE040R
40A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricFCS36TE080R
80A 3 Pole Molded Case Circuit Breaker
Description
Built for commercial and industrial applications, this 15A Record Plus FCS breaker delivers robust overcurrent protection. It utilizes a fixed thermal-magnetic trip unit with long-time and instantaneous (LI) functions. The unit mounts into GE Record Plus panelboards and switchboards. As GE transitions its product lines, this breaker is replaced by the ABB Tmax XT1 series (XT1NU3015AFF000XXX). Rated 25kAIC at 480VAC, it is HACR and HID rated, featuring a current-limiting design.Specifications

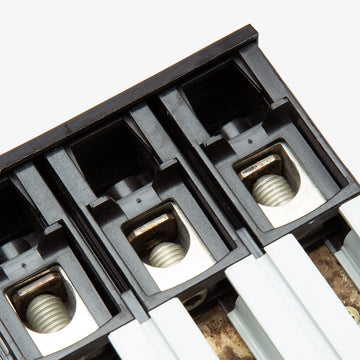

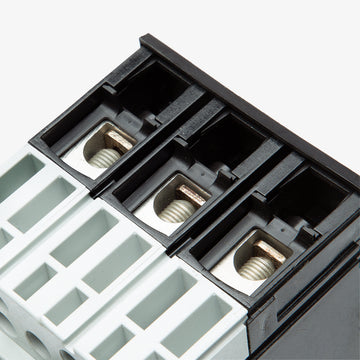

| Brand | ABB / General Electric |
|---|---|
| Part Number | FCS36TE015R |
| Series | FCS |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600Y/347VAC, 10kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE Record Plus Panelboards, Switchboards |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Lug Kits, Alarm Switch |
|---|---|
| Accessories | No Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, cULus, HACR, HID, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Double-Break Rotary Contact Structure |
Product FAQs
6 answersWhat does the R suffix mean in the FCS36TE015R catalog number?
In the GE Record Plus nomenclature, a standard R suffix indicates that the circuit breaker is supplied with no lugs. Variants with an R1 suffix include both line and load lugs, while an R2 suffix indicates load lugs only.
What is the ABB replacement for the GE FCS36TE015R?
Following ABB's acquisition of GE Industrial Solutions, the Record Plus FCS36TE015R is being transitioned to the ABB Tmax XT1 series. The direct replacement catalog number is XT1NU3015AFF000XXX.
What wire size do the standard lugs accept on the FC100 frame?
When standard lugs are installed on the 15A FC100 frame, they accept #10 to #4 AWG copper or aluminum wire.
Can the FCS36TE015R circuit breaker be reverse fed?
Yes. GE Record Plus thermal-magnetic circuit breakers that do not have specific line and load markings are suitable for reverse feeding applications.
Is the FCS36TE015R breaker HACR rated?
Yes, this Record Plus circuit breaker is HACR rated, meaning it is approved for use with heating, air conditioning, and refrigeration equipment.
Is this circuit breaker HID rated?
Yes, the FCS36TE015R is HID rated, making it suitable for switching High Intensity Discharge lighting loads.
