ABB / General Electric FCS36TE090R Molded Case Circuit Breaker
- 90A
- 3 Pole
- Unit Mount
ABB / General Electric
FCS36TE090R
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
FCS36TE090R
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

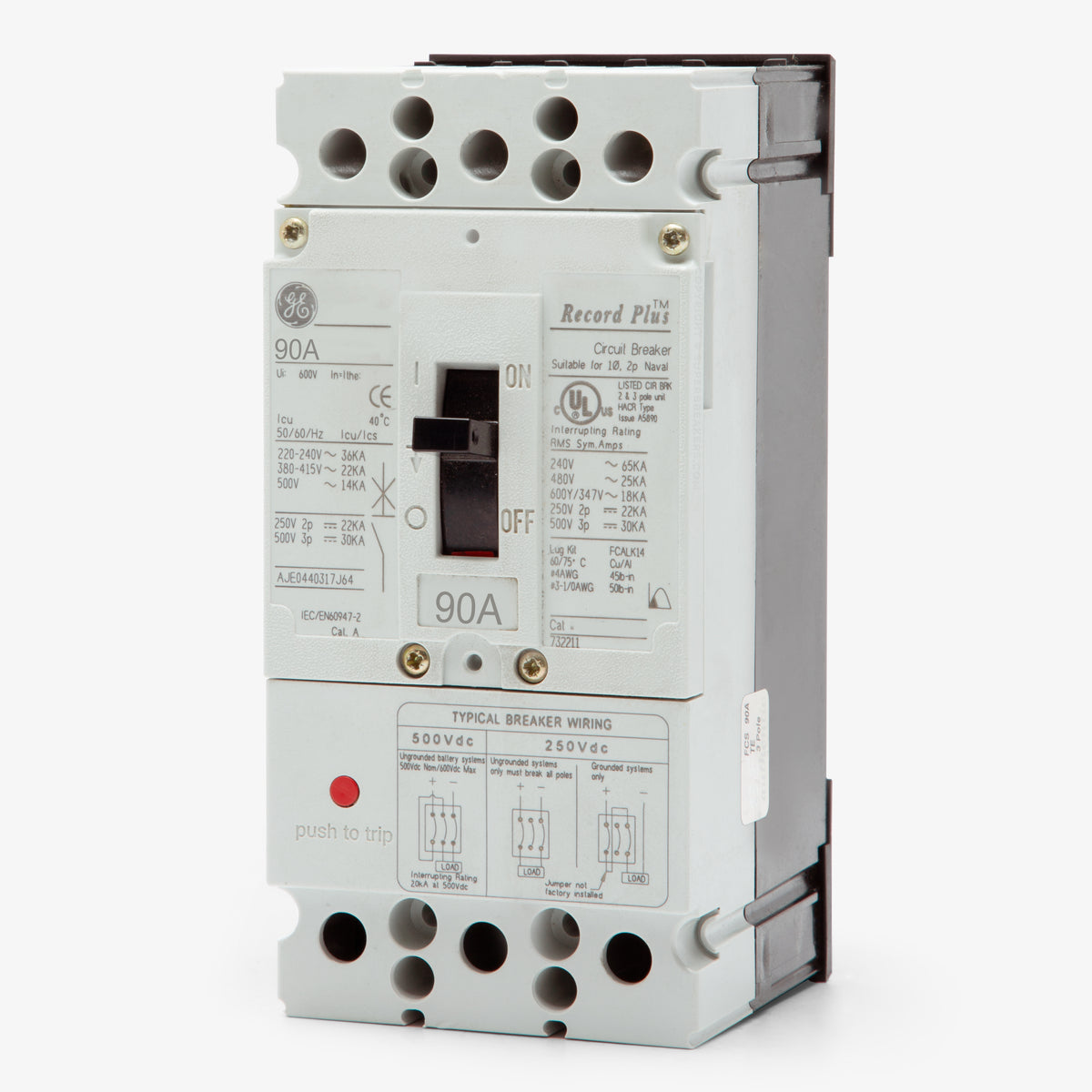

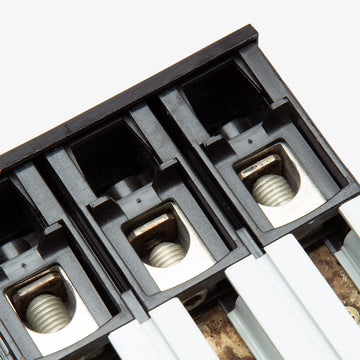

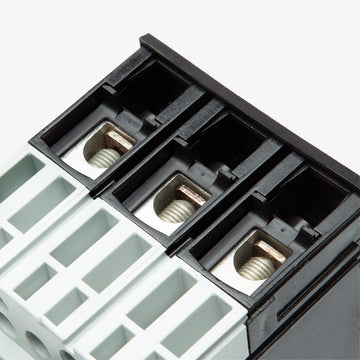

ABB / General Electric FCS36TE090R - 90A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricFCS36TE040R
40A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricFCS36TE030R
30A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricFCS36TE020R
20A 3 Pole Molded Case Circuit Breaker
Description
Completing the mid-range FCS lineup, the GE FCS36TE090R delivers 90-amp, 3-pole thermal magnetic protection in the Record Plus platform. Interrupting ratings reach 65kA at 240VAC, 25kA at 480VAC, and 18kA at 600Y/347VAC for high available fault current environments. The unit mount configuration fits Record Plus panelboards and switchboards. Current limiting capability and HACR rating support heating, air conditioning, and refrigeration circuits. This unit is replaced by the ABB XT1NU3090AFF000XXX.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | FCS36TE090R |
| Series | FCS |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600Y/347VAC, 10kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE Record Plus Panelboards, Switchboards |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Lug Kits (FCALK), Rotary Handle, Padlock Attachment |
|---|---|
| Accessories | Lugs Not Included, Mounting Hardware |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, cULus, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated, Double-Break Rotary Contact Structure |
Product FAQs
7 answersCan I install this breaker in a standard GE A-Series panelboard?
No, the FCS36TE090R is exclusively designed for GE Record Plus panelboards and switchboards. It will not fit in older A-Series or Spectra Series enclosures.
What lug kit is required for wiring this FC frame breaker?
For 70A to 100A Record Plus FC frame breakers, the GE FCAL14 single lug kit is typically required. It accepts 4 to 1/0 AWG conductors.
Does this breaker mount to a standard DIN rail?
No, the FCS36TE090R requires a bolt-on connection directly to the bus in compatible Record Plus panelboards and switchboards.
What is the modern ABB replacement for this legacy GE breaker?
ABB has transitioned the GE Record Plus line to the Tmax XT series. The direct replacement for this 90A model is catalog number XT1NU3090AFF000XXX.
Does the FCS36TE090R offer current-limiting capabilities?
Yes, the Record Plus FC frame utilizes a double-break rotary contact design that delivers current-limiting performance to protect downstream equipment during high fault conditions.
What is the maximum frame size for this breaker family?
The FCS36TE090R is built on the Record Plus FC frame, which has a maximum physical capacity of 100 amps.
Is this breaker rated for commercial HVAC equipment?
Yes, it carries an HACR rating, meaning it is tested and approved for safe use with heating, air conditioning, and refrigeration circuits.
