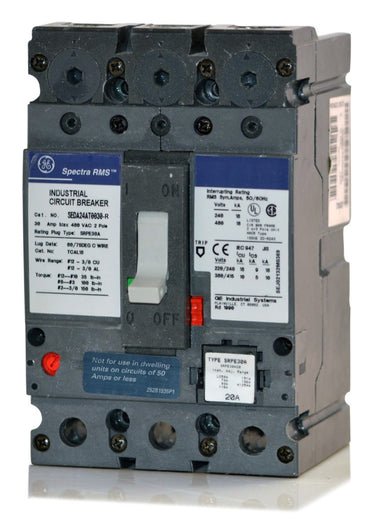

ABB / General Electric SEDA24AT0030 Molded Case Circuit Breaker
- 30A
- 2 Pole
- Unit Mount
ABB / General Electric
SEDA24AT0030
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
SEDA24AT0030
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric SEDA24AT0030 - 30A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricSEDA24AT0100
100A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricSEDA24AT0150
150A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricSELA24AT0030
30A 2 Pole Molded Case Circuit Breaker
Description
Built for industrial applications, the 30A SEDA24AT0030 is an electronic trip MCCB from GE's Spectra RMS family. It utilizes solid-state technology to deliver highly accurate circuit protection. This unit-mount breaker installs into GE Spectra Series panelboards and motor control centers. For modern upgrades, it is replaced by the XT4NU2030TFF000XXX, which requires a retrofit kit for integration. Rated 18kAIC at 480VAC, it features true RMS sensing and adjustable LSI functions.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | SEDA24AT0030 |
| Series | SEDA |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 120VAC, 240VAC, 277VAC, 480VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 18kA @ 120VAC, 18kA @ 240VAC, 18kA @ 277VAC, 18kA @ 480VAC, 18kA @ 120/240VAC |
| Frame Type | SEDA |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE Spectra Series Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 12 AWG - 3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 12 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSI |
| Trip Function | Long-Time, Short-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Lug Kits, Rating Plugs |
|---|---|
| Accessories | Rating Plug (Included), Lugs Sold Separately |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | True RMS Sensing, Reverse Feed, HACR Rated, Current Limiting |
Product FAQs
5 answersWhat equipment is the SEDA24AT0030 compatible with?
This SE-frame breaker is designed for use in GE Spectra Series panelboards, switchboards, and motor control centers.
What does the LSI trip function indicate on this Spectra RMS breaker?
LSI stands for Long-Time, Short-Time, and Instantaneous trip functions. This electronic trip unit allows precise coordination and adjustability for overload and short-circuit protection compared to standard thermal-magnetic breakers.
What wire sizes are accepted by the lugs on the SEDA24AT0030?
The factory lugs accept aluminum or copper wire ranging from 12 AWG to 3/0 AWG. Always verify the specific torque requirements printed on the breaker faceplate before terminating conductors.
Why is this breaker listed under both ABB and General Electric?
ABB acquired GE Industrial Solutions in 2018. Spectra RMS breakers like the SEDA24AT0030 may feature either GE or ABB branding depending on the manufacturing date, but they retain the exact same physical and electrical characteristics.
How is the SEDA24AT0030 installed in a panel?
This is a unit mount, bolt-on circuit breaker. It requires bolted connections directly to the equipment busbar and cannot be used in standard plug-on load centers.
