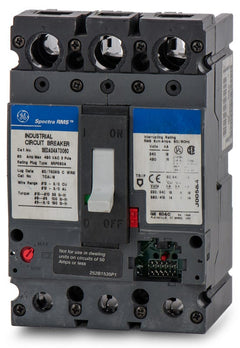

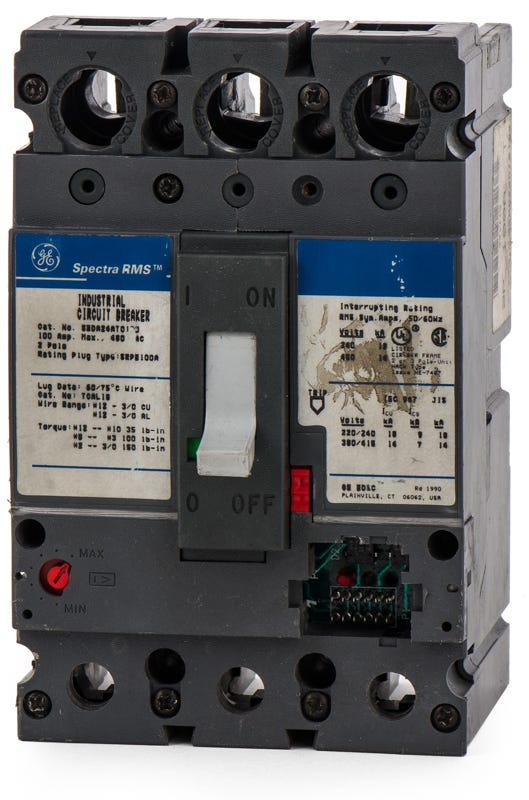

ABB / General Electric SEDA24AT0100 Molded Case Circuit Breaker
- 100A
- 2 Pole
- Unit Mount
ABB / General Electric
SEDA24AT0100
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
SEDA24AT0100
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric SEDA24AT0100 - 100A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric SEDA24AT0100 - 100A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | SEDA24AT0100-R |
| Series | SEDA |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 120VAC, 240VAC, 277VAC, 480VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 18kA @ 120VAC, 18kA @ 240VAC, 18kA @ 277VAC, 18kA @ 480VAC, 18kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE Spectra Series Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 12 AWG - 3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 12 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSI |
| Trip Function | Long-Time, Short-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Lug Kits, Rating Plugs |
|---|---|
| Accessories | Rating Plug (Included), Lugs Sold Separately |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | True RMS Sensing, Reverse Feed, HACR Rated, Current Limiting |
