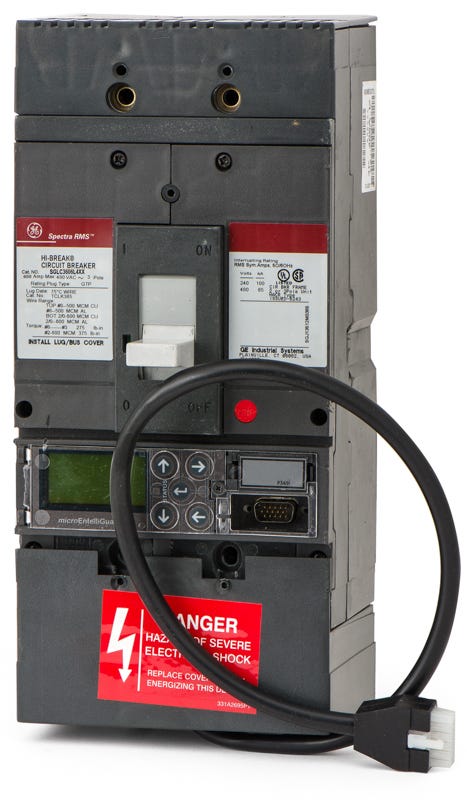

ABB / General Electric SGLC3606L4XX Molded Case Circuit Breaker
- 600A
- 3 Pole
- Unit Mount
ABB / General Electric
SGLC3606L4XX
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
SGLC3606L4XX
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric SGLC3606L4XX - 600A 3 Pole Molded Case Circuit Breaker
New
Quantity
Sold out
Quantity
ABB / General Electric SGLC3606L4XX - 600A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | SGLC3606L4XX |
| Series | SGLC |
| Amperage | 600A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 277VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 277VAC, 65kA @ 480VAC, 65kA @ 600VAC |
| Amperage Range | 300-600A |
|---|
| Frame Type | SGLC |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE Spectra Series Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | (2) 2/0 AWG-500 kcmil (Cu/Al) |
| Max Wire | 500 kcmil |
| Min Wire | 2/0 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSIG |
| Trip Function | Long-Time, Short-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Adjustable |
| Trip Unit Model | microEntelliGuard |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Lug Kit, Motor Operator, Padlock Attachment |
|---|---|
| Accessories | Rating Plug Included, Lugs Not Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, HACR |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated, Reverse Feed, True RMS Sensing, Interchangeable Rating Plug, 100% Rated |
Sold out
Quantity
ABB / General Electric SGLC3606L4XX - 600A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Series | SGLC |
| Amperage | 600A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 277VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 277VAC, 65kA @ 480VAC, 65kA @ 600VAC |
| Amperage Range | 300-600A |
|---|
| Frame Type | SGLC |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE Spectra Series Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | (2) 2/0 AWG-500 kcmil (Cu/Al) |
| Max Wire | 500 kcmil |
| Min Wire | 2/0 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSIG |
| Trip Function | Long-Time, Short-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Adjustable |
| Trip Unit Model | microEntelliGuard |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Lug Kit, Motor Operator, Padlock Attachment |
|---|---|
| Accessories | Rating Plug Included, Lugs Not Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, HACR |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated, Reverse Feed, True RMS Sensing, Interchangeable Rating Plug, 100% Rated |
Similar Items
ABB / General ElectricSGLC3604L7XX
400A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricSGLC3604L4XX
400A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricSGLA36AT0600
600A 3 Pole Molded Case Circuit Breaker Frame Only
Description
Built for robust commercial power systems, the GE SGLC3606L4XX provides 600A of circuit protection with true RMS sensing. This Spectra RMS breaker offers precise coordination advantages over standard thermal magnetic units. The unit-mount MCCB integrates into GE Spectra Series panelboards, switchboards, and motor control centers. For modernizing older infrastructure, this SG frame is replaced by the ABB Tmax XT5. It features a 65kAIC rating at 480V and adjustable LSIG functions.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | SGLC3606L4XX |
| Series | SGLC |
| Amperage | 600A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 277VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 277VAC, 65kA @ 480VAC, 65kA @ 600VAC |
| Amperage Range | 300-600A |
|---|
| Frame Type | SGLC |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE Spectra Series Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | (2) 2/0 AWG-500 kcmil (Cu/Al) |
| Max Wire | 500 kcmil |
| Min Wire | 2/0 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSIG |
| Trip Function | Long-Time, Short-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Adjustable |
| Trip Unit Model | microEntelliGuard |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Lug Kit, Motor Operator, Padlock Attachment |
|---|---|
| Accessories | Rating Plug Included, Lugs Not Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, HACR |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated, Reverse Feed, True RMS Sensing, Interchangeable Rating Plug, 100% Rated |
Product FAQs
6 answersWhat panelboards are compatible with the SGLC3606L4XX?
This SG-frame breaker is designed for installation in GE Spectra Series panelboards, switchboards, and motor control centers.
Is the GE Spectra SGLC3606L4XX still in active production?
ABB acquired GE Industrial Solutions and is phasing out the legacy Spectra RMS series. The modern equivalent for the 600A SG frame is the ABB Tmax XT5, which can be installed in existing Spectra equipment using an ABB retrofit kit.
What wire sizes do the terminals on this breaker accept?
The included lugs accommodate two 2/0 AWG to 500 kcmil copper or aluminum conductors per phase.
What does the LSIG trip function provide on this breaker?
LSIG indicates that the electronic trip unit includes adjustable Long-Time, Short-Time, Instantaneous, and Ground-Fault protection. This allows panel builders to precisely coordinate the breaker with other protective devices in the system.
Can the SGLC3606L4XX be reverse fed?
Yes, GE Spectra RMS circuit breakers with electronic trip units are UL Listed for reverse feed applications.
Are internal accessories interchangeable between the SGLC3606L4XX and other Spectra breakers?
Yes, the GE Spectra RMS line uses common internal accessories. Devices like shunt trips, auxiliary switches, and undervoltage releases are universal across the different Spectra frame sizes.
