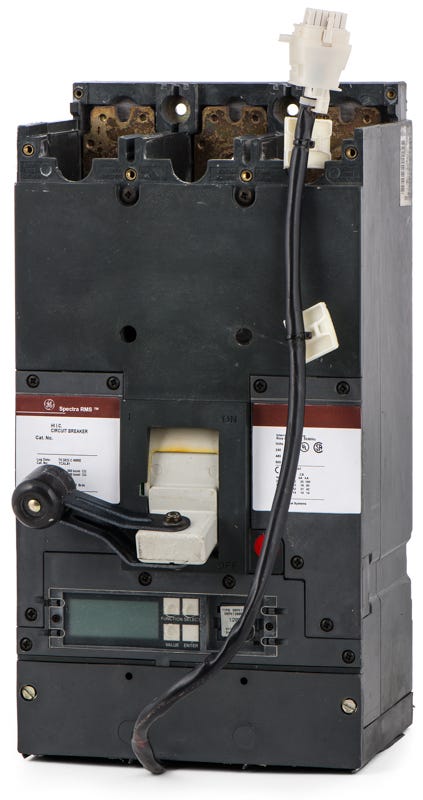

ABB / General Electric SKHC3608L3XX Molded Case Circuit Breaker
- 800A
- 3 Pole
- Unit Mount
ABB / General Electric
SKHC3608L3XX
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
SKHC3608L3XX
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric SKHC3608L3XX - 800A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricSKHA36AT0800
800A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricSKLL3608L4XX
800A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricSKLA36AT0800
800A 3 Pole Molded Case Circuit Breaker Frame Only
Description
Designed for reliable power distribution, the GE SKHC3608L3XX is a 3-pole electronic trip molded case circuit breaker. As part of the Spectra RMS family, it offers reverse feed capability and a 100% continuous current rating. This unit mount breaker is compatible with GE A-Series panelboards and Spectra Series switchboards. With an interrupting capacity of 35 kAIC at 480VAC, the interchangeable electronic trip unit features adjustable LSI functions for precise system coordination.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | SKHC3608L3XX |
| Series | SKHC |
| Amperage | 800A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 25kA @ 600VAC |
| Amperage Range | 400-800A |
|---|
| Frame Type | SKHC |
|---|---|
| Terminal Type | Lugs |
| For Use With | Spectra Series Switchboards, Panelboards, Motor Control Centers, GE A-Series Panelboards |
| Wire Gauge | 3/0 AWG-500 kcmil (Al/Cu) (Qty 3 per pole) - if TCAL81 lugs installed |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSI |
| Trip Function | Long-Time, Short-Time, Instantaneous |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Padlock Attachment, Motor Operator, Rotary Handle, Lug Kits, Rating Plugs |
|---|---|
| Accessories | Lugs Not Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | -20C to 55C |
| Construction Features | 100% Rated, Reverse Feed, HACR Rated, True RMS Sensing, Interchangeable Trip Unit |
Product FAQs
6 answersWhat is the required torque for the TCAL81 lugs on this breaker?
The factory-installed TCAL81 lugs require a tightening torque of 375 lb-in. Each lug accepts three 3/0 AWG to 500 kcmil aluminum or copper conductors per pole.
Which rating plug is required for the SKHC3608L3XX?
This SK-frame breaker requires an SRPK800A series interchangeable rating plug, such as the SRPK800A800, to establish the 800A continuous current rating.
Can the SKHC3608L3XX be reverse fed?
Yes, GE Spectra RMS molded case circuit breakers are suitable for reverse feed applications.
How does the short-time trip function operate on this Spectra RMS breaker?
The short-time pickup is not an independent absolute setting. It tracks the adjustable instantaneous pickup by a fixed ratio of 0.5 to 0.8, which is standard for the Spectra RMS solid-state trip system.
What equipment is this SK-frame breaker designed to fit?
The SKHC3608L3XX is compatible with GE Spectra Series switchboards, motor control centers, and GE A-Series panelboards.
What does the L in the SKHC3608L3XX catalog number indicate?
The L designates that the breaker is equipped with a solid-state electronic trip unit featuring Long-Time, Short-Time, and Instantaneous (LSI) protection functions.
