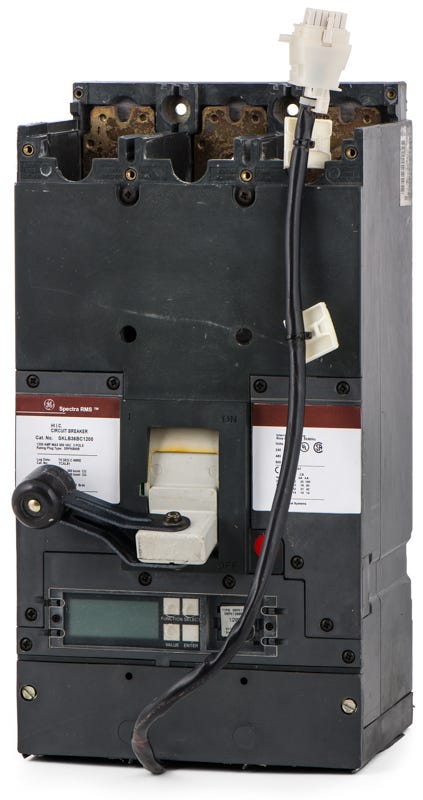

ABB / General Electric SKLB36BC1200 Molded Case Circuit Breaker
- 1200A
- 3 Pole
- Unit Mount
ABB / General Electric
SKLB36BC1200
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
SKLB36BC1200
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric SKLB36BC1200 - 1200A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
ABB / General Electric SKLB36BC1200 - 1200A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | SKLB36BC1200 |
| Series | SKLB |
| Amperage | 1200A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 42kA @ 600VAC |
| Amperage Range | 600-1200A |
|---|
| Terminal Type | Lugs |
|---|---|
| For Use With | GE Spectra Series Switchboards, GE A-Series Panelboards, Motor Control Centers |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Adjustable |
| Available Options | Lug Kit, Rating Plugs, Shunt Trip, Auxiliary Switch, Bell Alarm, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | MicroVersaTrip Plus Trip Unit |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | True RMS Sensing, Interchangeable Trip Unit, Visual Trip Indicator, Reverse Feed |
Quantity
ABB / General Electric SKLB36BC1200 - 1200A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | SKLB36BC1200-R |
| Series | SKLB |
| Amperage | 1200A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 42kA @ 600VAC |
| Amperage Range | 600-1200A |
|---|
| Terminal Type | Lugs |
|---|---|
| For Use With | GE Spectra Series Switchboards, GE A-Series Panelboards, Motor Control Centers |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Adjustable |
| Available Options | Lug Kit, Rating Plugs, Shunt Trip, Auxiliary Switch, Bell Alarm, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | MicroVersaTrip Plus Trip Unit |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | True RMS Sensing, Interchangeable Trip Unit, Visual Trip Indicator, Reverse Feed |
Similar Items
3 Pole Circuit Breaker
ABB / General ElectricSKLC3612L4XX
1200A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricSKLC3612L5XX
1200A 3 Pole Molded Case Circuit Breaker
Description
Engineered for heavy-duty commercial and industrial applications, this 1200A unit mount breaker provides advanced LIG (Long-Time, Instantaneous, Ground Fault) protection. It integrates seamlessly into GE Spectra Series switchboards, A-Series panelboards, and motor control centers. Featuring true RMS sensing and interchangeable rating plugs, the SK-frame breaker delivers precise coordination. Note that this legacy component is replaced by the ABB Tmax XT7 series using a specific retrofit kit.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | SKLB36BC1200-R |
| Series | SKLB |
| Amperage | 1200A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 42kA @ 600VAC |
| Amperage Range | 600-1200A |
|---|
| Terminal Type | Lugs |
|---|---|
| For Use With | GE Spectra Series Switchboards, GE A-Series Panelboards, Motor Control Centers |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Adjustable |
| Available Options | Lug Kit, Rating Plugs, Shunt Trip, Auxiliary Switch, Bell Alarm, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | MicroVersaTrip Plus Trip Unit |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | True RMS Sensing, Interchangeable Trip Unit, Visual Trip Indicator, Reverse Feed |
Product FAQs
6 answersWhat does the LIG designation on the SKLB36BC1200 trip unit mean?
It indicates the electronic trip unit provides adjustable Long-time overload, Instantaneous short-circuit, and Ground-fault protection. The included ground-fault sensing is essential for commercial equipment protection and is often required by electrical code on main services rated 1000A or higher.
Can incoming power be connected to the bottom terminals of the SKLB36BC1200?
Yes, this Spectra RMS series breaker is fully suitable for reverse fed applications, allowing you to supply incoming line power to either the top or bottom lugs safely.
Can I install this breaker in standard GE load centers?
No, the 1200A SK frame is physically too large for standard residential or light commercial load centers. It is specifically engineered to mount in heavy-duty GE Spectra Series Switchboards, A-Series Panelboards, and compatible Motor Control Centers.
Does this electronic breaker require a separate rating plug to operate?
Yes, all GE Spectra SK frame electronic breakers require an interchangeable rating plug to set the active continuous amp rating. To operate this specific breaker at its full 1200A capacity, you will need the matching SRPK1200A1200 rating plug installed.
Are field accessories supported on the SKLB36BC1200?
Yes, the SK frame supports various field-installable internal accessories, including shunt trips, auxiliary switches, and undervoltage releases. These are designed to drop in behind the front accessory cover without breaking the factory mechanism seal.
Why is this Spectra breaker branded as both ABB and General Electric?
The Spectra RMS line was originally developed by General Electric. After ABB acquired GE Industrial Solutions, they maintained production and support for this legacy architecture, so the components are now distributed and listed under the combined ABB / General Electric brand.
