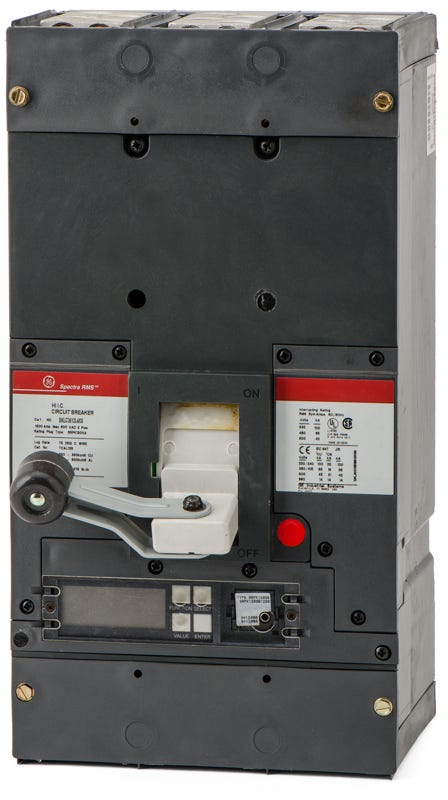

ABB / General Electric SKLC3612L4XX Molded Case Circuit Breaker
- 1200A
- 3 Pole
- Bolt-On
ABB / General Electric
SKLC3612L4XX
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
SKLC3612L4XX
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric SKLC3612L4XX - 1200A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricSKLC3612L7XX
1200A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricSKLB36BB1200
1200A 3 Pole Molded Case Circuit Breaker-Frame Only
ABB / General ElectricSKLB36BC1200
1200A 3 Pole Molded Case Circuit Breaker
Description
Engineered for heavy-duty commercial and industrial power distribution, the GE SKLC3612L4XX operates as a 1200A, 3-pole molded case circuit breaker. It mounts into GE Spectra Series panelboards and switchboards, and can be replaced by the ABB Tmax XT7 using a retrofit kit. This SK-frame breaker is equipped with an advanced microEntelliGuard electronic trip unit, delivering highly configurable LSIG protection. It provides a robust 65kAIC interrupting rating at 480VAC.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | SKLC3612L4XX |
| Series | SKLC |
| Amperage | 1200A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 277VAC, 480VAC, 600VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 120VAC, 100kA @ 240VAC, 65kA @ 277VAC, 65kA @ 480VAC, 42kA @ 600VAC, 100kA @ 120/240VAC |
| Amperage Range | 600-1200A |
|---|
| Terminal Type | Lugs |
|---|---|
| For Use With | GE Spectra Series Panelboards, GE Spectra Series Switchboards, GE Motor Control Centers |
| Wire Gauge | (4) 250-500 kcmil (Cu/Al) |
| Max Wire | 500 kcmil |
| Min Wire | 250 kcmil |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSIG |
| Trip Function | Long-Time, Short-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Lug Kits, Rating Plugs, Padlock Attachment |
|---|---|
| Accessories | microEntelliGuard Trip Unit |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Current Limiting, True RMS Sensing, Interchangeable Trip Unit |
Product FAQs
6 answersCan the SKLC3612L4XX be reverse fed?
Yes, this molded case circuit breaker is suitable for reverse fed applications, allowing power to be supplied to the bottom terminals instead of the top without affecting the trip unit performance.
What size wire do the lugs on this 1200A breaker accept?
The terminal lugs are designed to accept four conductors per phase. They accommodate copper or aluminum wire ranging from 250 kcmil to 500 kcmil.
How does the microEntelliGuard LSIG trip unit function?
The LSIG electronic trip unit provides fully adjustable Long-Time, Short-Time, Instantaneous, and Ground-Fault protection. This allows panel builders to precisely coordinate the breaker with other protective devices in complex electrical distribution systems.
Does this breaker support facility power monitoring?
Yes, the integrated microEntelliGuard trip unit features basic metering communication capabilities, allowing for integration with building management or power monitoring networks.
Which enclosures and boards accept this SK frame breaker?
This bolt-on breaker is specifically designed for direct installation into GE Spectra Series Panelboards, GE Spectra Series Switchboards, and GE Motor Control Centers.
Why is this breaker listed as ABB / General Electric?
ABB acquired GE Industrial Solutions. As a result, Spectra Series components like this SKLC frame may feature either GE or ABB labels, but they are exact drop-in replacements with identical fit and function.
