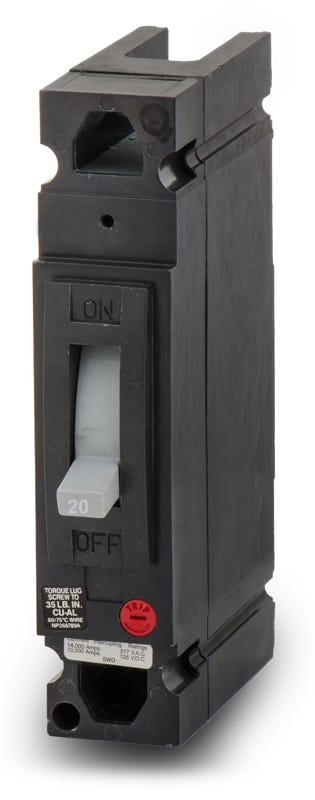

ABB / General Electric TEB111020WL Molded Case Circuit Breaker
- 20A
- 1 Pole
- Unit Mount
ABB / General Electric
TEB111020WL
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TEB111020WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TEB111020WL - 20A 1 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric TEB111020WL - 20A 1 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEB111020WL |
| Series | TEB |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Unit Mount |
| Voltage | 120VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC, 5kA @ 125VDC |
| Frame Type | TEB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 3 AWG (Cu), 1 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Line & Load Lugs (TCAL12) |
| Standards | HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Quantity
ABB / General Electric TEB111020WL - 20A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEB111020WL |
| Series | TEB |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Unit Mount |
| Voltage | 120VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC, 5kA @ 125VDC |
| Frame Type | TEB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 3 AWG (Cu), 1 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Line & Load Lugs (TCAL12) |
| Standards | HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Similar Items
ABB / General ElectricTEB132020WL
20A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTEB111020
20A 1 Pole Molded Case Circuit Breaker
ABB / General ElectricTED113020
20A 1 Pole Molded Case Circuit Breaker
Description
Built for commercial applications, the GE TEB111020WL is a 1-pole, 20A molded case circuit breaker from the legacy E150 series. It provides essential long-time and instantaneous (LI) trip functions. This unit-mount breaker features a feed-thru design and comes equipped with line and load lugs (TCAL12). It is engineered for standard enclosures and switchboards. Rated for 10kAIC at 120VAC, the breaker is HACR rated and suitable for reverse feed applications.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEB111020WL |
| Series | TEB |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Unit Mount |
| Voltage | 120VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC, 5kA @ 125VDC |
| Frame Type | TEB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 3 AWG (Cu), 1 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Line & Load Lugs (TCAL12) |
| Standards | HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
6 answersWhat does the WL suffix mean on the TEB111020WL catalog number?
The WL suffix indicates that the circuit breaker is factory-equipped with both line and load side lugs for straight-in wiring.
What frame size is the TEB111020WL?
This breaker belongs to the legacy GE E150 line, commonly referred to as an E-frame molded case circuit breaker.
Is the TEB111020WL suitable for reverse feed applications?
Yes, GE TEB series breakers are suitable for reverse feed installations, allowing power to be supplied to either the line or load terminals.
Does this breaker carry an HACR rating?
Yes, the TEB111020WL is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment branch circuits.
How does a unit-mount breaker like the TEB111020WL install?
As a unit-mount, feed-thru breaker, it is designed to be individually mounted and hardwired via its line and load lugs rather than plugging onto a panelboard bus. It is typically installed in standard enclosures, switchboards, or motor control centers.
Does this breaker feature a trip-free mechanism?
Yes, it utilizes a trip-free mechanism that ensures the breaker will trip and open the circuit during a fault condition, even if the operating handle is physically held in the ON position.
