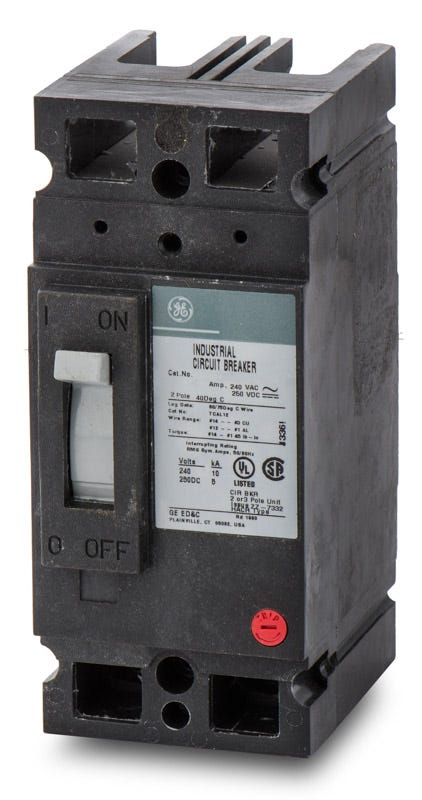

ABB / General Electric TEB122040 Molded Case Circuit Breaker
- 40A
- 2 Pole
- Bolt-On
ABB / General Electric
TEB122040
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TEB122040
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TEB122040 - 40A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric TEB122040 - 40A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEB122040 |
| Series | TEB |
| Amperage | 40A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 125/250VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 125/250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 3 AWG (Cu), 1 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Lugs (TCAL12) |
| Standards | HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Reverse Feed, Common Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Sold out
Quantity
ABB / General Electric TEB122040 - 40A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEB122040-R |
| Series | TEB |
| Amperage | 40A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 125/250VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 125/250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 3 AWG (Cu), 1 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Lugs (TCAL12) |
| Standards | HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Reverse Feed, Common Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Similar Items
ABB / General ElectricTEB122050
50A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTEB122030
30A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTEB122060
60A 2 Pole Molded Case Circuit Breaker
Description
Designed for commercial systems, the GE TEB122040 is a 40-amp, 2-pole molded case circuit breaker. It provides essential thermal magnetic protection for branch circuits in demanding environments. This E-Frame breaker mounts into standard GE A-Series panelboards and serves as a replacement for discontinued TE122040 models. It is also a suitable alternative to TEY122040 breakers. Operating at 240VAC with a 10kAIC rating, it features a common trip mechanism and reverse feed capability.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEB122040 |
| Series | TEB |
| Amperage | 40A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 125/250VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 125/250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 3 AWG (Cu), 1 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Lugs (TCAL12) |
| Standards | HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Reverse Feed, Common Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
6 answersWhat panelboards are compatible with the TEB122040 circuit breaker?
This E-Frame breaker is designed for bolt-on installation in GE A-Series panelboards. It is also commonly installed in compatible GE switchboards and motor control centers.
Are GE and ABB TEB122040 breakers interchangeable?
Yes. Following ABB's acquisition of GE Industrial Solutions, E-150 line breakers may be branded as either GE or ABB. They share the exact same physical dimensions and catalog number for direct replacement.
Can the TEB122040 replace older discontinued GE breakers?
Yes, the TEB122040 serves as a direct replacement for discontinued TE122040 models. It is also a suitable alternative to TEY122040 breakers when installed in compatible A-Series panelboards.
What is the recommended torque for the lug terminals on this E-150 frame breaker?
Torque specifications depend on the wire size used with the standard TCAL lugs. Tighten 10-14 AWG wire to 35 in-lb, and 3-8 AWG wire to 100 in-lb using a 7/32-inch Allen wrench.
Which lug kits are compatible with the TEB122040?
This E-150 frame breaker typically utilizes TCAL14 or TCAL18 lug kits for line and load side terminations, depending on the required wire size. These lugs accept both copper and aluminum conductors.
Is the TEB122040 suitable for reverse feed applications?
Yes, this standard thermal-magnetic molded case circuit breaker features a common trip mechanism and is capable of reverse feeding.
