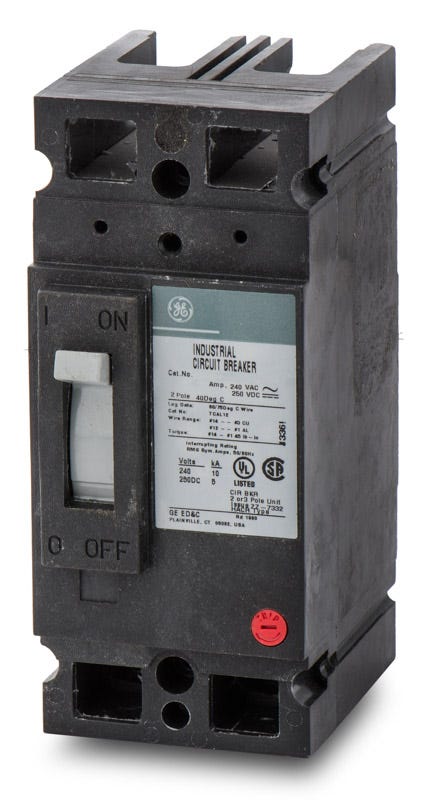

ABB / General Electric TEB122030 Molded Case Circuit Breaker
- 30A
- 2 Pole
- Bolt-On
ABB / General Electric
TEB122030
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TEB122030
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TEB122030 - 30A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric TEB122030 - 30A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEB122030 |
| Series | TEB |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 125/250VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 125/250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards |
| Wire Gauge | 14-8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Lugs (TCAL14) |
| Standards | NEMA AB-1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Common Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Visual Trip Indicator |
Sold out
Quantity
ABB / General Electric TEB122030 - 30A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEB122030-R |
| Series | TEB |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 125/250VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 125/250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards |
| Wire Gauge | 14-8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Lugs (TCAL14) |
| Standards | NEMA AB-1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Common Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Visual Trip Indicator |
Similar Items
ABB / General ElectricTEB122040
40A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTEB122020
20A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTEB122015
15A 2 Pole Molded Case Circuit Breaker
Description
Delivering robust overcurrent protection, the GE TEB122030 is a 2-pole, 30A molded case circuit breaker rated for 240VAC. It features a non-interchangeable thermal-magnetic trip unit, reverse feed capability, and a 10kAIC interrupting rating to handle demanding commercial electrical loads. This unit installs easily into GE A-Series and Spectra Series panelboards via secure bolt-on connections. It serves as an exact replacement for discontinued TE122030 and TED122030 models.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEB122030 |
| Series | TEB |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 125/250VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 125/250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards |
| Wire Gauge | 14-8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Lugs (TCAL14) |
| Standards | NEMA AB-1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Common Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Visual Trip Indicator |
Product FAQs
7 answersWhat panelboards are compatible with the TEB122030?
This E-frame circuit breaker is designed for installation in GE A-Series panelboards and GE Spectra Series panelboards. Always check your specific panelboard label to confirm it accepts TEB series breakers.
What type of line and load connections does this breaker use?
The TEB122030 features a bolt-on connection for the line side to attach directly to the panel bus, and standard wire lugs on the load side.
What gauge of wire is required for the load lugs?
The load lugs accept a wire range of 14 AWG to 8 AWG. They are rated for use with both copper (Cu) and aluminum (Al) conductors.
Why is this breaker listed as both ABB and General Electric?
ABB acquired GE Industrial Solutions in 2018. Many legacy General Electric molded case circuit breakers, including the TEB series, are now manufactured and supported under the ABB brand while retaining full backward compatibility with existing GE equipment.
Can the TEB122030 be used for direct current (DC) systems?
Yes, this breaker is rated for DC applications. It provides a 5kAIC interrupting rating at 125V or 250V DC.
Is the thermal magnetic trip unit adjustable on this model?
No, the TEB122030 features fixed thermal and fixed magnetic trip settings. It provides standard long-time and instantaneous (LI) protection without user adjustability.
How does the internal trip mechanism respond to overcurrents?
The thermal element responds to prolonged overloads by heating up and tripping the breaker, while the magnetic element trips instantaneously in the event of a severe short circuit to isolate the fault and protect the conductors.
