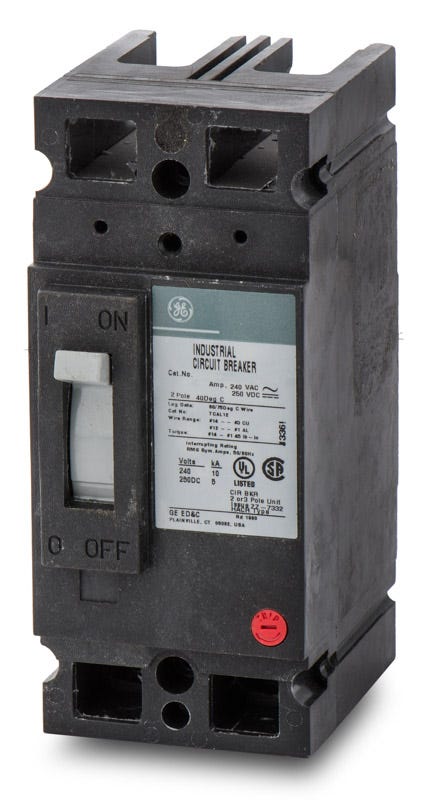

ABB / General Electric TEB122100 Molded Case Circuit Breaker
- 100A
- 2 Pole
- Bolt-On
ABB / General Electric
TEB122100
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TEB122100
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TEB122100 - 100A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric TEB122100 - 100A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEB122100 |
| Series | TEB |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 125/250VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 125/250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 6 AWG - 2/0 AWG (Cu), 4 AWG - 2/0 AWG (Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Common Trip, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Sold out
Quantity
ABB / General Electric TEB122100 - 100A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEB122100-R |
| Series | TEB |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 125/250VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 125/250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 6 AWG - 2/0 AWG (Cu), 4 AWG - 2/0 AWG (Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Common Trip, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Similar Items
ABB / General ElectricTEB122080
80A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTEB122070
70A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTEB122060
60A 2 Pole Molded Case Circuit Breaker
Description
Part of the legacy E-frame family, this 100-amp device offers proven thermal-magnetic protection for commercial facilities. It integrates smoothly into A-Series panelboards using standard bolt-on mounting hardware. The unit replaces older TE122100 models while maintaining identical footprint and performance specifications. Equipment benefits from a 10kA interrupting capacity at 240VAC, along with HACR certification for heating and cooling branch circuits.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEB122100 |
| Series | TEB |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 125/250VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 125/250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 6 AWG - 2/0 AWG (Cu), 4 AWG - 2/0 AWG (Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Common Trip, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
6 answersWhat is the difference between GE TEB, TED, and THED circuit breakers?
TEB, TED, and THED breakers all share the same physical E150 frame footprint and are interchangeable, but they have different interrupting capacities. The TEB is the standard tier (10kAIC at 240VAC), the TED is the mid-tier (18kAIC at 240/480VAC), and the THED is the high-tier (65kAIC at 240VAC). You must verify your system's available fault current before substituting.
Which panelboards are compatible with the TEB122100 breaker?
This E-frame breaker is designed for use in GE A-Series panelboards, as well as compatible GE switchboards, motor control centers, and lighting panels that accept bolt-on E150 line breakers.
Does the TEB122100 come with line and load lugs?
The standard TEB122100 catalog number includes load-side lugs only. If your installation requires both line and load lugs, you will need the TEB122100WL variant or must purchase the line lugs separately.
Is the TEB122100 suitable for reverse-feed applications?
Yes, GE TEB, TED, and THED molded case circuit breakers are suitable for reverse feeding, as they do not have line and load side restrictions for power flow.
Can the TEB122100 be used in DC circuits?
Yes, this thermal-magnetic breaker is rated for DC applications up to 125/250VDC with a maximum interrupting capacity of 5kAIC.
Is this breaker HACR rated for HVAC equipment?
Yes, the TEB122100 is HACR rated, making it suitable for protecting heating, air conditioning, and refrigeration branch circuits.
