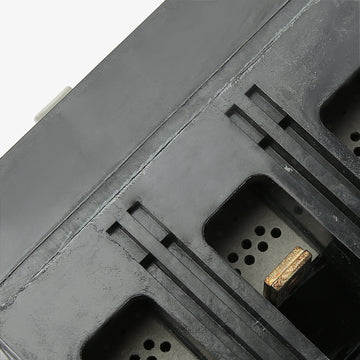

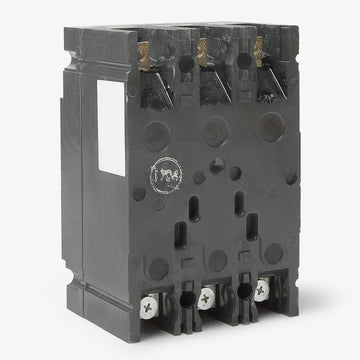

ABB / General Electric TEB132035WL Molded Case Circuit Breaker
- 35A
- 3 Pole
- Unit Mount
ABB / General Electric
TEB132035WL
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TEB132035WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TEB132035WL - 35A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric TEB132035WL - 35A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEB132035WL |
| Series | TEB |
| Amperage | 35A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Individual Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 8-3 AWG (Cu/Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Rotary Handle, Lug Kits |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip, Reverse Feed, Quick-Make/Quick-Break, Trip-Free Mechanism, 50C Ambient Calibration |
Quantity
ABB / General Electric TEB132035WL - 35A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEB132035WL-R |
| Series | TEB |
| Amperage | 35A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Individual Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 8-3 AWG (Cu/Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Rotary Handle, Lug Kits |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip, Reverse Feed, Quick-Make/Quick-Break, Trip-Free Mechanism, 50C Ambient Calibration |
Similar Items
ABB / General ElectricTEB132030WL
30A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTEB132045WL
45A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTEB132025WL
25A 3 Pole Molded Case Circuit Breaker
Description
Operating as a standalone unit-mount device, this 35A molded case circuit breaker comes equipped with line and load lugs for flexible installation. It fits into individual enclosures, switchboards, and motor control centers requiring reliable thermal-magnetic protection. The three-pole E-frame component delivers a 10kA interrupting rating at 240VAC and features a 50C ambient calibration. Its non-interchangeable trip mechanism ensures consistent performance in demanding industrial environments.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEB132035WL |
| Series | TEB |
| Amperage | 35A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Individual Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 8-3 AWG (Cu/Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Rotary Handle, Lug Kits |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip, Reverse Feed, Quick-Make/Quick-Break, Trip-Free Mechanism, 50C Ambient Calibration |
Product FAQs
6 answersWill the TEB132035WL breaker arrive with ABB or General Electric branding?
Following the acquisition of GE Industrial Solutions by ABB, this E150 Line circuit breaker may feature either ABB or GE branding. The physical dimensions, mounting, and electrical specifications remain identical regardless of the label.
What does the WL suffix indicate on the TEB132035WL catalog number?

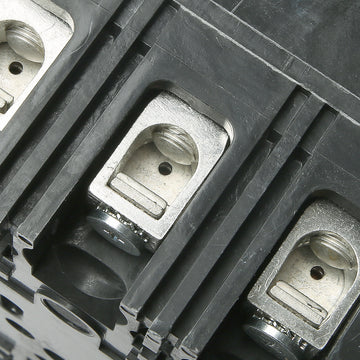

The WL suffix specifies that the breaker includes factory-installed line and load side lugs. These lugs are rated for both copper and aluminum conductors.
Can the TEB132035WL be used in reverse feed applications?
Yes, GE TEB series molded case circuit breakers are suitable for reverse feed wiring. This provides additional routing flexibility when installing the device in switchboards or motor control centers.
What wire sizes are supported by the factory lugs on this 35A breaker?
The included line and load lugs accept wire gauges ranging from 8 AWG to 3 AWG. They are dual-rated for use with either copper or aluminum wire.
Is the operating mechanism on the TEB series trip-free?
Yes, the breaker features a trip-free mechanism. This safety feature ensures the breaker will open the circuit under fault conditions even if the handle is physically held or locked in the ON position.
How does the thermal magnetic trip unit function on this E-Frame breaker?
The fixed thermal magnetic trip unit uses a bimetallic strip for long-time overload protection and an electromagnet for instantaneous short circuit protection. Both the thermal and magnetic trip points are fixed and non-adjustable.
