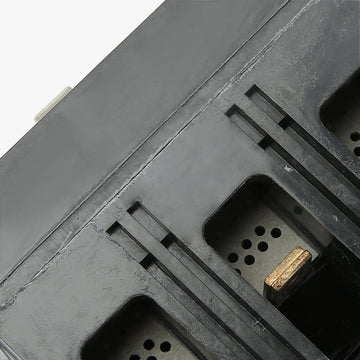

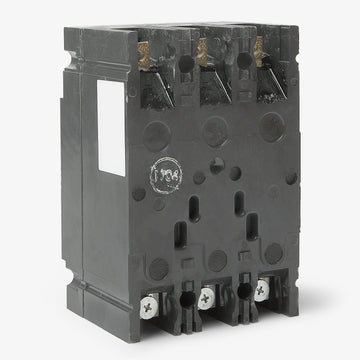

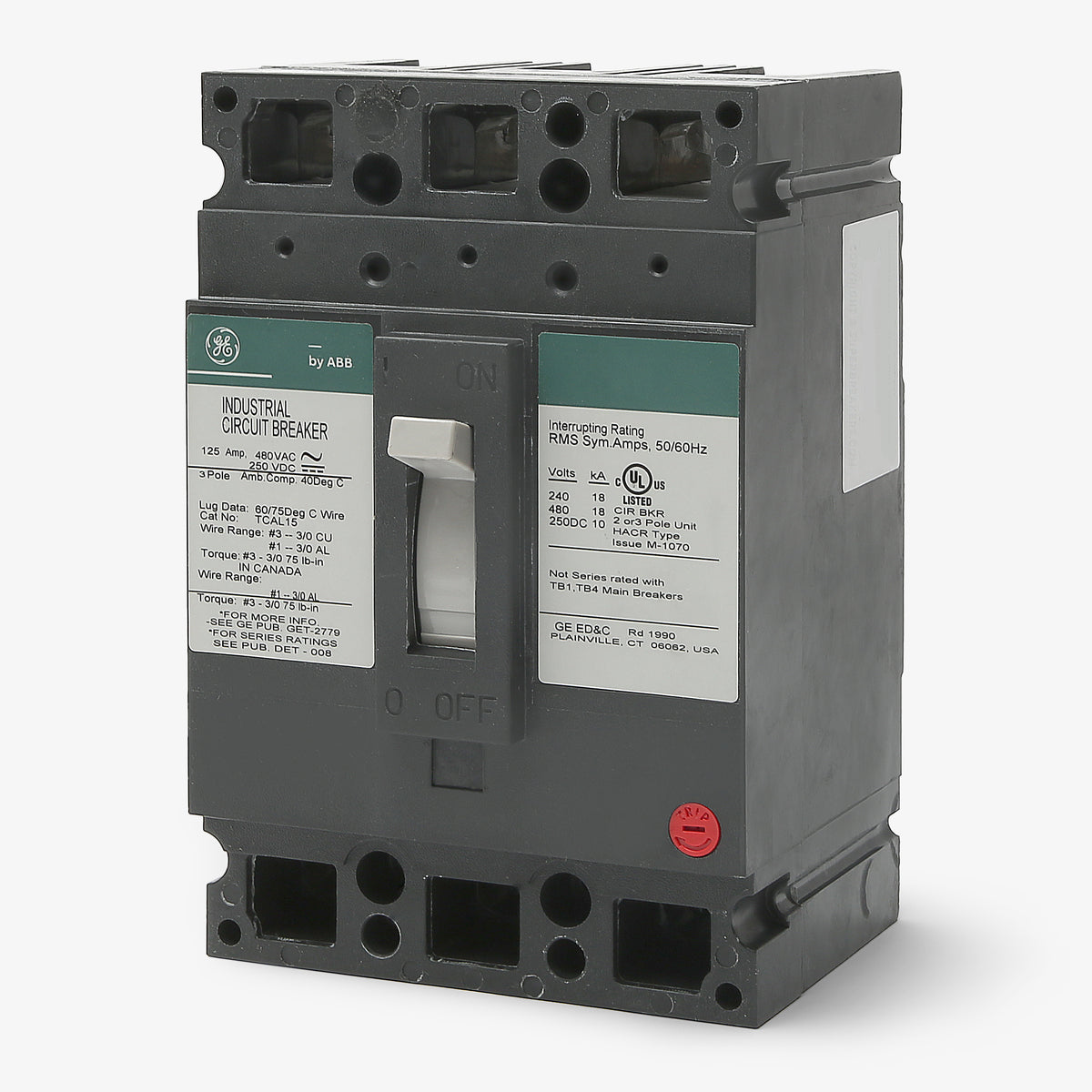

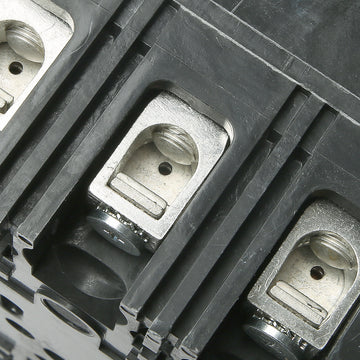

ABB / General Electric TEB132040WL Molded Case Circuit Breaker
- 40A
- 3 Pole
- Unit Mount
ABB / General Electric
TEB132040WL
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TEB132040WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TEB132040WL - 40A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric TEB132040WL - 40A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEB132040WL |
| Series | TEB |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 10kA @ 250VDC |
| Frame Type | TEB |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, Switchboards, Motor Control Centers, Individual Enclosures |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 3 AWG (Cu), 1 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs (TCAL12) |
| Standards | HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Common Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Quantity
ABB / General Electric TEB132040WL - 40A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEB132040WL-R |
| Series | TEB |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 10kA @ 250VDC |
| Frame Type | TEB |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, Switchboards, Motor Control Centers, Individual Enclosures |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 3 AWG (Cu), 1 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs (TCAL12) |
| Standards | HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Common Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Similar Items
ABB / General ElectricTEB132035WL
35A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTEB132030WL
30A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTEB132025WL
25A 3 Pole Molded Case Circuit Breaker
Description
Built to support robust electrical infrastructure, the GE TEB132040WL provides essential thermal-magnetic protection for 3-phase systems. This 40A molded case circuit breaker utilizes a unit-mount design with standard lugs, allowing integration into GE A-Series panelboards and individual enclosures. It serves as a drop-in replacement for older TE132040 models. The breaker features a non-interchangeable trip unit, HACR rating, and quick-make/quick-break operation to ensure consistent performance.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEB132040WL |
| Series | TEB |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 10kA @ 250VDC |
| Frame Type | TEB |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, Switchboards, Motor Control Centers, Individual Enclosures |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 3 AWG (Cu), 1 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs (TCAL12) |
| Standards | HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Common Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
8 answersWhat does the WL suffix mean in the TEB132040WL catalog number?
The WL suffix indicates that the circuit breaker is factory-equipped with line and load lugs suitable for both copper and aluminum wire.
Can the TEB132040WL be used to replace older TE series breakers?
Yes, the TEB132040WL serves as a direct drop-in replacement for older GE TE132040 circuit breakers.
Which panelboards are compatible with the TEB132040WL circuit breaker?
This unit mount breaker is designed for use in GE A-Series panelboards, as well as compatible switchboards, motor control centers, and individual enclosures.
Is the TEB132040WL suitable for reverse feed applications?
Yes, GE TEB series molded case circuit breakers are suitable for reverse feed installations, allowing for versatile wiring configurations.
Is the TEB132040WL circuit breaker HACR rated?
Yes, this breaker is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment.
Can the trip settings on the TEB132040WL be adjusted?
No, this breaker features a non-interchangeable, fixed thermal magnetic trip unit with preset long-time and instantaneous trip functions.
Does the TEB132040WL feature a trip-free mechanism?
Yes, it utilizes a trip-free mechanism that ensures the breaker will trip and open the circuit under fault conditions, even if the operating handle is physically held in the ON position.
Are line shields available for the TEB132040WL?
Yes, the GE TEDLS line shield is compatible with TEB frame molded case circuit breakers to enhance safety and protection in electrical installations.
