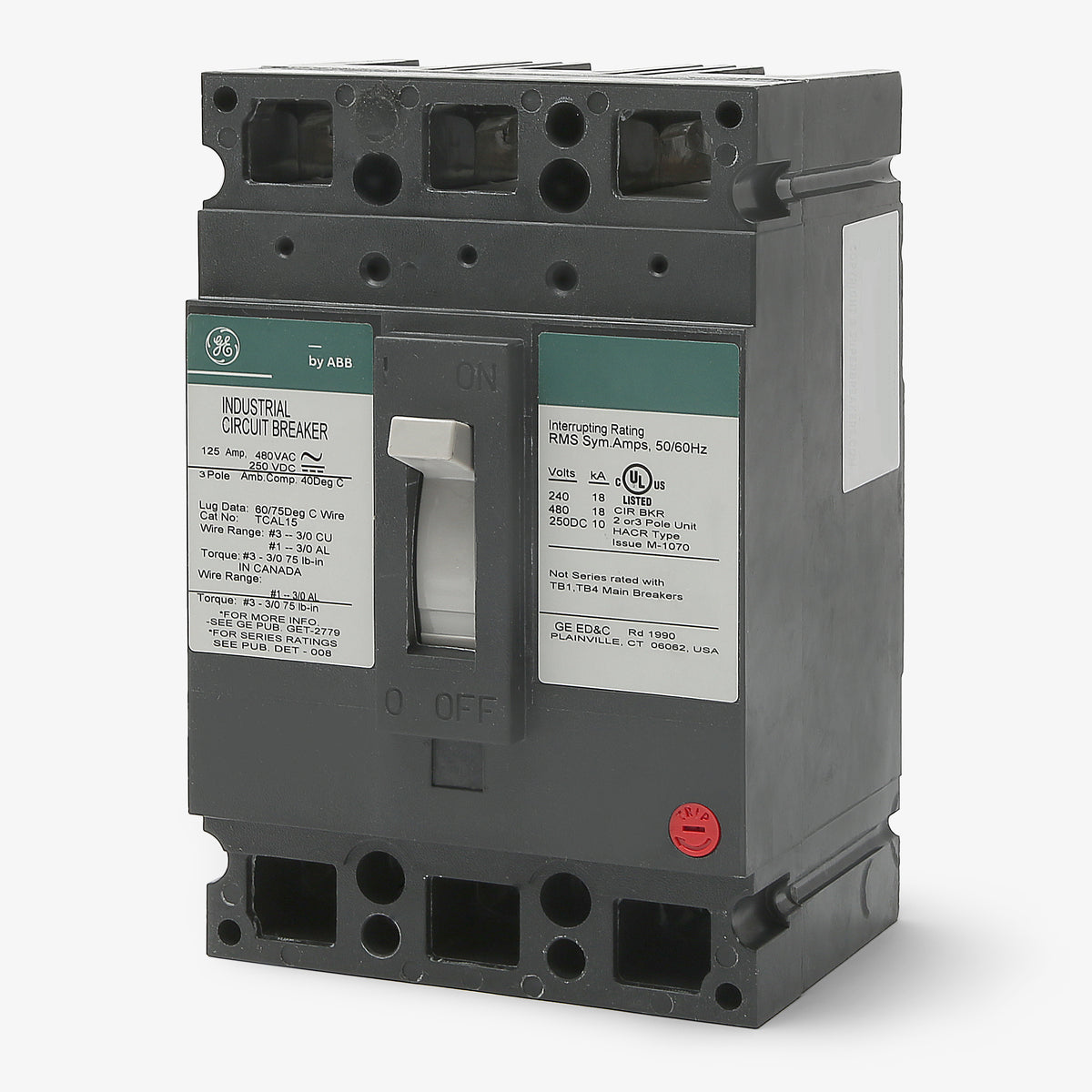

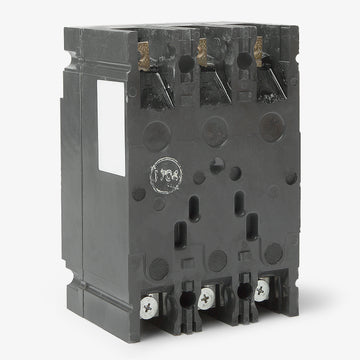

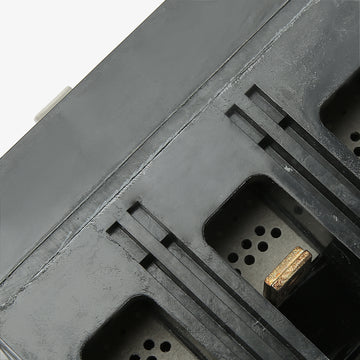

ABB / General Electric TEB132045 Molded Case Circuit Breaker
- 45A
- 3 Pole
- Bolt-On
ABB / General Electric
TEB132045
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TEB132045
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TEB132045 - 45A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
ABB / General ElectricTEB132030
30A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTEB132025
25A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTEB132045WL
45A 3 Pole Molded Case Circuit Breaker
Description
Built for commercial applications, the GE TEB132045 is a 3-pole, 45A molded case circuit breaker from the legacy E150 line. It provides dependable overcurrent protection for 240VAC systems. This bolt-on breaker installs into GE A-Series panelboards. It serves as an exact replacement for the discontinued TE132045, ensuring seamless integration into existing infrastructure. Rated at 10kAIC, the unit features fixed thermal magnetic trip technology and is HACR rated for HVAC equipment.Specifications
| Brand | ABB / General Electric |
|---|---|
| Series | TEB |
| Amperage | 45A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 10kA @ 250VDC |
| Frame Type | TEB |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 8-3 AWG (Cu/Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Lug |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Common Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
8 answersWhat panelboards are compatible with the TEB132045?
The TEB132045 is designed for use in GE A-Series panelboards. It features a bolt-on connection for secure mounting directly to the panel bus.

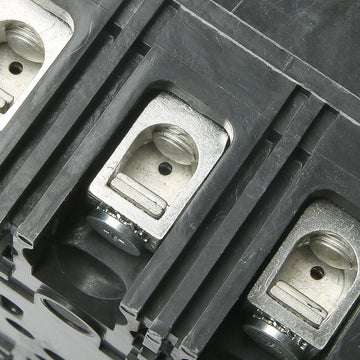

What wire sizes and materials are accepted by the lugs on this breaker?
The factory-installed lugs accept 8 AWG to 3 AWG wire and are rated for both copper and aluminum (Cu/Al) conductors.
Can this breaker be used in DC applications?
Yes, the TEB132045 is rated for DC applications up to 250VDC, providing an interrupting capacity of 10kA.
Is the TEB132045 a direct replacement for older models?
Yes, the TEB132045 serves as an exact replacement for the discontinued GE TE132045 breaker, ensuring seamless integration into existing E150 line infrastructure.
Does this breaker have adjustable trip settings?
No, this breaker utilizes fixed thermal and fixed magnetic trip elements for long-time and instantaneous (LI) protection. It does not offer field-adjustable trip dials.
Is the TEB132045 suitable for reverse feed applications?
Yes, breakers in the GE E150 line, including the TEB132045, are suitable for reverse feed installations.
Is this breaker HACR rated for HVAC equipment?
Yes, the TEB132045 is HACR rated, making it suitable for branch circuit protection of heating, air conditioning, and refrigeration equipment.
Are there higher interrupting capacity versions available in the E150 frame?
Yes, if your system requires a higher interrupting capacity than 10kAIC at 240VAC, the GE TED and THED series offer higher ratings within the same E150 frame footprint.
