ABB / General Electric TEB132030 Molded Case Circuit Breaker
- 30A
- 3 Pole
- Bolt-On
ABB / General Electric
TEB132030
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TEB132030
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TEB132030 - 30A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric TEB132030 - 30A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Series | TEB |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 10kA @ 250VDC |
| Frame Type | E150 |
|---|---|

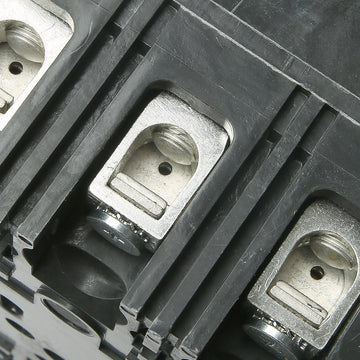

| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, Spectra Series Panelboards |
| Wire Gauge | 14-8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Lug Kits |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip, Reverse Feed, Quick-Make/Quick-Break, Trip-Free Mechanism |
Quantity
ABB / General Electric TEB132030 - 30A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Series | TEB |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 10kA @ 250VDC |
| Frame Type | E150 |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, Spectra Series Panelboards |
| Wire Gauge | 14-8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Lug Kits |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip, Reverse Feed, Quick-Make/Quick-Break, Trip-Free Mechanism |
Similar Items
ABB / General ElectricTEB132040
40A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTEB132045
45A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTEB122030
30A 2 Pole Molded Case Circuit Breaker
Description
Engineered for commercial applications, the GE TEB132030 is a 3-pole, 30A molded case circuit breaker from the E-Frame family. It provides dependable thermal-magnetic protection for standard power distribution. This bolt-on breaker installs into GE A-Series and Spectra Series panelboards. It serves as a drop-in replacement for the older TE132030, ensuring seamless integration into existing infrastructure.Specifications
| Brand | ABB / General Electric |
|---|---|
| Series | TEB |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 10kA @ 250VDC |
| Frame Type | E150 |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, Spectra Series Panelboards |
| Wire Gauge | 14-8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Lug Kits |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip, Reverse Feed, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
7 answersCan I use a TED or THED series breaker to replace the TEB132030?
Yes. The GE TED and THED series share the exact same physical E150 frame as the TEB series but feature higher voltage and interrupting ratings. They are physically interchangeable and can safely replace a TEB132030.
Can the TEB132030 replace a TED or THED breaker?
It depends on your system's available fault current. While the TEB132030 is physically identical to TED and THED breakers, it has a lower interrupting rating of 10kAIC. It can only be used as a replacement if the maximum available fault current at the panel is 10,000 amps or less.
Is the TEB132030 suitable for reverse feed applications?
Yes. GE E150 frame breakers, including the TEB series, are not marked with line and load restrictions and are fully suitable for reverse feed installations.
What does the E150 frame designation mean for this breaker?
The E150 frame designation indicates the physical dimensions and the maximum amperage capacity of this breaker family. While this specific TEB132030 model is rated for 30 amps, the E150 frame itself can support trip units up to 150 amps.
Are the trip settings on the TEB132030 adjustable?
No. This breaker features a fixed thermal magnetic trip unit. Both the long-time overload and instantaneous short-circuit trip functions are factory set and cannot be adjusted in the field.
Which panelboards are compatible with the TEB132030?
This bolt-on breaker is specifically designed to mount in GE A-Series and Spectra Series panelboards.
Can I use aluminum wire with the TEB132030?
Yes. The standard factory lugs on this breaker are dual-rated for both copper and aluminum conductors.
