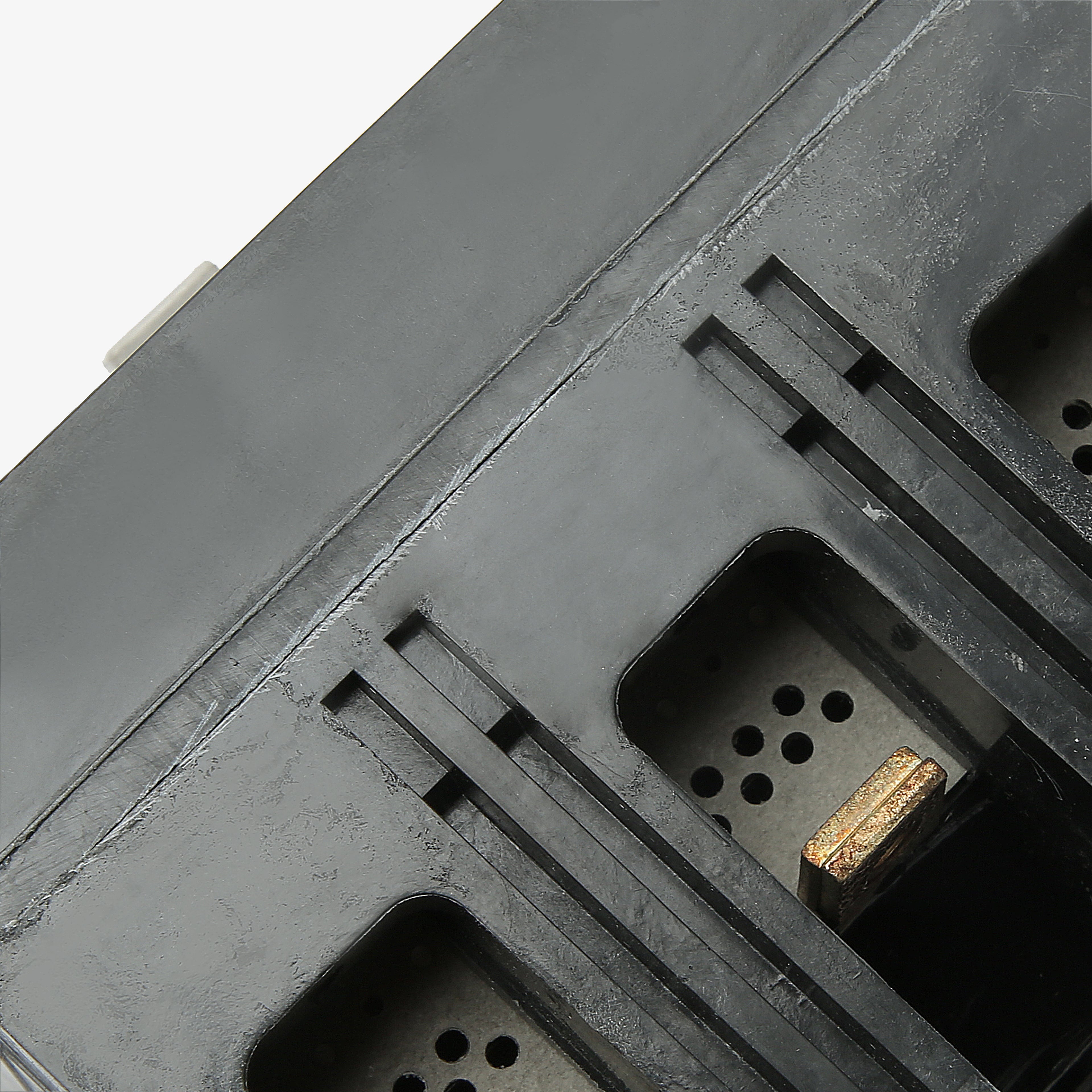

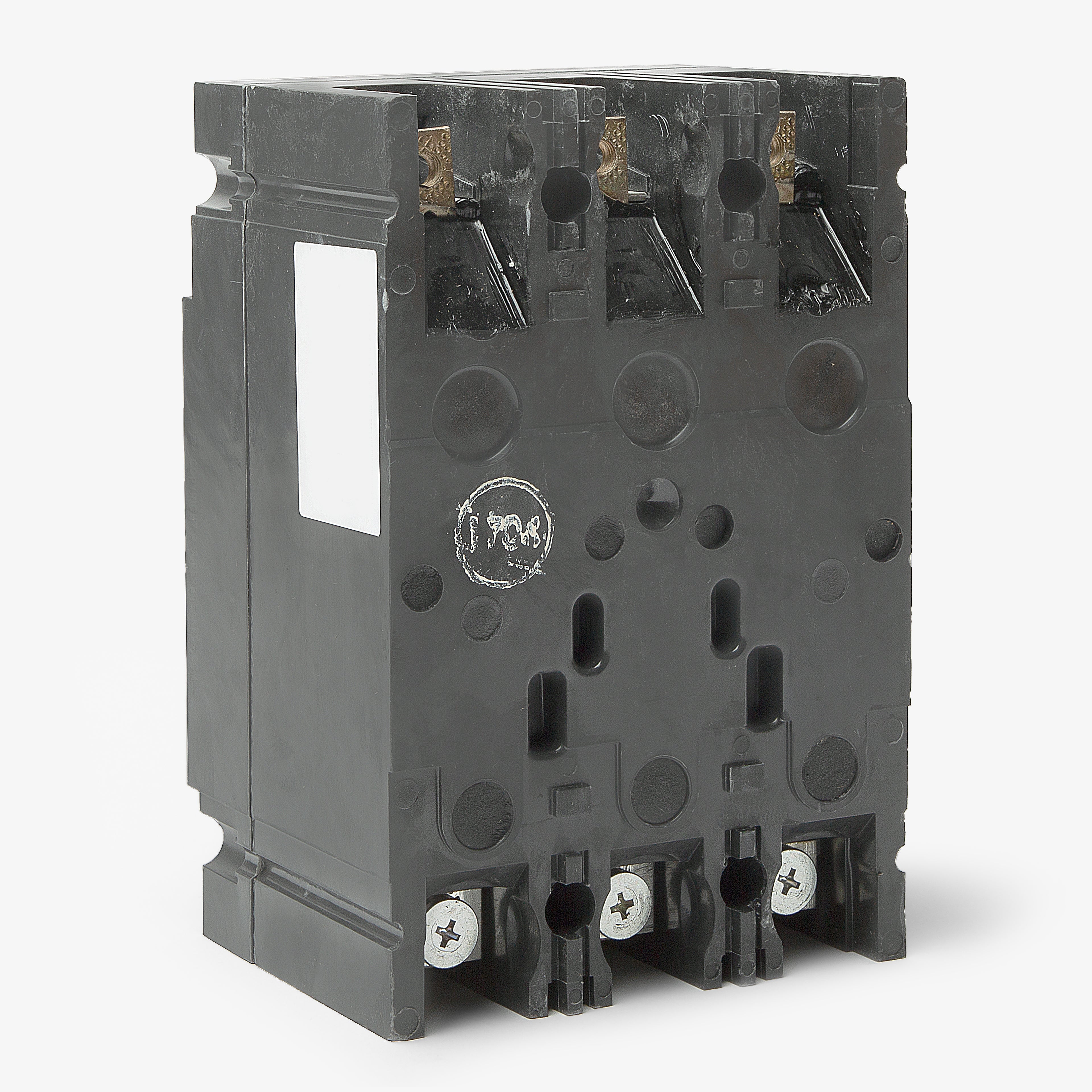

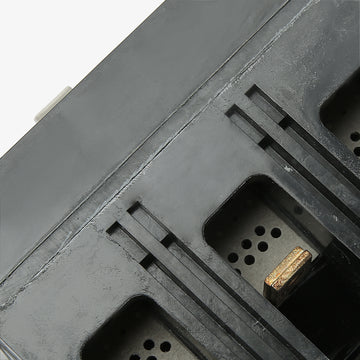

ABB / General Electric TEB132080 Molded Case Circuit Breaker
- 80A
- 3 Pole
- Bolt-On
ABB / General Electric
TEB132080
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TEB132080
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TEB132080 - 80A 3 Pole Molded Case Circuit Breaker
New
Quantity
Sold out
Quantity
ABB / General Electric TEB132080 - 80A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Series | TEB |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | E150 |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 6-2/0 AWG (Cu), 4-2/0 AWG (Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Lug Kits |
|---|---|
| Accessories | Load Lugs |
| Standards | HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Common Trip |
Sold out
Quantity
ABB / General Electric TEB132080 - 80A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Series | TEB |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | E150 |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 6-2/0 AWG (Cu), 4-2/0 AWG (Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Lug Kits |
|---|---|
| Accessories | Load Lugs |
| Standards | HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Common Trip |
Similar Items
ABB / General ElectricTEB132070
70A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTEB132100
100A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTEB132060
60A 3 Pole Molded Case Circuit Breaker
Description
Rated for 80 amps, the GE TEB132080 is a rugged thermal-magnetic breaker tailored for commercial facilities. This E-Frame device provides dependable protection. Its bolt-on configuration ensures a secure connection within GE A-Series panelboards. It serves as an ideal substitute for the legacy TE132080. Supplying 10kA of interrupting capacity at 240VAC, this unit is fully HACR rated. The reverse-feed capable design includes load-side lugs for quick wiring.Specifications
| Brand | ABB / General Electric |
|---|---|
| Series | TEB |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | E150 |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 6-2/0 AWG (Cu), 4-2/0 AWG (Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Lug Kits |
|---|---|
| Accessories | Load Lugs |
| Standards | HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Common Trip |
Product FAQs
7 answersWhat panelboards is the TEB132080 compatible with?
The TEB132080 is a bolt-on breaker designed specifically for use in GE A-Series panelboards.
What wire sizes and materials are accepted by the lugs on this breaker?

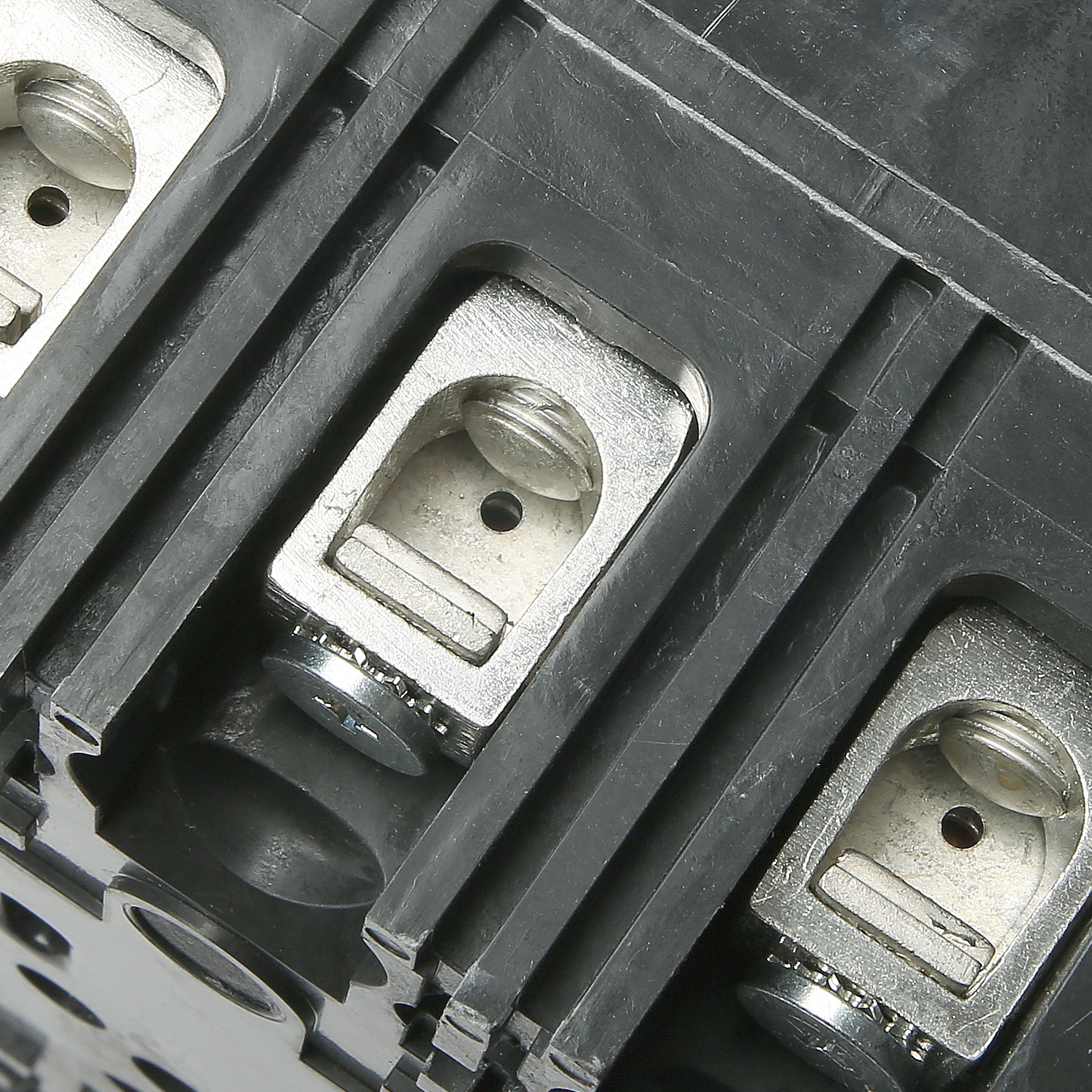

The factory-installed lugs accept 6 AWG to 2/0 AWG copper wire, or 4 AWG to 2/0 AWG aluminum wire.
Is the TEB132080 suitable for direct current applications?
Yes, in addition to its 240VAC rating, this breaker carries a DC rating of 250VDC with a 5kA interrupting capacity, making it suitable for specific DC control or distribution circuits.
How does the TEB132080 install into the panelboard?
It is a bolt-on breaker that mounts directly to the bus of compatible GE A-Series panelboards, providing a secure mechanical and electrical connection.
What does the E150 frame designation mean for this breaker?
The E150 frame indicates the physical footprint and maximum amperage capacity of the breaker family. The TEB132080 shares this compact frame size with other GE E-Frame breakers, supporting up to 150 amps maximum, though this specific model is factory set for 80 amps.
Can the TEB132080 be used in reverse feed applications?
Yes, this breaker is suitable for reverse feed applications, allowing it to be back-fed when used as a main breaker or in specific generator setups.
What type of trip unit does the TEB132080 utilize?
It features a non-interchangeable thermal magnetic trip unit with fixed long-time and instantaneous (LI) protection functions.
