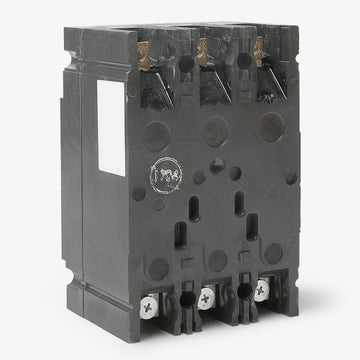

ABB / General Electric TEB132100 Molded Case Circuit Breaker
- 100A
- 3 Pole
- Bolt-On
ABB / General Electric
TEB132100
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TEB132100
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TEB132100 - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric TEB132100 - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEB132100 |
| Series | TEB |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | TEB |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, Spectra Series Panelboards |
| Wire Gauge | 6 AWG - 2/0 AWG (Cu), 4 AWG - 2/0 AWG (Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Lug Kits |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip, Reverse Feed, Quick-Make/Quick-Break, Trip-Free Mechanism |
Quantity
ABB / General Electric TEB132100 - 100A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Series | TEB |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | TEB |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, Spectra Series Panelboards |
| Wire Gauge | 6 AWG - 2/0 AWG (Cu), 4 AWG - 2/0 AWG (Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Lug Kits |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip, Reverse Feed, Quick-Make/Quick-Break, Trip-Free Mechanism |
Similar Items
ABB / General ElectricTEB132070
70A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTEB132060
60A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTEB132045
45A 3 Pole Molded Case Circuit Breaker
Description
Rated 10kAIC at 240VAC, this 100A molded case circuit breaker offers reliable thermal-magnetic protection for commercial facilities. The 3-pole E-Frame device utilizes fixed long-time and instantaneous trip functions to safeguard electrical circuits. This bolt-on MCCB mounts into GE A-Series and Spectra Series panelboards. It functions as a direct replacement for the legacy TE132100 breaker, ensuring seamless integration. Load side lugs are included for secure wire termination.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEB132100 |
| Series | TEB |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | TEB |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, Spectra Series Panelboards |
| Wire Gauge | 6 AWG - 2/0 AWG (Cu), 4 AWG - 2/0 AWG (Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Lug Kits |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip, Reverse Feed, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
7 answersWhich panelboards are compatible with the TEB132100 circuit breaker?
This bolt-on E-frame breaker mounts directly into GE A-Series and Spectra Series panelboards. It is also compatible with select GE commercial modular metering stacks.
What is the direct replacement for the obsolete GE TE132100 breaker?
The TEB132100 serves as the direct modern replacement for the legacy GE TE132100. It maintains the same physical footprint and electrical ratings for seamless integration into existing enclosures.
Can the TEB132100 be applied in DC electrical systems?
Yes, in addition to standard AC circuits, this breaker is approved for use in 250VDC applications with a maximum interrupting capacity of 5kAIC.
Can the thermal or magnetic trip thresholds be adjusted on the TEB132100?
No, this unit utilizes a fixed thermal-magnetic trip unit. The long-time and instantaneous trip parameters are factory-set and cannot be modified in the field.

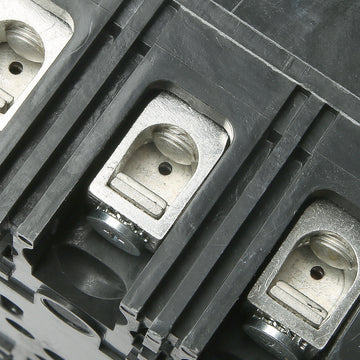

Are the load side lugs provided with this breaker, and what wire sizes do they accept?
Yes, the breaker includes standard load lugs ready for wire termination. The terminals accommodate copper conductors from 6 AWG to 2/0 AWG and aluminum conductors from 4 AWG to 2/0 AWG.
Is the TEB132100 suitable for protecting HVAC loads?
Yes, this molded case circuit breaker is HACR certified, making it fully approved for the unique inrush currents associated with heating, air conditioning, and refrigeration equipment.
If a fault occurs on a single phase, will all three poles of the TEB132100 open?
Yes, the breaker features an internal common trip mechanism. If an overload or short circuit triggers a trip on any individual phase, the breaker will simultaneously open all three poles to safely disconnect the load.
