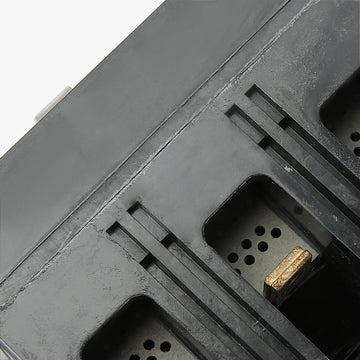

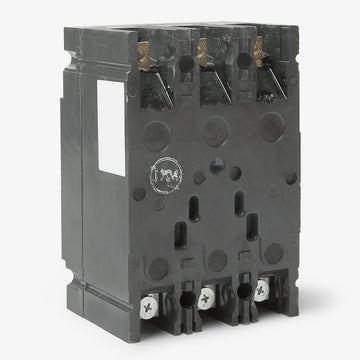

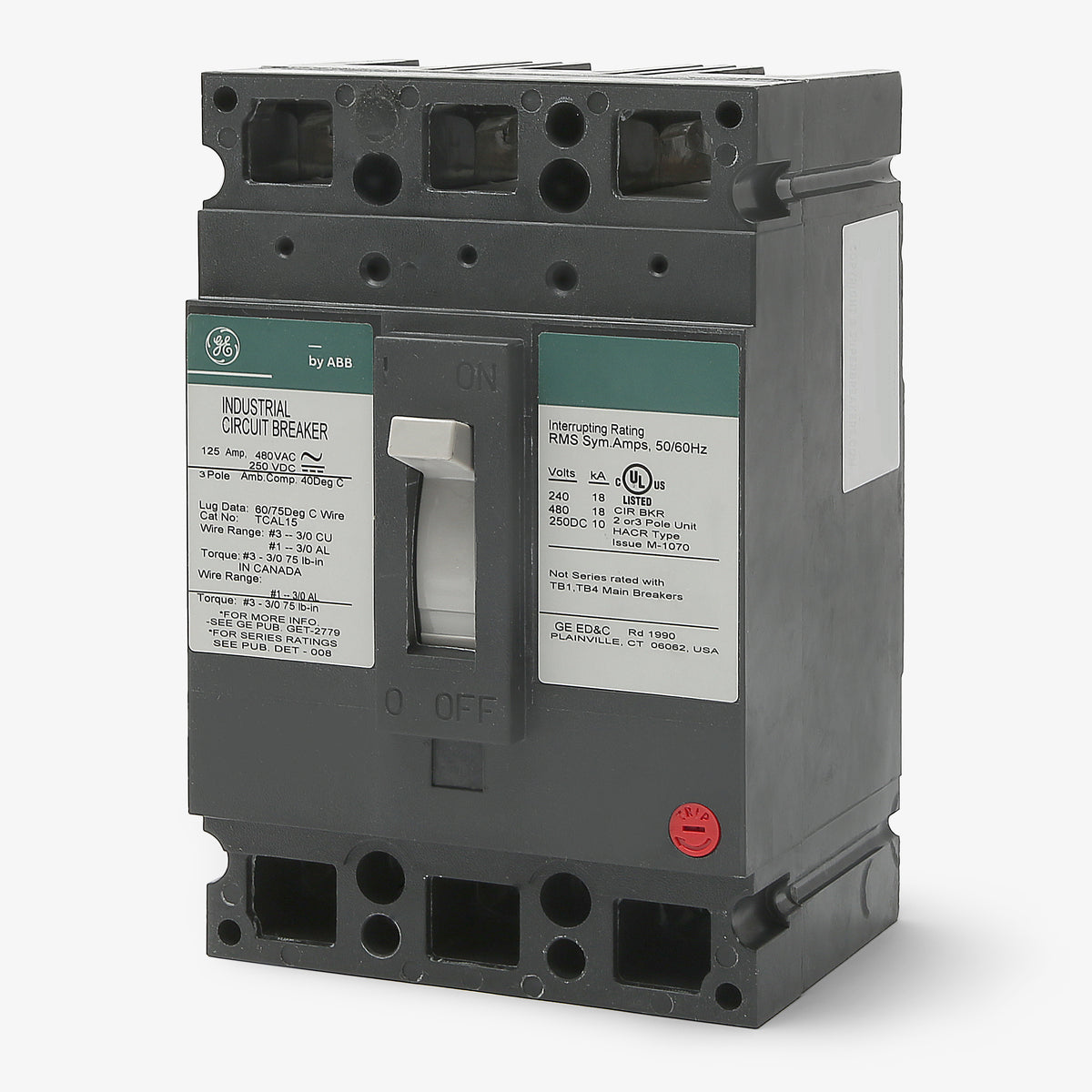

ABB / General Electric TEB132100WL Molded Case Circuit Breaker
- 100A
- 3 Pole
- Unit Mount
ABB / General Electric
TEB132100WL
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TEB132100WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TEB132100WL - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric TEB132100WL - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEB132100WL |
| Series | TEB |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | TEB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 3 AWG - 3/0 AWG (Cu/Al) |
| Max Wire | 3/0 AWG |
| Min Wire | 3 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs (TCAL15) |
| Standards | HACR, UL 489, NEMA AB-1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Common Trip, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Quantity
ABB / General Electric TEB132100WL - 100A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEB132100WL-R |
| Series | TEB |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | TEB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 3 AWG - 3/0 AWG (Cu/Al) |
| Max Wire | 3/0 AWG |
| Min Wire | 3 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs (TCAL15) |
| Standards | HACR, UL 489, NEMA AB-1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Common Trip, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Similar Items
ABB / General ElectricTEB132080WL
80A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTEB132070WL
70A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTEB132060WL
60A 3 Pole Molded Case Circuit Breaker
Description
Part of the GE E150 line, the TEB132100WL provides robust thermal-magnetic overcurrent protection for commercial and industrial distribution systems. This 100-amp, three-pole molded case circuit breaker is designed for unit mounting in standard enclosures, switchboards, and motor control centers. It serves as an exact drop-in replacement for the discontinued TE132100WL, ensuring seamless maintenance. Rated for 10kAIC at 240VAC, it features fixed long-time and instantaneous trip functions.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEB132100WL |
| Series | TEB |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | TEB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 3 AWG - 3/0 AWG (Cu/Al) |
| Max Wire | 3/0 AWG |
| Min Wire | 3 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs (TCAL15) |
| Standards | HACR, UL 489, NEMA AB-1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Common Trip, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
9 answersWhat does the WL suffix mean in the TEB132100WL part number?
The WL suffix indicates that the circuit breaker is supplied with factory-installed copper/aluminum (Cu/Al) line and load lugs.
Can the TEB132100WL be used to replace older TE132100 breakers?
Yes, the TEB132100WL is a direct drop-in replacement for the discontinued legacy TE132100 and TE132100WL circuit breakers.
Is the TEB132100WL circuit breaker suitable for reverse feed applications?
Yes, General Electric TEB frame molded case circuit breakers are suitable for reverse feed installations.
Where is the TEB132100WL typically installed?
This unit-mount E-Frame breaker is designed for installation in compatible General Electric enclosures, switchboards, and motor control centers.

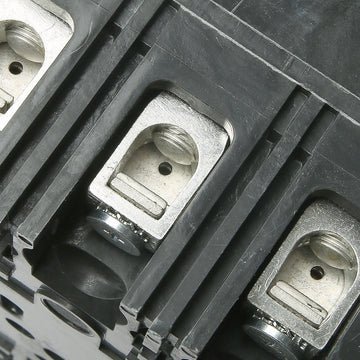

What are the conductor requirements for the TEB132100WL lugs?
The factory-installed lugs are rated for both copper and aluminum (Cu/Al) wiring, accepting conductor sizes from 3 AWG up to 3/0 AWG.
Can the TEB132100WL be used in DC applications?
Yes, it is rated for use on 250VDC systems, where it provides an interrupting capacity of 5kAIC.
Is the TEB132100WL rated for heating, air conditioning, and refrigeration equipment?
Yes, this 100-amp TEB frame breaker is HACR rated for use with heating, air conditioning, and refrigeration equipment.
Are the trip settings on the TEB132100WL adjustable?
No, this breaker is equipped with a non-interchangeable thermal-magnetic trip unit that has fixed long-time and fixed instantaneous trip functions.
What is the pole spacing for the TEB132100WL?
As part of the GE E150 line, this breaker features a 1.375-inch per-pole spacing, making the 3-pole unit approximately 4.125 inches wide.
