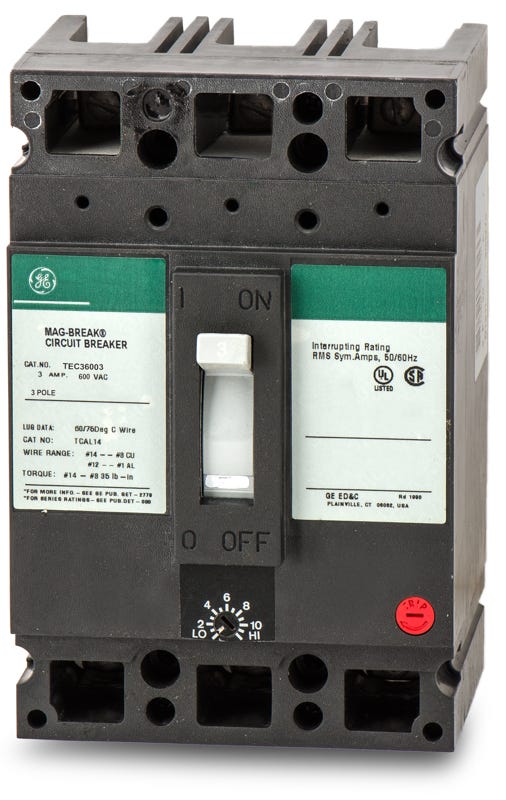

ABB / General Electric TEC36003 Motor Circuit Protector
- 3A
- 3 Pole
- Unit Mount
ABB / General Electric
TEC36003
Motor Circuit Protector
Brand
ABB / General Electric
SKU
TEC36003
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TEC36003 - 3A 3 Pole Motor Circuit Protector
New
Quantity
Quantity
ABB / General Electric TEC36003 - 3A 3 Pole Motor Circuit Protector
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEC36003 |
| Series | TEC |
| Amperage | 3A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 10kA @ 480VAC, 10kA @ 600VAC |
| Frame Type | TEC |
|---|---|
| Terminal Type | Lugs |
| For Use With | Motor Control Centers, Combination Motor Starters, GE A-Series Panelboards, GE Spectra Series Panelboards |
| Wire Gauge | 14 AWG - 3 AWG (Cu) / 12 AWG - 1 AWG (Al) |
| Max Wire | 3 AWG (Cu) / 1 AWG (Al) |
| Min Wire | 14 AWG (Cu) / 12 AWG (Al) |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5.1, UL 489 |
| Approval | CSA, UR |
| Temp Rating | 40C |
| Construction Features | Mag-Break, Motor Circuit Protector |
Quantity
ABB / General Electric TEC36003 - 3A 3 Pole Motor Circuit Protector
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEC36003-R |
| Series | TEC |
| Amperage | 3A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 10kA @ 480VAC, 10kA @ 600VAC |
| Frame Type | TEC |
|---|---|
| Terminal Type | Lugs |
| For Use With | Motor Control Centers, Combination Motor Starters, GE A-Series Panelboards, GE Spectra Series Panelboards |
| Wire Gauge | 14 AWG - 3 AWG (Cu) / 12 AWG - 1 AWG (Al) |
| Max Wire | 3 AWG (Cu) / 1 AWG (Al) |
| Min Wire | 14 AWG (Cu) / 12 AWG (Al) |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5.1, UL 489 |
| Approval | CSA, UR |
| Temp Rating | 40C |
| Construction Features | Mag-Break, Motor Circuit Protector |
Similar Items
ABB / General ElectricTEC36015
15A 3 Pole Motor Circuit Protector
ABB / General ElectricTEC36030
30A 3 Pole Motor Circuit Protector
ABB / General ElectricTEC36050
50A 3 Pole Motor Circuit Protector
Description
Built for dedicated motor control applications, the GE TEC36003 is a 3-pole, 3A Mag-Break motor circuit protector. It provides instantaneous-only protection to coordinate seamlessly with external motor overloads. This unit-mount MCP integrates into Motor Control Centers, combination starters, and GE A-Series or Spectra panelboards. It also replaces legacy SF36003 units. Featuring an adjustable magnetic trip range of 8A to 38A, it allows precise tuning to specific motor inrush characteristics.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEC36003 |
| Series | TEC |
| Amperage | 3A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 10kA @ 480VAC, 10kA @ 600VAC |
| Frame Type | TEC |
|---|---|
| Terminal Type | Lugs |
| For Use With | Motor Control Centers, Combination Motor Starters, GE A-Series Panelboards, GE Spectra Series Panelboards |
| Wire Gauge | 14 AWG - 3 AWG (Cu) / 12 AWG - 1 AWG (Al) |
| Max Wire | 3 AWG (Cu) / 1 AWG (Al) |
| Min Wire | 14 AWG (Cu) / 12 AWG (Al) |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5.1, UL 489 |
| Approval | CSA, UR |
| Temp Rating | 40C |
| Construction Features | Mag-Break, Motor Circuit Protector |
