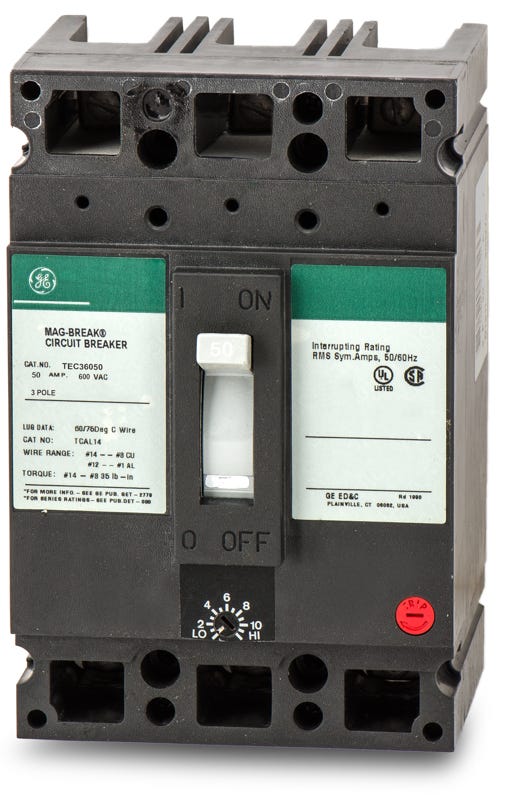

ABB / General Electric TEC36050 Motor Circuit Protector
- 50A
- 3 Pole
- Unit Mount
ABB / General Electric
TEC36050
Motor Circuit Protector
Brand
ABB / General Electric
SKU
TEC36050
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TEC36050 - 50A 3 Pole Motor Circuit Protector
New
Quantity
Quantity
ABB / General Electric TEC36050 - 50A 3 Pole Motor Circuit Protector
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEC36050 |
| Series | TEC |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 10kA @ 480VAC, 10kA @ 600VAC |
| Frame Type | TEC |
|---|---|
| Terminal Type | Lugs |
| For Use With | Motor Control Centers, Combination Motor Starters, GE A-Series Panelboards, GE Spectra Series Panelboards |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 3 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Motor Operator, Lug Kits |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5.1, UL 489 |
| Approval | CSA, UR |
| Temp Rating | 40C |
| Construction Features | Motor Circuit Protector, Mag-Break, Non-Interchangeable Trip, Reverse Feed |
Quantity
ABB / General Electric TEC36050 - 50A 3 Pole Motor Circuit Protector
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEC36050-R |
| Series | TEC |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 10kA @ 480VAC, 10kA @ 600VAC |
| Frame Type | TEC |
|---|---|
| Terminal Type | Lugs |
| For Use With | Motor Control Centers, Combination Motor Starters, GE A-Series Panelboards, GE Spectra Series Panelboards |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 3 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Motor Operator, Lug Kits |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5.1, UL 489 |
| Approval | CSA, UR |
| Temp Rating | 40C |
| Construction Features | Motor Circuit Protector, Mag-Break, Non-Interchangeable Trip, Reverse Feed |
Similar Items
ABB / General ElectricTEC36015
15A 3 Pole Motor Circuit Protector
ABB / General ElectricTEC36007
7A 3 Pole Motor Circuit Protector
ABB / General ElectricTEC36003
3A 3 Pole Motor Circuit Protector
Description
Part of the legacy E-Frame lineup, the GE TEC36050 is a 3-pole, 50A motor circuit protector. It delivers instantaneous-only protection, working in tandem with external overload relays. Designed for unit mount applications, this MCP fits into GE A-Series and Spectra Series panelboards, as well as combination starters. It accepts 14-3 AWG copper wire via standard lugs. Rated for 600VAC, the device features an adjustable 180A to 660A magnetic trip to prevent nuisance tripping during startup.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEC36050 |
| Series | TEC |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 10kA @ 480VAC, 10kA @ 600VAC |
| Frame Type | TEC |
|---|---|
| Terminal Type | Lugs |
| For Use With | Motor Control Centers, Combination Motor Starters, GE A-Series Panelboards, GE Spectra Series Panelboards |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 3 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Motor Operator, Lug Kits |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5.1, UL 489 |
| Approval | CSA, UR |
| Temp Rating | 40C |
| Construction Features | Motor Circuit Protector, Mag-Break, Non-Interchangeable Trip, Reverse Feed |
