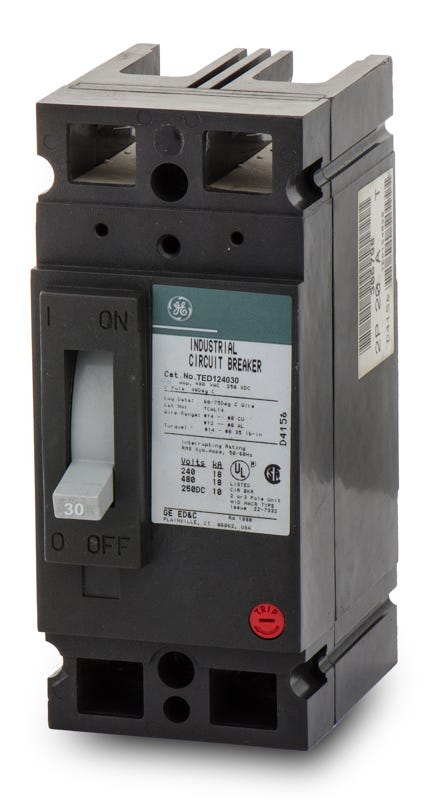

ABB / General Electric TED124030 Molded Case Circuit Breaker
- 30A
- 2 Pole
- Bolt-On
ABB / General Electric
TED124030
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TED124030
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TED124030 - 30A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric TED124030 - 30A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TED124030 |
| Series | TED |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 18kA @ 240VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | TED |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, GE Spectra Panelboards |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 3 AWG (Cu), 1 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Motor Operator |
|---|---|
| Accessories | Load Lugs (TCAL12) |
| Standards | HACR, UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Reverse Feed, Quick-Make/Quick-Break, Trip-Free Mechanism |
Sold out
Quantity
ABB / General Electric TED124030 - 30A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TED124030-R |
| Series | TED |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 18kA @ 240VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | TED |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, GE Spectra Panelboards |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 3 AWG (Cu), 1 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Motor Operator |
|---|---|
| Accessories | Load Lugs (TCAL12) |
| Standards | HACR, UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Reverse Feed, Quick-Make/Quick-Break, Trip-Free Mechanism |
Similar Items
ABB / General ElectricTED124025
25A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTED124040
40A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTED124020
20A 2 Pole Molded Case Circuit Breaker
Description
Built for heavy-duty commercial applications, this 30A E-frame breaker provides robust overcurrent defense for facility infrastructure. The bolt-on mounting style fastens securely into GE A-Series and Spectra panelboards, ensuring a stable connection in high-vibration environments. It utilizes a non-interchangeable thermal-magnetic trip mechanism to deliver reliable long-time and instantaneous protection. This HACR-rated component supports reverse feeding for flexible installation options.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TED124030 |
| Series | TED |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 18kA @ 240VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | TED |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, GE Spectra Panelboards |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 3 AWG (Cu), 1 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Motor Operator |
|---|---|
| Accessories | Load Lugs (TCAL12) |
| Standards | HACR, UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Reverse Feed, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
5 answersWhich panelboards are compatible with the TED124030 breaker?
This bolt-on E-frame molded case circuit breaker is designed for installation in GE A-Series panelboards and GE Spectra panelboards.
What are the acceptable wire sizes for the factory lugs on this breaker?
The installed lugs accommodate 14 AWG to 3 AWG copper wire and 12 AWG to 1 AWG aluminum wire.
Can the TED124030 be used in DC voltage applications?
Yes, this thermal magnetic breaker supports DC voltage applications up to 250VDC, carrying an interrupting rating of 10kA in DC systems.
Are the thermal or magnetic trip parameters adjustable on the TED124030?
No, this breaker utilizes a fixed thermal and fixed magnetic trip unit. It provides standard long-time and instantaneous (LI) protection without user adjustability.
Why does this breaker carry both ABB and General Electric branding?
ABB acquired the General Electric Industrial Solutions division. Products in the TED legacy MCCB series may feature either GE or ABB branding depending on the date of manufacture, but they are fully interchangeable.
