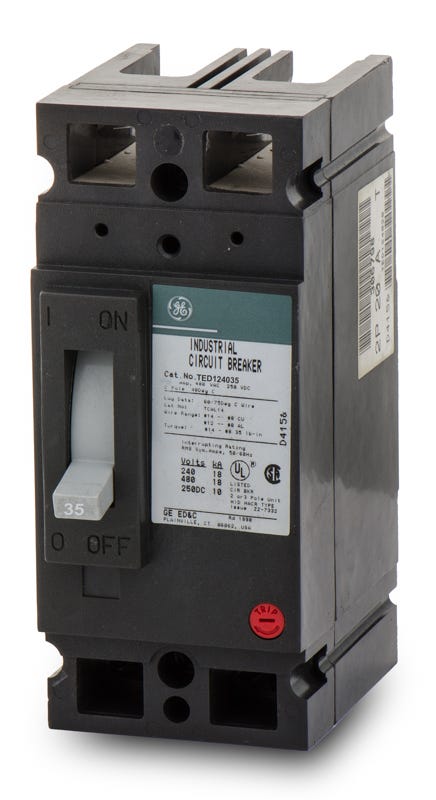

ABB / General Electric TED124035 Molded Case Circuit Breaker
- 35A
- 2 Pole
- Bolt-On
ABB / General Electric
TED124035
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TED124035
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TED124035 - 35A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric TED124035 - 35A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TED124035 |
| Series | TED |
| Amperage | 35A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 18kA @ 240VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | TED |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 3 AWG (Cu), 1 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs Included (TCAL12) |
| Standards | HACR, UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Reverse Feed, Quick-Make/Quick-Break, Trip-Free Mechanism, Common Trip |
Sold out
Quantity
ABB / General Electric TED124035 - 35A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TED124035-R |
| Series | TED |
| Amperage | 35A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 18kA @ 240VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | TED |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 3 AWG (Cu), 1 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs Included (TCAL12) |
| Standards | HACR, UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Reverse Feed, Quick-Make/Quick-Break, Trip-Free Mechanism, Common Trip |
Similar Items
ABB / General ElectricTED124030
30A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTED124045
45A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTED124025
25A 2 Pole Molded Case Circuit Breaker
Description
Built for commercial applications, the GE TED124035 is a 2-pole, 35A molded case circuit breaker. It utilizes a reliable thermal-magnetic trip mechanism to protect against overloads and short circuits. This bolt-on MCCB is specifically designed to mount into GE A-Series and Spectra Series panelboards. It features a standard E-Frame footprint for seamless integration. Delivering an 18kAIC rating at 480VAC, it includes fixed LI trip functions. The breaker is HACR rated and reverse feed capable.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TED124035 |
| Series | TED |
| Amperage | 35A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 18kA @ 240VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | TED |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 3 AWG (Cu), 1 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs Included (TCAL12) |
| Standards | HACR, UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Reverse Feed, Quick-Make/Quick-Break, Trip-Free Mechanism, Common Trip |
Product FAQs
6 answersWhich panelboards are compatible with the TED124035 circuit breaker?
This E-frame breaker is designed for use in GE A-Series and GE Spectra Series panelboards. It mounts directly to the bus using a standard bolt-on connection.
What wire sizes are accepted by the lugs on the TED124035?
The factory-installed lugs accept 14 to 3 AWG copper wire or 12 to 1 AWG aluminum wire. Ensure proper torque specifications are followed during installation to maintain a secure connection.
Can the TED124035 be used in DC voltage applications?
Yes, this thermal magnetic breaker is rated for DC applications up to 250VDC, providing an interrupting capacity of 10kAIC at that voltage.
Is the TED124035 the same as an ABB TED124035?
Yes. Following ABB's acquisition of GE Industrial Solutions, this breaker may be branded as either GE or ABB. The physical dimensions, ratings, and catalog number remain identical regardless of the label.
Are the trip settings on the TED124035 adjustable?
No. It features a fixed thermal magnetic trip unit with long-time and instantaneous (LI) functions. Both the thermal overload and magnetic short-circuit trip points are factory set and non-adjustable.
What safety precautions apply when installing this bolt-on breaker?
Always de-energize the panelboard before installing or servicing bolt-on breakers. Verify that the busbars are completely powered down and use appropriate personal protective equipment (PPE) as required by NFPA 70E.
