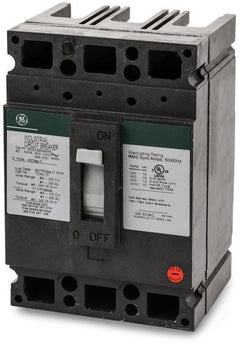

ABB / General Electric TED134040WL Molded Case Circuit Breaker
- 40A
- 3 Pole
- Unit Mount
ABB / General Electric
TED134040WL
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TED134040WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TED134040WL - 40A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric TED134040WL - 40A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TED134040WL |
| Series | TED |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 18kA @ 480VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Individual Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 3 AWG (Cu), 1 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | Line & Load Lugs (TCAL12) |
| Standards | HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Quantity
ABB / General Electric TED134040WL - 40A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TED134040WL-R |
| Series | TED |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 18kA @ 480VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Individual Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 3 AWG (Cu), 1 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | Line & Load Lugs (TCAL12) |
| Standards | HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Similar Items
ABB / General ElectricTED134045WL
45A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTED136045WL
45A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTED134035WL
35A 3 Pole Molded Case Circuit Breaker
Description
Designed for versatile industrial installations, the TED134040WL is a 40A, 3-pole unit mount MCCB. It provides dependable thermal-magnetic protection for commercial power systems. Featuring factory-installed line and load lugs, this breaker mounts into individual enclosures, switchboards, and motor control centers. It serves as a legacy solution commonly replaced by the XT1 series. Rated 18kAIC at 480VAC, it includes fixed LI trip functions. The unit is HACR rated and reverse feed capable.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TED134040WL |
| Series | TED |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 18kA @ 480VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Individual Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 3 AWG (Cu), 1 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | Line & Load Lugs (TCAL12) |
| Standards | HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
5 answersWhat does the "WL" suffix mean at the end of the TED134040WL catalog number?
The "WL" suffix indicates that the breaker comes equipped with factory-installed copper/aluminum (Cu/Al) line and load lugs. If a breaker is ordered without this suffix, it will not include line-side lugs.
Is the TED134040WL compatible with standard plug-in panelboards?
No, this is an E-frame unit mount circuit breaker. It is designed for direct bolt-on installation in individual enclosures, switchboards, and motor control centers (MCCs), and will not mount onto standard plug-in or bolt-on branch panelboard busbars.
Are the trip curves on this 40-amp TED breaker adjustable?
No, this unit is built with a fixed thermal magnetic trip unit. The long-time and instantaneous (LI) protection settings are calibrated at the factory and cannot be field-adjusted.
Why is this E-frame breaker listed under both ABB and General Electric?
ABB acquired GE Industrial Solutions, integrating GE's legacy product lines into their portfolio. The TED series is a legacy GE design, so breakers may carry either GE or ABB branding depending on the date of manufacture, but they are physically and mechanically identical.
Can this breaker be locked in the OFF position for maintenance work?
Yes, but you will need to add a compatible E-frame handle padlock attachment. Once installed, this accessory allows you to secure the breaker handle in the OFF position to comply with standard lockout/tagout safety protocols.
