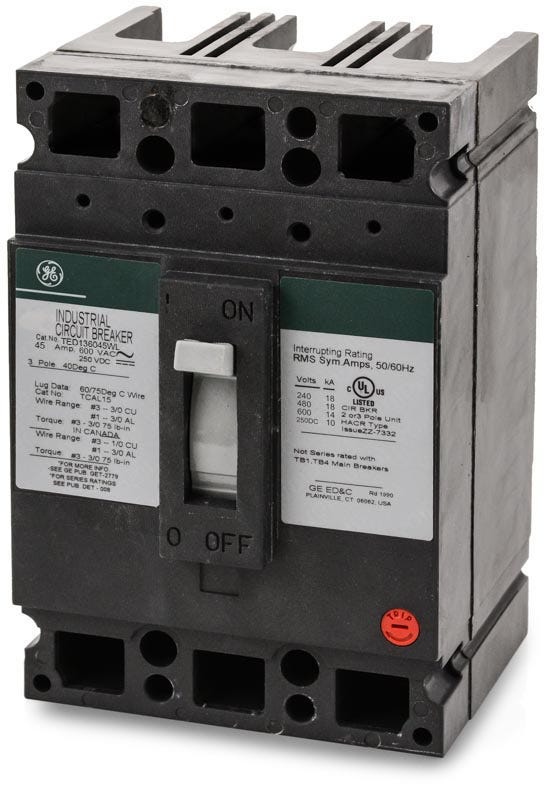

ABB / General Electric TED136045WL Molded Case Circuit Breaker
- 45A
- 3 Pole
- Unit Mount
ABB / General Electric
TED136045WL
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TED136045WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TED136045WL - 45A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTED136050WL
50A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTED134050WL
50A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTED134040WL
40A 3 Pole Molded Case Circuit Breaker
Description
Part of the legacy E-frame family, this 45A molded case circuit breaker delivers reliable thermal-magnetic protection for commercial and industrial systems. It installs into individual enclosures, switchboards, and motor control centers using a standard unit mount configuration. Rated for 18kAIC at 480VAC and 14kAIC at 600VAC, the device includes factory-installed TCAL12 lugs and supports reverse feed applications.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TED136045WL |
| Series | TED |
| Amperage | 45A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Frame Type | TED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Individual Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 14-2 AWG (Cu), 12-2 AWG (Al) |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Lugs (TCAL12) |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
6 answersWhat types of panels and enclosures are compatible with the TED136045WL?
This unit mount circuit breaker is designed for use in GE A-Series panelboards, Spectra Series switchboards, motor control centers, and individual enclosures.
What does the WL suffix indicate on the TED136045WL catalog number?
The WL suffix indicates that the circuit breaker comes factory-equipped with both line and load lugs for immediate wiring.
Why might this breaker arrive with ABB branding instead of General Electric?
ABB acquired GE Industrial Solutions. Depending on the manufacturing date, E150 frame breakers like the TED136045WL may feature either ABB or GE branding, but they remain identical in form, fit, and function.
Can the TED136045WL be reverse fed?
Yes, GE TED series molded case circuit breakers are suitable for reverse feed applications.
How must the TED136045WL be wired for 500VDC applications?
For 500VDC ungrounded battery or DC applications, the breaker is UL listed to be wired with its poles in series.
Is the trip unit on the TED136045WL adjustable?
No, this breaker features a non-interchangeable thermal magnetic trip unit with fixed long time and instantaneous (LI) trip functions.
