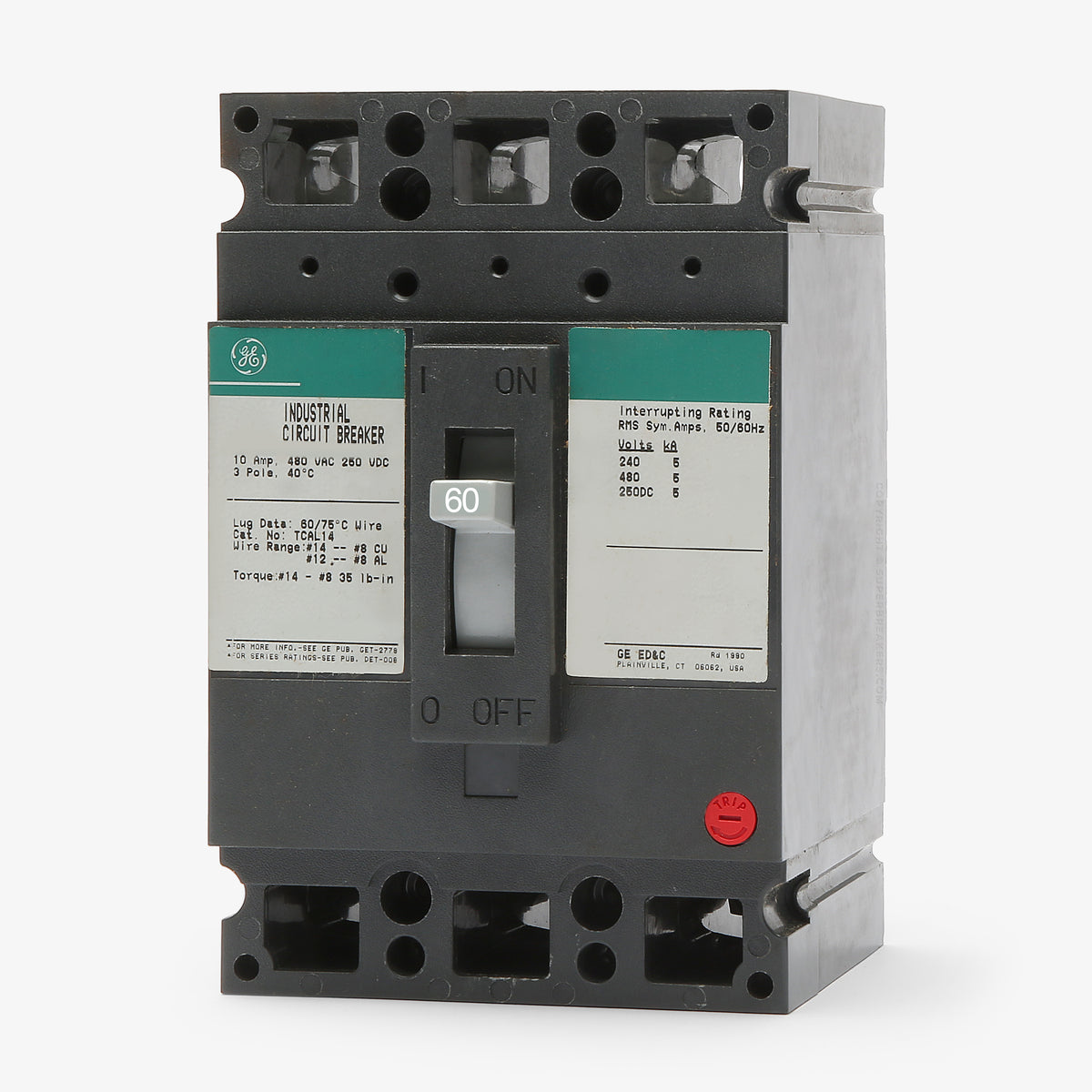

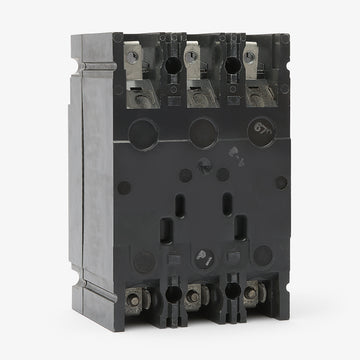

ABB / General Electric TED134060WL Molded Case Circuit Breaker

The "WL" suffix indicates the circuit breaker is shipped from the factory with copper/aluminum line and load side lugs installed. The core breaker mechanism, frame size, and electrical ratings are identical to the base TED134060.

This breaker is compatible with GE A-Series panelboards, Spectra Series switchboards, and specific GE motor control centers designed for bolt-on E150 line breakers.

Yes, TEB, TED, and THED breakers share the exact same E150 physical frame dimensions and mount identically. However, you must verify the interrupting rating meets your system fault current requirements. TED is the mid-tier rating, THED is high-interrupting, and TEB is standard-interrupting.

Yes. All GE TEB, TED, and THED molded case circuit breakers in this frame size are suitable for reverse feed wiring applications.

Yes, this unit is HACR rated, making it fully compliant for use with heating, air conditioning, and refrigeration equipment protection circuits.

The thermal magnetic trip elements are factory calibrated for continuous operation in a 40 degrees Celsius (104 degrees Fahrenheit) maximum ambient environment. Operating above this temperature may require load derating.

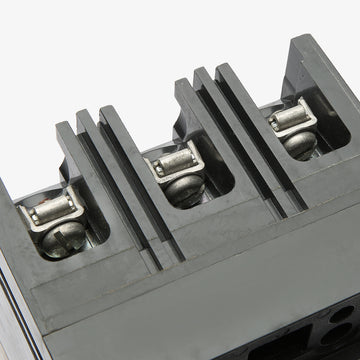

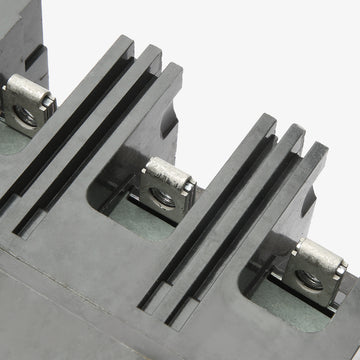

Yes. The included line and load lugs can be removed to accommodate direct busbar mounting or specialized compression terminals, provided the modifications match the panelboard manufacturer instructions.

While the factory-installed lugs are dual-rated for both copper and aluminum conductors, standard electrical safety practice requires applying a listed oxide-inhibiting joint compound to the stripped aluminum wire before termination to prevent galvanic corrosion.
