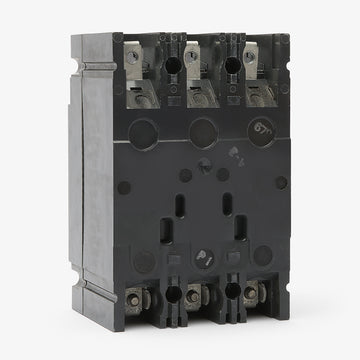

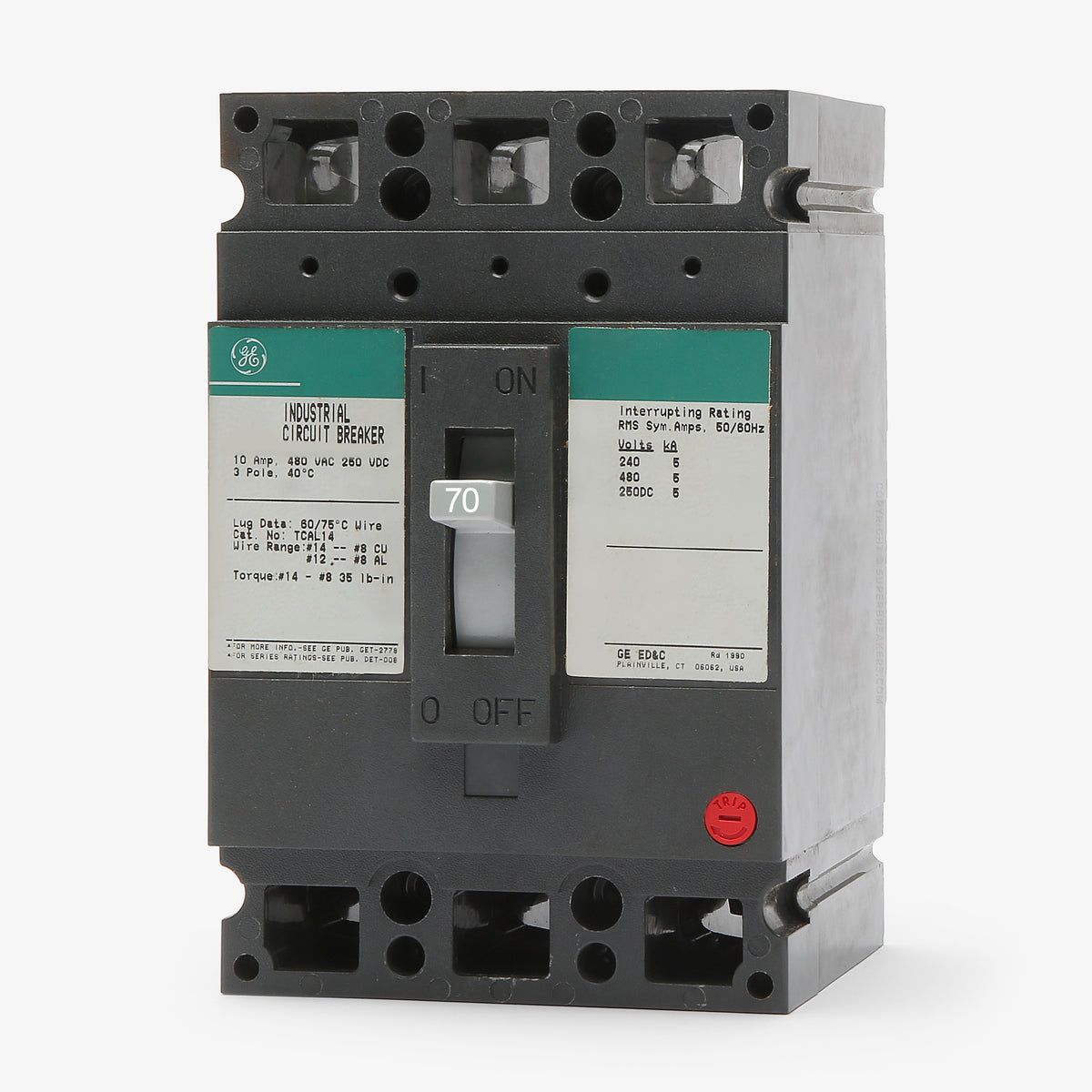

ABB / General Electric TED134070WL Molded Case Circuit Breaker
- 70A
- 3 Pole
- Unit Mount
ABB / General Electric
TED134070WL
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TED134070WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TED134070WL - 70A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric TED134070WL - 70A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TED134070WL |
| Series | TED |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 18kA @ 480VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Individual Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 3 AWG-3/0 AWG (Cu/Al) |
| Max Wire | 3/0 AWG |
| Min Wire | 3 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs (TCAL15) |
| Standards | HACR, UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Quantity
ABB / General Electric TED134070WL - 70A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TED134070WL-R |
| Series | TED |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 18kA @ 480VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Individual Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 3 AWG-3/0 AWG (Cu/Al) |
| Max Wire | 3/0 AWG |
| Min Wire | 3 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs (TCAL15) |
| Standards | HACR, UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Similar Items
ABB / General ElectricTED134080WL
80A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTED136080WL
80A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTED134060WL
60A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial applications, the GE TED134070WL is a 3-pole, 70A MCCB from the legacy E150 line. It delivers robust overcurrent protection for demanding systems. This unit mount breaker installs easily into individual enclosures and switchboards. The WL suffix indicates factory-installed Cu/Al line and load lugs. Rated for 18kAIC at 480VAC, it features a fixed thermal-magnetic trip with LI functions. The breaker is HACR rated and reverse feed capable.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TED134070WL |
| Series | TED |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 18kA @ 480VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Individual Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 3 AWG-3/0 AWG (Cu/Al) |
| Max Wire | 3/0 AWG |
| Min Wire | 3 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs (TCAL15) |
| Standards | HACR, UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
6 answersWhat does the "WL" suffix mean on the TED134070WL catalog number?

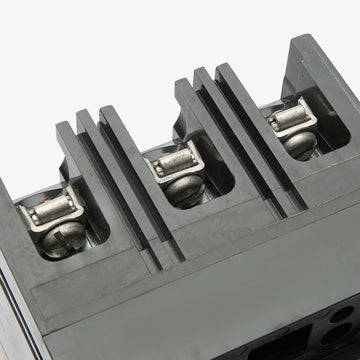

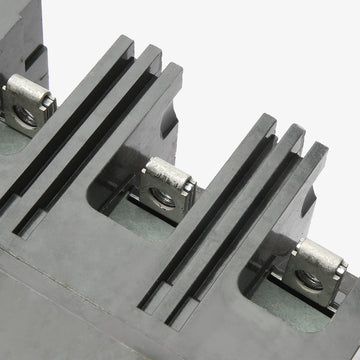

The "WL" suffix indicates that the circuit breaker comes factory-equipped with copper/aluminum (Cu/Al) line and load lugs. Breakers without this suffix may require purchasing terminal lugs separately.
Are GE TED series breakers like the TED134070WL suitable for reverse feed?
Yes, GE E150 line molded case circuit breakers, including the TED134070WL, are suitable for reverse feed wiring configurations.
Is the TED134070WL rated for HVAC equipment?
Yes, GE TED breakers rated above 10 amps, including this 70-amp model, are UL listed as HACR type for safe use with heating, air conditioning, and refrigeration equipment.
Can I adjust the trip settings on this 70A breaker?
No, the TED134070WL features a non-interchangeable thermal-magnetic trip unit with fixed long-time and instantaneous (LI) functions. The 70-amp rating cannot be altered in the field.
What is the maximum frame capacity for the TED134070WL?
This breaker belongs to the legacy GE E150 product line. While this specific unit is calibrated to trip at 70 amps, the E-frame chassis itself supports a maximum physical capacity of 150 amps at 600VAC.
What type of wire can I use with the included lugs?
The factory-installed lugs accept either copper (Cu) or aluminum (Al) conductors ranging in size from 3 AWG to 3/0 AWG.
