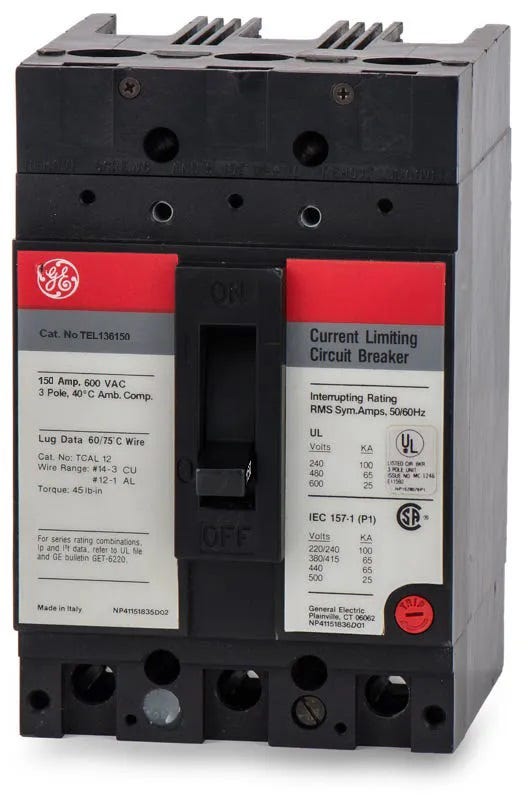

ABB / General Electric TEL136150 Miniature Circuit Breaker
- 150A
- 3 Pole
- Unit Mount
ABB / General Electric
TEL136150
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
TEL136150
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TEL136150 - 150A 3 Pole Miniature Circuit Breaker
Re-Certified
Quantity
Similar Items
ABB / General ElectricTEL136100WL
100A 3 Pole Miniature Circuit Breaker
ABB / General ElectricTEL136070WL
70A 3 Pole Miniature Circuit Breaker
ABB / General ElectricTEL136050WL
50A 3 Pole Miniature Circuit Breaker
Description
Built for demanding environments, the TEL136150 is a 3-pole, 150A current-limiting MCCB from GE's E-Frame family. It utilizes fixed thermal-magnetic trip technology. The unit-mount configuration fits GE A-Series panelboards, Spectra switchboards, and motor control centers. It replaces lower-interrupting TED136150 and THED136150 models. Delivering 65kAIC at 480V, this HACR-rated breaker restricts let-through current to safeguard downstream equipment from severe faults.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEL136150 |
| Series | TEL |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE Spectra Switchboards, Motor Control Centers |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Lug Kits, Alarm Switch |
|---|---|
| Accessories | Load Lugs (TCAL15) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated, High Interrupting Capacity, Non-Interchangeable Trip, Common Trip |
| Special Features | Current Limiting |
Product FAQs
7 answersWhich GE enclosures are compatible with the TEL136150?
This breaker is designed for use in GE A-Series panelboards, GE Spectra switchboards, and compatible motor control centers.
Can I use the TEL136150 to upgrade older GE E-frame breakers?
Yes, this high-interrupting model can directly replace standard TED136150 and THED136150 breakers in applications that now require a 65kAIC rating at 480V.
How does the current-limiting design benefit my electrical system?
Current-limiting breakers clear faults extremely fast, reducing the peak let-through energy. This minimizes thermal and mechanical damage to downstream circuits and equipment during a short circuit.
Are the terminals rated for aluminum wire?
Yes, the standard lugs on this breaker are dual-rated for both copper and aluminum conductors ranging from 4 AWG to 300 kcmil.
Is the TEL136150 suitable for DC power applications?
Yes, it is fully rated for direct current systems, offering a 10kA interrupting capacity at 250VDC and 500VDC.
How does this breaker mount inside the panelboard?
It utilizes a bolt-on connection for unit mounting, ensuring a secure and reliable mechanical connection to the busbar in high-fault environments.
Can I adjust the trip settings on this breaker?
No, this model features a fixed thermal and fixed magnetic trip unit, meaning the overload and short-circuit pickup levels cannot be modified in the field.
