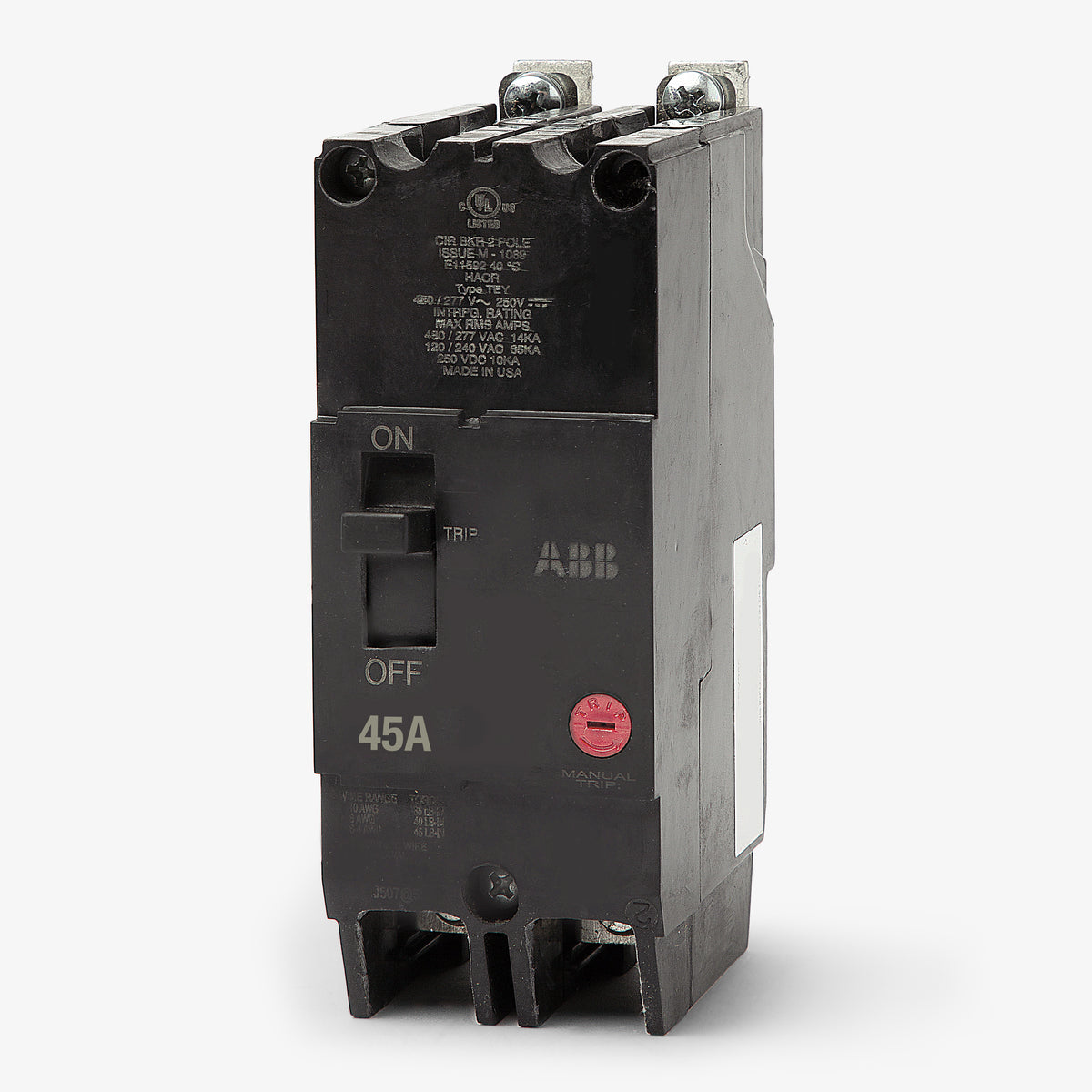

ABB / General Electric TEY245 Miniature Circuit Breaker
- 45A
- 2 Pole
- Bolt-On
ABB / General Electric
TEY245
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
TEY245
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TEY245 - 45A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
40A 2 Pole Miniature Circuit Breaker
60A 2 Pole Miniature Circuit Breaker
30A 2 Pole Miniature Circuit Breaker
Description
Built to handle demanding industrial loads, this 45A thermal-magnetic breaker delivers consistent performance in a compact footprint. It is designed for 120/240VAC and 480Y/277VAC applications. The TEY245 utilizes a sturdy bolt-on configuration that mounts into GE A-Series panelboards. It accommodates 10-4 AWG copper or 8-4 AWG aluminum conductors. Carrying a 14kAIC rating at 480Y/277V, the unit is HACR and HID rated for air conditioning and lighting circuits.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEY245 |
| Series | TEY |
| Amperage | 45A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC, 250VDC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 65kA @ 240VAC, 14kA @ 480Y/277VAC, 10kA @ 250VDC, 65kA @ 120/240VAC |
| Frame Type | TEY |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 10-4 AWG (Cu), 8-4 AWG (Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG (Cu), 8 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, HID, UL |
| Temp Rating | 40C |
| Construction Features | Common Trip, HACR Rated, HID Rated, Non-Interchangeable Trip, Quick-Make/Quick-Break |
Product FAQs
7 answersWhich panelboards are compatible with the TEY245?

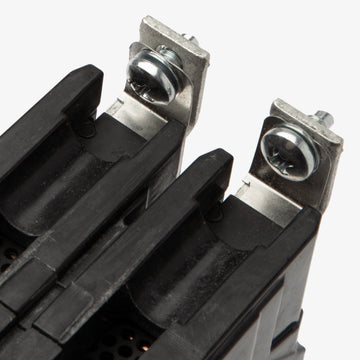

This breaker is designed for use in GE A-Series commercial panelboards, including AQ, AE, AL, and AD lighting panels. It mounts directly to the busbar using a bolt-on connection.
Can I install the TEY245 in a standard GE PowerMark Gold load center?
No. The TEY245 is a bolt-on circuit breaker for commercial A-Series panelboards. It will not fit into residential PowerMark Gold or Plus load centers, which require plug-on THQL or THQP breakers.

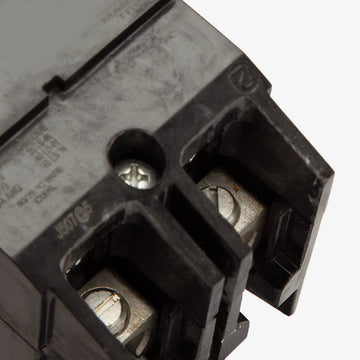

What is the recommended lug tightening torque for the TEY245?
The torque depends on the wire size used. For 10 AWG wire, torque to 35 in-lb. For 8 AWG wire, torque to 40 in-lb. For 6 AWG to 4 AWG wire, torque to 45 in-lb.
Can this breaker be used in a 480V Delta system?
No. The TEY245 has a slash rating of 480Y/277V, meaning it is only suitable for solidly grounded wye systems where the voltage to ground does not exceed 277V. It is not rated for ungrounded or corner-grounded 480V Delta systems.
Is the TEY245 suitable for direct current applications?
Yes, this breaker carries a DC interrupting rating of 10kA at 250VDC, making it suitable for specific direct current circuits.
Is there a higher interrupting capacity version of the TEY245?
Yes. If your application requires a higher fault current rating at 480Y/277V, you can use the TEYF245 for 18kAIC or the TEYL245 for 65kAIC.
Does the TEY245 mount to a standard DIN rail?
No, the TEY245 is a bolt-on molded case circuit breaker designed specifically to bolt directly to the busbar in compatible GE panelboards. It does not have a DIN rail mounting clip.
