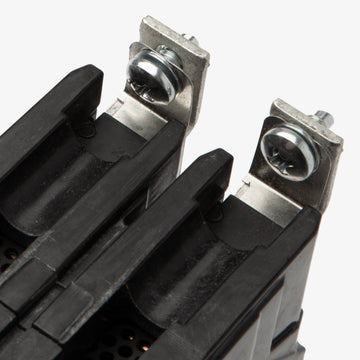

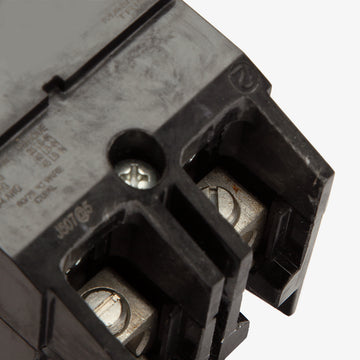

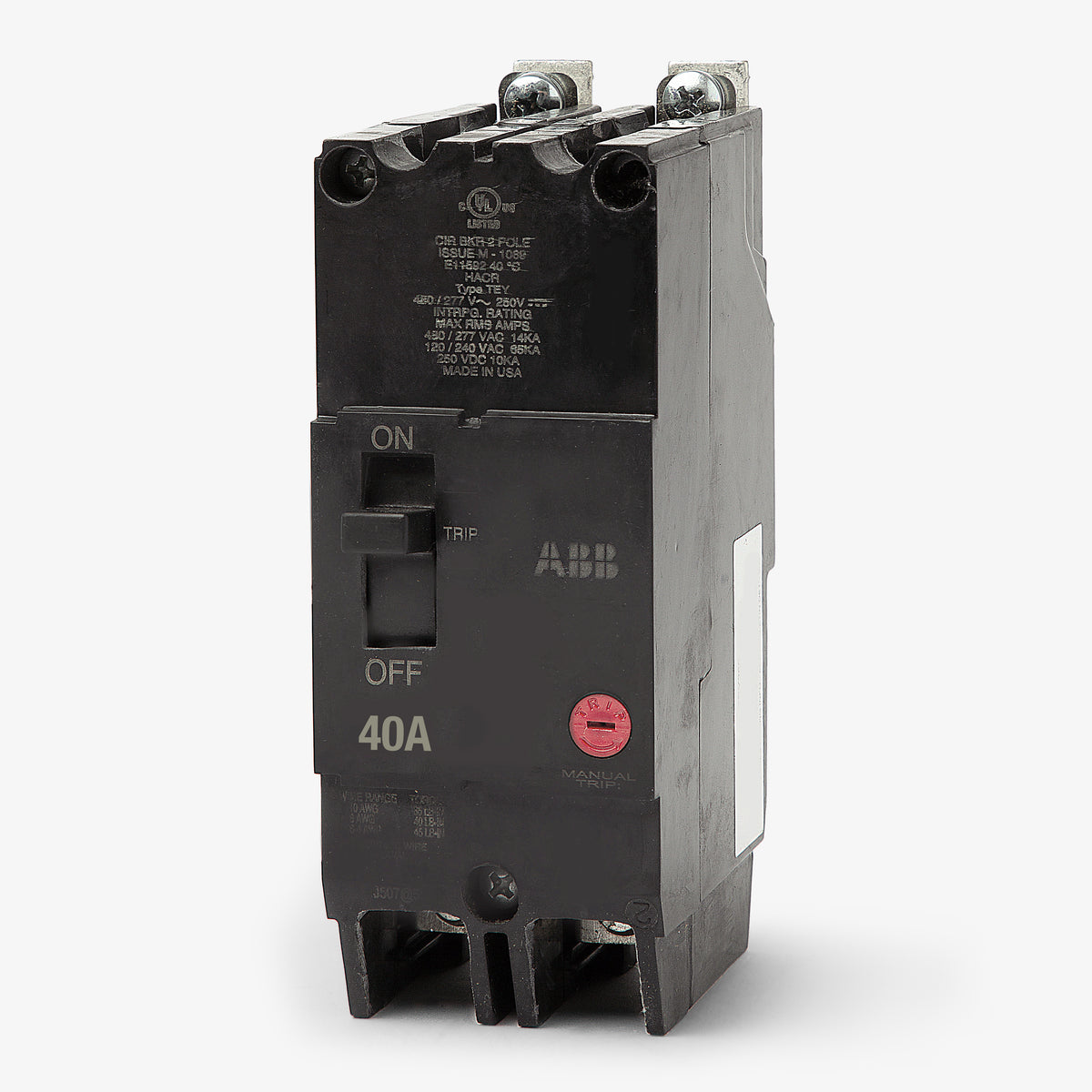

ABB / General Electric TEY240 Miniature Circuit Breaker
- 40A
- 2 Pole
- Bolt-On
ABB / General Electric
TEY240
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
TEY240
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TEY240 - 40A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
ABB / General Electric TEY240 - 40A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEY240 |
| Series | TEY |
| Amperage | 40A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC, 250VDC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 65kA @ 240VAC, 14kA @ 480Y/277VAC, 10kA @ 250VDC, 65kA @ 120/240VAC |
| Frame Type | TEY |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Lighting Panelboards |
| Wire Gauge | 10-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Handle Lock |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, HID, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Common Trip, Quick-Make/Quick-Break, Non-Interchangeable Trip |
Sold out
Quantity
ABB / General Electric TEY240 - 40A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEY240-R |
| Series | TEY |
| Amperage | 40A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC, 250VDC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 65kA @ 240VAC, 14kA @ 480Y/277VAC, 10kA @ 250VDC, 65kA @ 120/240VAC |
| Frame Type | TEY |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Lighting Panelboards |
| Wire Gauge | 10-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Handle Lock |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, HID, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Common Trip, Quick-Make/Quick-Break, Non-Interchangeable Trip |
Similar Items
50A 2 Pole Miniature Circuit Breaker
30A 2 Pole Miniature Circuit Breaker
25A 2 Pole Miniature Circuit Breaker
Description
Designed for heavy-duty commercial applications, this 40-amp, two-pole breaker delivers consistent overload and short-circuit protection. It fastens securely into GE A-Series lighting panelboards via a bolt-on connection, ensuring maximum stability in high-vibration environments. The unit boasts a 14 kAIC rating at 480Y/277V and 65 kAIC at 120/240V, complete with HACR and HID certifications, a common trip bar, and a highly visible trip indicator for simplified troubleshooting.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEY240 |
| Series | TEY |
| Amperage | 40A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC, 250VDC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 65kA @ 240VAC, 14kA @ 480Y/277VAC, 10kA @ 250VDC, 65kA @ 120/240VAC |
| Frame Type | TEY |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Lighting Panelboards |
| Wire Gauge | 10-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Handle Lock |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, HID, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Common Trip, Quick-Make/Quick-Break, Non-Interchangeable Trip |
Product FAQs
6 answersWhich panelboards are compatible with the TEY240 circuit breaker?
This bolt-on breaker is designed specifically for use in GE A-Series lighting panelboards. It is not compatible with standard residential load centers that require plug-in or snap-in breakers.
What wire sizes and materials are accepted by the TEY240 terminals?
The factory-installed lugs accept 10 AWG to 4 AWG wire. Both copper (Cu) and aluminum (Al) conductors are permitted. Ensure proper torque specifications are followed during installation as outlined by the manufacturer.
Can the TEY240 be used in DC voltage applications?
Yes, this thermal magnetic breaker carries a DC rating of 250VDC with a 10kA interrupting capacity, making it suitable for specific direct current control circuits or battery systems alongside its standard AC ratings.
Is there a difference between the ABB TEY240 and the GE TEY240?
No. ABB acquired GE Industrial Solutions, so the TEY240 is manufactured to the exact same specifications. You may receive stock branded as either ABB or General Electric, but they are identical in form, fit, and function.
Does the TEY240 require a separate mounting hardware kit?
As a bolt-on breaker, it secures directly to the busbar of compatible A-Series panelboards using the integrated mounting screws. No separate mounting kit is required for standard installation.
What safety precautions apply when installing a bolt-on breaker like the TEY240?
Always de-energize the panelboard before installing or servicing bolt-on breakers. Because the breaker bolts directly to the busbar, working on live equipment poses a severe arc flash and shock hazard. Verify the power is off using a properly rated voltage detector.
