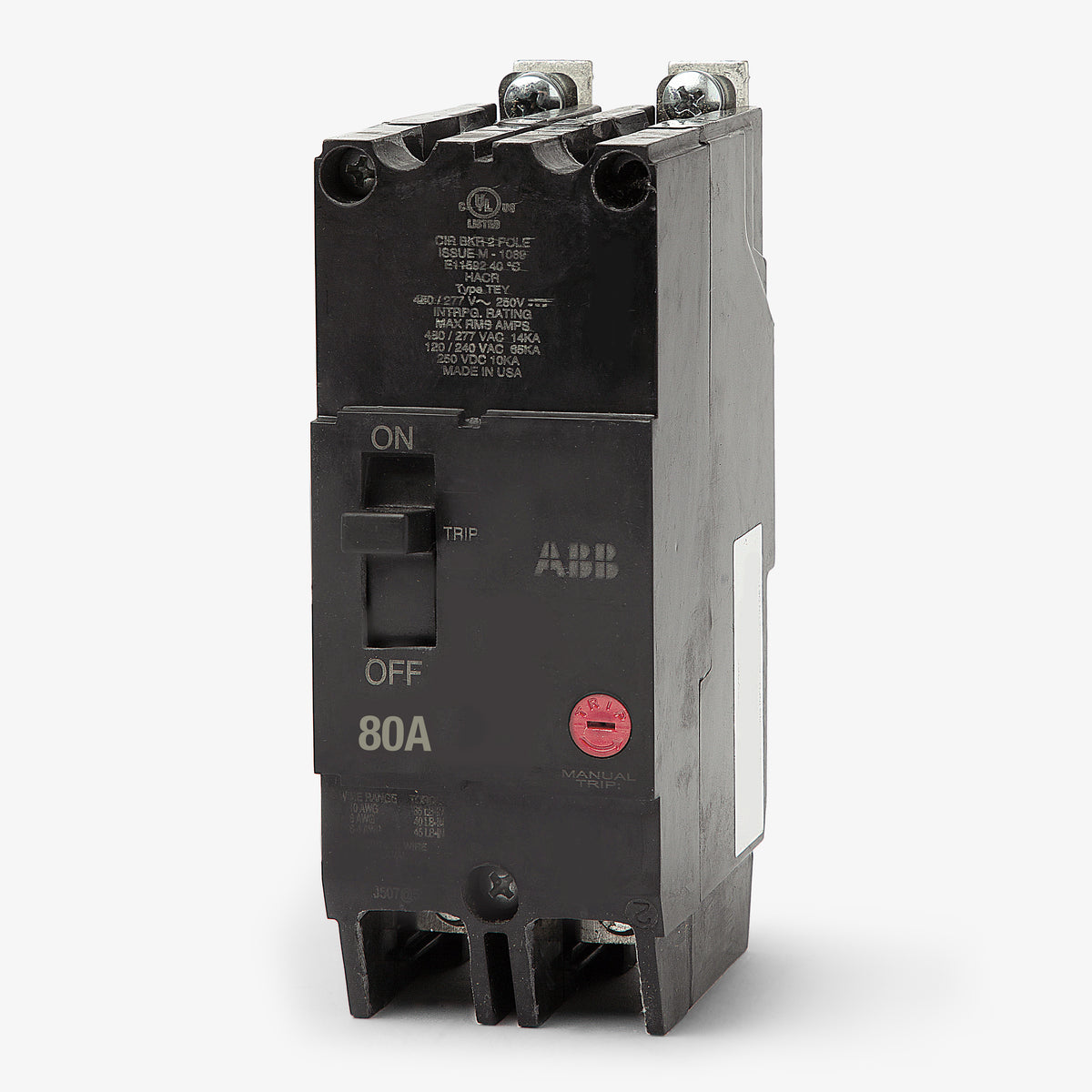

ABB / General Electric TEY280 Miniature Circuit Breaker
- 80A
- 2 Pole
- Bolt-On
ABB / General Electric
TEY280
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
TEY280
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TEY280 - 80A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
ABB / General Electric TEY280 - 80A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEY280 |
| Series | TEY |
| Amperage | 80A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC, 250VDC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 65kA @ 240VAC, 14kA @ 480Y/277VAC, 10kA @ 250VDC, 65kA @ 120/240VAC |
| Frame Type | TEY |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Lighting Panelboards, GE AE Lighting Panelboards, GE AS Lighting Panelboards |
| Wire Gauge | 4 AWG - 1/0 AWG (Cu), 2 AWG - 1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG (Cu), 2 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Shunt Trip, Undervoltage Release, Padlock Attachment, Handle Lock, Mounting Base |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip, Quick-Make/Quick-Break |
Quantity
ABB / General Electric TEY280 - 80A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEY280-R |
| Series | TEY |
| Amperage | 80A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC, 250VDC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 65kA @ 240VAC, 14kA @ 480Y/277VAC, 10kA @ 250VDC, 65kA @ 120/240VAC |
| Frame Type | TEY |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Lighting Panelboards, GE AE Lighting Panelboards, GE AS Lighting Panelboards |
| Wire Gauge | 4 AWG - 1/0 AWG (Cu), 2 AWG - 1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG (Cu), 2 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Shunt Trip, Undervoltage Release, Padlock Attachment, Handle Lock, Mounting Base |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip, Quick-Make/Quick-Break |
Similar Items
70A 2 Pole Miniature Circuit Breaker
100A 2 Pole Miniature Circuit Breaker
60A 2 Pole Miniature Circuit Breaker
Description
The GE TEY280 is a 2-pole, 80A miniature circuit breaker for commercial power distribution. It provides dependable thermal-magnetic trip functions for overload and short-circuit protection. Featuring a bolt-on mounting style, it installs securely into GE A-Series, AE, and AS lighting panelboards. It accepts 4 AWG to 1/0 AWG copper or aluminum wire. Rated for 65kAIC at 240V and 14kAIC at 480Y/277V, it includes a common trip bar and quick-make/quick-break mechanism. It is also HACR rated.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEY280 |
| Series | TEY |
| Amperage | 80A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC, 250VDC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 65kA @ 240VAC, 14kA @ 480Y/277VAC, 10kA @ 250VDC, 65kA @ 120/240VAC |
| Frame Type | TEY |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Lighting Panelboards, GE AE Lighting Panelboards, GE AS Lighting Panelboards |
| Wire Gauge | 4 AWG - 1/0 AWG (Cu), 2 AWG - 1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG (Cu), 2 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Shunt Trip, Undervoltage Release, Padlock Attachment, Handle Lock, Mounting Base |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip, Quick-Make/Quick-Break |
Product FAQs
7 answersWhich panelboards are compatible with the TEY280 circuit breaker?
The TEY280 is a bolt-on branch breaker designed specifically for use in GE A-Series, AE, and AS lighting panelboards.

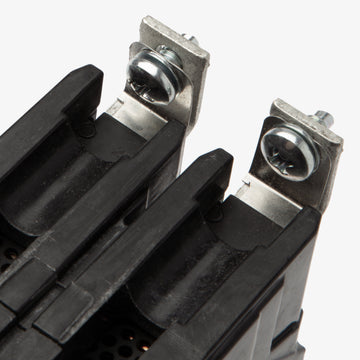

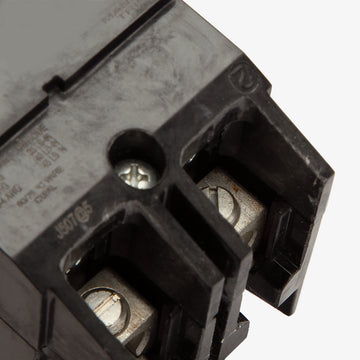

What wire sizes are accepted by the TEY280 lugs, and what is the required torque?
The TEY280 accepts 4 AWG to 1/0 AWG copper wire, or 2 AWG to 1/0 AWG aluminum wire. The required lug torque is 45 in-lb for 4 AWG conductors, and 50 in-lb for 3 AWG through 1/0 AWG conductors.
Can the TEY280 be used in DC circuits?
Yes, the TEY280 is rated for DC applications with an interrupting capacity of 10kAIC at 250VDC.
Is there a difference between the ABB TEY280 and the GE TEY280?
No. Following ABB's acquisition of GE Industrial Solutions, the TEY280 is manufactured to the exact same specifications under the ABB and GE brands. They are identical, interchangeable bolt-on breakers.
Does the TEY280 mount on a standard DIN rail?
No, the TEY280 is a bolt-on molded case circuit breaker designed to bolt directly to the busbars of compatible GE panelboards. It is not compatible with DIN rail mounting.
What is the interrupting capacity of the TEY280 on a 240V system?
While the TEY280 is rated 14kAIC at 480Y/277VAC, its short-circuit interrupting capacity increases to 65kAIC when used on 120/240VAC systems.
Does the TEY280 include ground fault or arc fault protection?
No, the TEY280 features standard thermal-magnetic trip technology with fixed long-time and instantaneous (LI) trip functions. It does not provide GFCI or AFCI protection.
