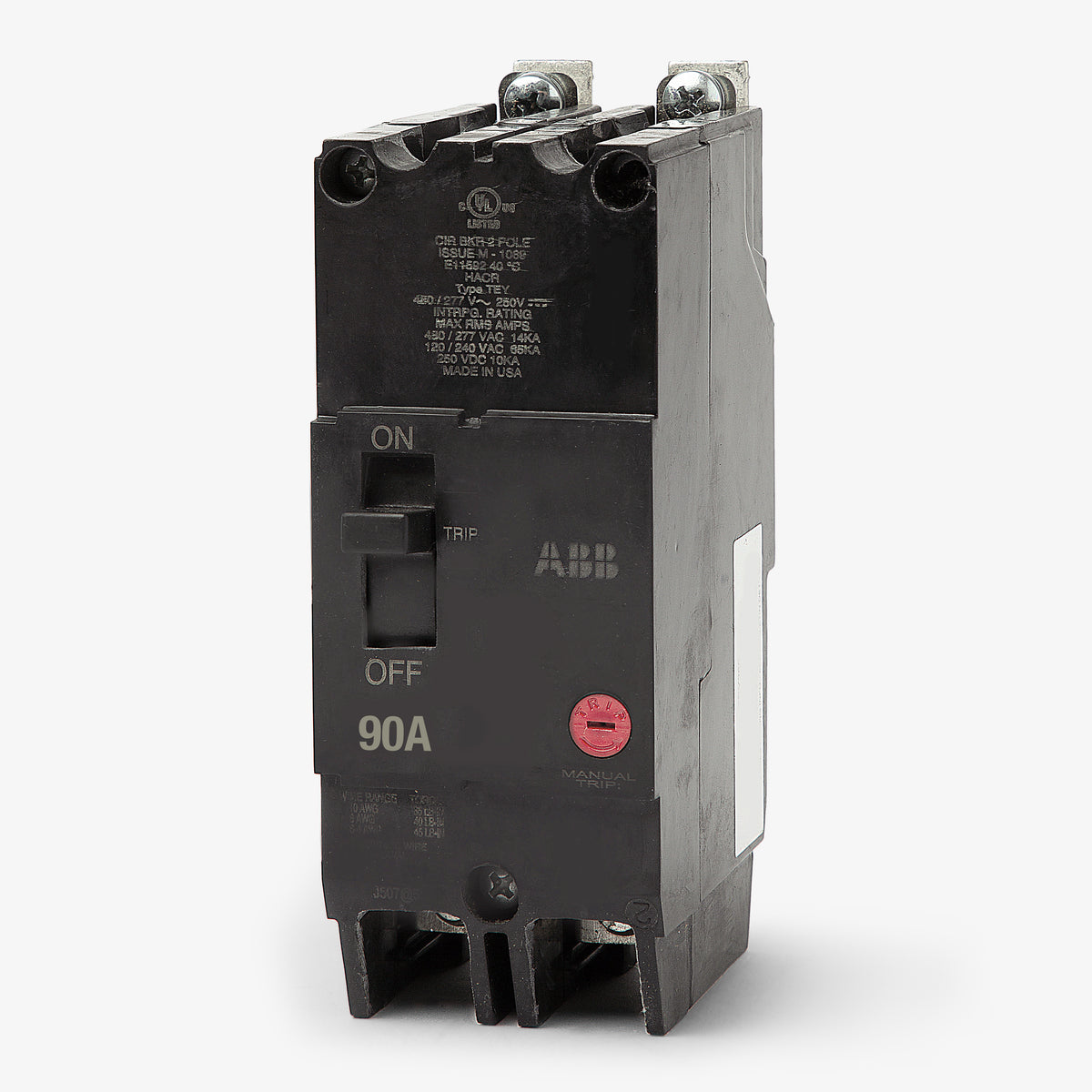

ABB / General Electric TEY290 Miniature Circuit Breaker
- 90A
- 2 Pole

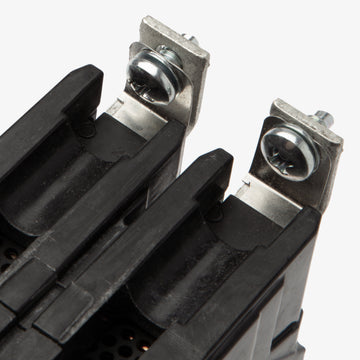

- Bolt-On
ABB / General Electric
TEY290
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
TEY290
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TEY290 - 90A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
ABB / General Electric TEY290 - 90A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEY290 |
| Series | TEY |
| Amperage | 90A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC, 250VDC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 65kA @ 240VAC, 14kA @ 480Y/277VAC, 10kA @ 250VDC, 65kA @ 120/240VAC |
| Frame Type | TEY |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 4 AWG - 1/0 AWG (Cu), 2 AWG - 1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG (Cu), 2 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | Common Trip, HACR Rated, HID Rated, Non-Interchangeable Trip, Quick-Make/Quick-Break |
Quantity
ABB / General Electric TEY290 - 90A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEY290-R |
| Series | TEY |
| Amperage | 90A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC, 250VDC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 65kA @ 240VAC, 14kA @ 480Y/277VAC, 10kA @ 250VDC, 65kA @ 120/240VAC |
| Frame Type | TEY |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 4 AWG - 1/0 AWG (Cu), 2 AWG - 1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG (Cu), 2 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | Common Trip, HACR Rated, HID Rated, Non-Interchangeable Trip, Quick-Make/Quick-Break |
Similar Items
80A 2 Pole Miniature Circuit Breaker
70A 2 Pole Miniature Circuit Breaker
60A 2 Pole Miniature Circuit Breaker
Description
Designed for commercial use, the GE TEY290 is a 2-pole, 90A miniature circuit breaker. It delivers consistent thermal-magnetic protection to prevent damage from overloads and short circuits. Featuring a bolt-on mounting configuration, it installs seamlessly into GE A-Series panelboards. The integrated lug terminals support 4 AWG to 1/0 AWG copper or aluminum wiring. Delivering 65kAIC at 240V and 14kAIC at 480Y/277V, it includes a quick-make/quick-break mechanism and is HACR rated.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEY290 |
| Series | TEY |
| Amperage | 90A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC, 250VDC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 65kA @ 240VAC, 14kA @ 480Y/277VAC, 10kA @ 250VDC, 65kA @ 120/240VAC |
| Frame Type | TEY |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 4 AWG - 1/0 AWG (Cu), 2 AWG - 1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG (Cu), 2 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | Common Trip, HACR Rated, HID Rated, Non-Interchangeable Trip, Quick-Make/Quick-Break |
Product FAQs
6 answersWhich panelboards are compatible with the TEY290 circuit breaker?
The TEY290 is designed specifically for GE A-Series lighting panelboards. It bolts directly onto the panelboard bus and is not compatible with standard load centers or DIN rail systems.

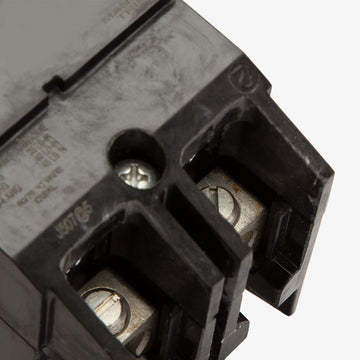

What is the recommended lug tightening torque for the TEY290?
The required torque depends on the wire size being installed. For #4 AWG conductors, torque the lugs to 45 in-lb. For #3 to 1/0 AWG conductors, torque to 50 in-lb.
Will the TEY290 arrive with GE or ABB branding?
Because ABB acquired GE Industrial Solutions, this breaker may be branded as either GE or ABB. Both versions are functionally identical, share the same TEY290 catalog number, and are exact drop-in replacements.
What is the physical width of the TEY290 breaker?
TEY frame circuit breakers measure 1 inch wide per pole. As a 2-pole breaker, the TEY290 has an overall width of 2 inches.
What does the LI trip function code mean for this breaker?
The LI designation indicates that the breaker uses a thermal-magnetic trip unit providing Long-Time (thermal overload) and Instantaneous (magnetic short-circuit) protection. On the TEY290, these trip settings are fixed and cannot be adjusted.
Can the TEY290 be used on a 480V ungrounded delta system?
No. The TEY290 has a slash voltage rating of 277/480VAC. Per the NEC, slash-rated breakers can only be installed on solidly grounded wye systems where the line-to-ground voltage does not exceed 277V. It is not suitable for ungrounded or corner-grounded 480V delta systems.
