ABB / General Electric TEY335 Miniature Circuit Breaker
- 35A
- 3 Pole
- Bolt-On
ABB / General Electric
TEY335
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
TEY335
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

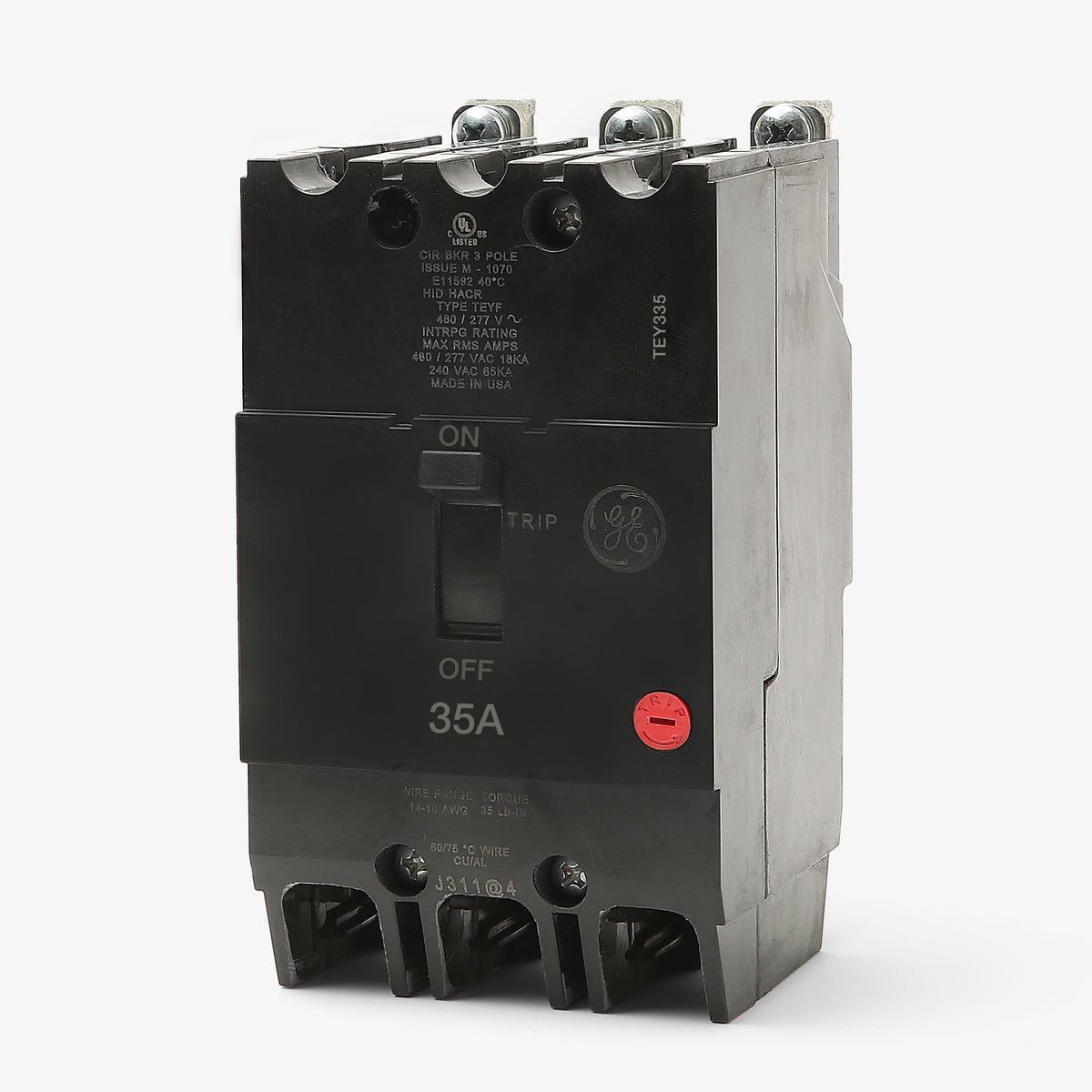

ABB / General Electric TEY335 - 35A 3 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTEY340ST12
40A 3 Pole Miniature Circuit Breaker
30A 3 Pole Miniature Circuit Breaker
ABB / General ElectricTEY330ST12
30A 3 Pole Miniature Circuit Breaker
Description
Part of the Q-Line family, this 35-amp miniature circuit breaker provides dependable thermal-magnetic protection for commercial and industrial applications. The unit fastens securely into GE A-Series, AE, and AS lighting panelboards to establish a solid electrical connection. Rated for 14kAIC at 480Y/277VAC, it features common trip functionality and is HACR and HID rated, making it highly suitable for specialized lighting and HVAC equipment loads.Specifications
| Brand | ABB / General Electric |
|---|---|
| Series | TEY |
| Amperage | 35A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC, 250VDC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 120VAC, 65kA @ 240VAC, 14kA @ 480Y/277VAC, 10kA @ 250VDC, 65kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Lighting Panelboards, GE AE Lighting Panelboards, GE AS Lighting Panelboards |
| Wire Gauge | 10-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment, Mounting Base |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, HID, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Common Trip, Quick-Make/Quick-Break |
Product FAQs
6 answersWill the TEY335 fit a standard residential load center?
No. Although it is part of the Q-Line family, the TEY335 is a bolt-on breaker designed strictly for commercial GE A-Series, AE, and AS lighting panelboards. It will not fit standard residential plug-on panels.
Are there direct replacements with a higher interrupting rating for 480Y/277V systems?
Yes. If your application requires more than 14kAIC at 277/480VAC, you can upgrade to higher-tier breakers that share the exact same dimensions and mounting. Direct drop-in upgrades include the TEYF335 (18kAIC), TEYD335 (25kAIC), TEYH335 (35kAIC), and TEYL335 (65kAIC).

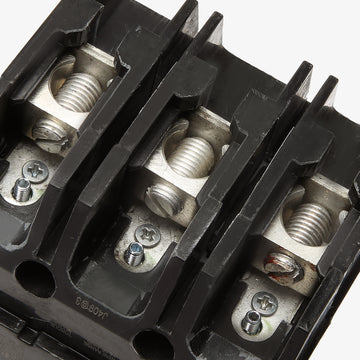

What are the torque specifications for the TEY335 load lugs?
The required load lug torque depends on the conductor size being installed. Torque 10 AWG wire to 35 in-lbs, 8 AWG wire to 40 in-lbs, and 6 to 4 AWG wire to 45 in-lbs.
Is the TEY335 rated for heating and cooling equipment loads?
Yes. The TEY335 carries an official HACR rating, making it approved for use with Heating, Air Conditioning, and Refrigeration equipment branch circuits.
Can this breaker be used for HID lighting circuits?
Yes. GE TEY series circuit breakers rated 50 amps and below, including the 35-amp TEY335, are UL listed for switching High Intensity Discharge (HID) lighting loads.
Is the TEY335 suitable for reverse feed applications?
Yes. This circuit breaker does not have strict line or load side restrictions and is rated as suitable for reverse feed, meaning it can be safely backfed if your panel configuration requires it.
