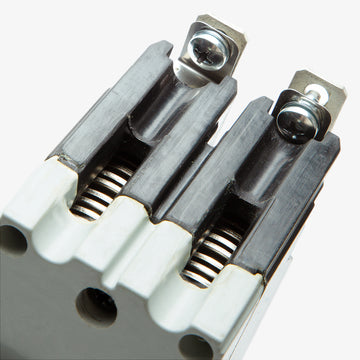

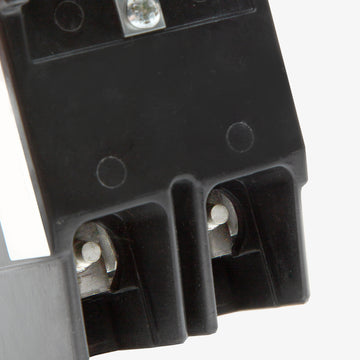

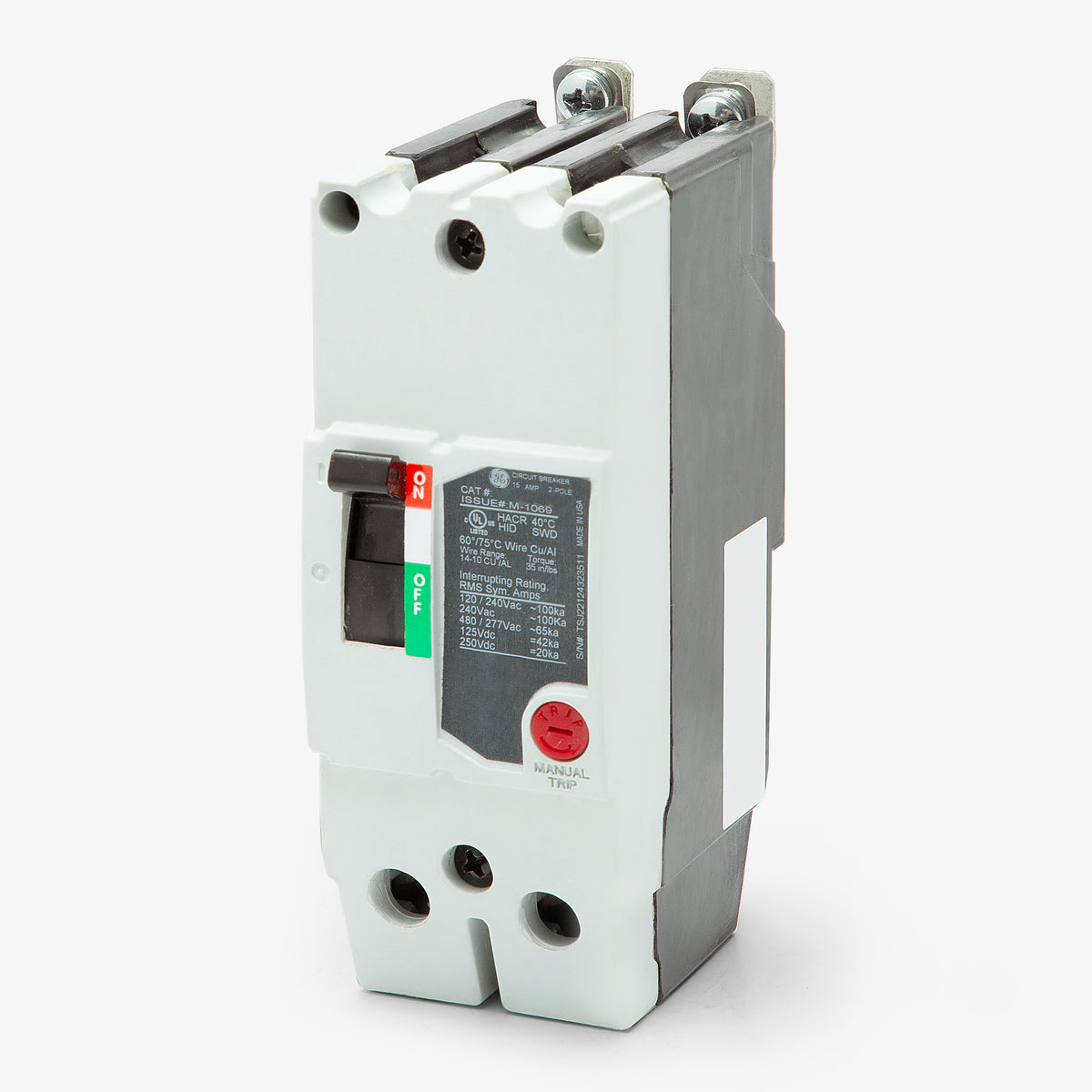

ABB / General Electric TEYD2015B Miniature Circuit Breaker
- 15A
- 2 Pole
- Bolt-On
ABB / General Electric
TEYD2015B
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
TEYD2015B
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TEYD2015B - 15A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTEYD2030B
30A 2 Pole Miniature Circuit Breaker
ABB / General ElectricTEYD2040B
40A 2 Pole Miniature Circuit Breaker
ABB / General ElectricTEYD2050B
50A 2 Pole Miniature Circuit Breaker
Description
Engineered for commercial power distribution, the GE TEYD2015B is a 2-pole, 15A miniature circuit breaker from the Q-Line family. It provides robust thermal-magnetic protection for branch circuits across demanding environments. This unit bolts securely into GE A-Series lighting panelboards. It accepts 14-10 AWG copper or aluminum conductors via load side lugs. Rated 25kAIC at 480Y/277VAC, it features a quick-make, quick-break mechanism and is both HACR and HID rated.Specifications
| Brand | ABB / General Electric |
|---|---|
| Series | TEYD |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 250VDC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480Y/277VAC, 10kA @ 250VDC, 65kA @ 120/240VAC |
| Frame Type | TEY |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Lighting Panelboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment, Mounting Base |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Common Trip, Quick-Make/Quick-Break, Non-Interchangeable Trip |
Product FAQs
7 answersWhat panelboards are compatible with the TEYD2015B circuit breaker?
The TEYD2015B is designed specifically for use in GE A-Series lighting panelboards. It features a bolt-on mounting style and will not fit in standard residential Q-Line plug-on load centers.
What is the difference between the TEYD2015B and standard TEY or TEYH breakers?
The difference is the short-circuit interrupting capacity at 480Y/277VAC. The TEYD series is rated for 25kAIC, while the standard TEY is rated for 14kAIC and the TEYH is rated for 35kAIC.
Can the TEYD2015B be used in DC applications?
Yes, this breaker is rated for up to 250VDC with an interrupting capacity of 10kAIC, making it suitable for specific industrial or direct-current control applications.
Are the trip settings adjustable on the TEYD2015B?
No, this breaker features fixed thermal and fixed magnetic trip settings for both long-time and instantaneous overcurrent protection.
What wire sizes are accepted by the lugs on the TEYD2015B?
The load side lugs accept 14-10 AWG copper (Cu) or 12-10 AWG aluminum (Al) conductors. Ensure proper torque is applied during installation as specified on the breaker label.
How does the TEYD2015B mount to the panelboard?
It is a bolt-on circuit breaker, meaning it requires screws to securely attach to the panelboard busbar. This provides a stable, vibration-resistant connection compared to standard plug-on breakers.
Is the TEYD2015B manufactured by ABB or General Electric?
ABB acquired GE Industrial Solutions, so this breaker may arrive branded as either ABB or GE. The product remains identical in form, fit, and function regardless of the label.
