ABB / General Electric TEYF3100 Miniature Circuit Breaker
- 100A
- 3 Pole
- Bolt-On
ABB / General Electric
TEYF3100
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
TEYF3100
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

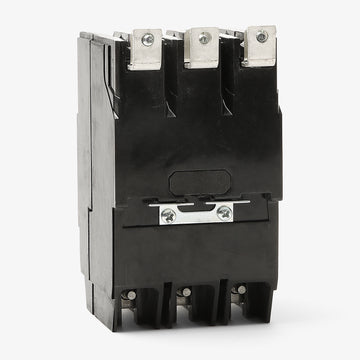

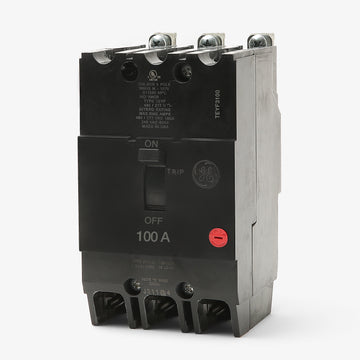

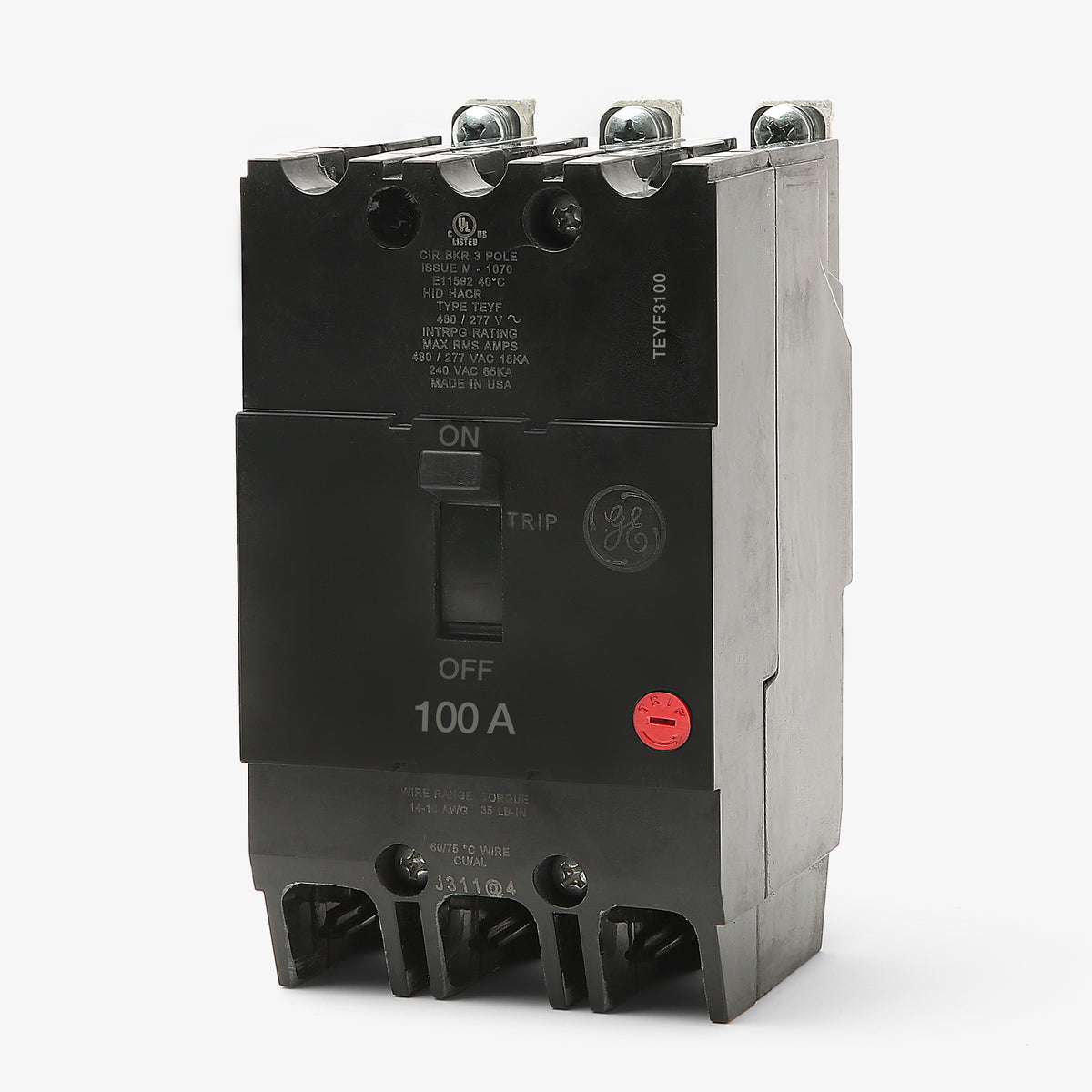

ABB / General Electric TEYF3100 - 100A 3 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
80A 3 Pole Miniature Circuit Breaker
70A 3 Pole Miniature Circuit Breaker
3 Pole Circuit Breaker
Description
Engineered for commercial applications, the GE TEYF3100 is a 3-pole, 100A miniature circuit breaker from the Q-Line family. It features a thermal-magnetic trip unit to protect against overloads and short circuits. This bolt-on breaker installs securely into GE A-Series lighting panelboards. It accepts 4-1/0 AWG wire via standard lug terminals. Rated 18 kAIC at 480Y/277V, it includes a quick-make/quick-break mechanism and a common trip bar. The unit is also HACR rated for HVAC equipment.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEYF3100 |
| Series | TEYF |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 277VAC, 480Y/277VAC, 250VDC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 18kA @ 277VAC, 18kA @ 480Y/277VAC, 10kA @ 250VDC, 65kA @ 120/240VAC |
| Frame Type | TEY |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Lighting Panelboards |
| Wire Gauge | 4-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5.1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Non-Interchangeable Trip, Reverse Feed |
Product FAQs
6 answersWhat panelboards are compatible with the TEYF3100 circuit breaker?

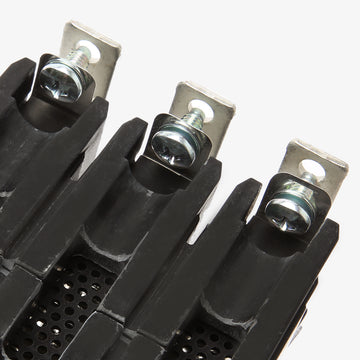

The TEYF3100 is designed specifically for use in GE A-Series lighting panelboards. It features a bolt-on mounting design that connects directly to the panelboard bus.
What is the difference between GE TEY and TEYF circuit breakers?
The difference lies in the short-circuit interrupting rating at 480Y/277VAC. Standard TEY breakers are rated at 14kAIC, while TEYF breakers offer a higher interrupting capacity of 18kAIC at 480Y/277VAC. Both share the exact same physical dimensions and mounting footprint.

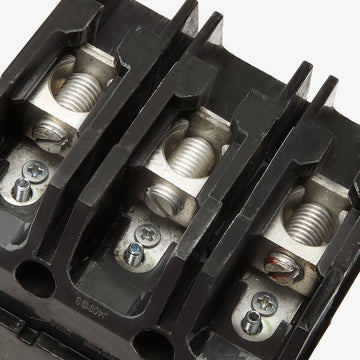

What is the recommended lug tightening torque for the TEYF3100?
For the factory-installed lugs, the required tightening torque depends on the wire size. Torque 4 AWG wire to 45 in-lb, and 3 AWG through 1/0 AWG wire to 50 in-lb.
Why might this breaker arrive with ABB branding instead of General Electric?
ABB acquired GE Industrial Solutions, meaning current production of this breaker may carry either the ABB or GE logo. Regardless of the branding, the TEYF3100 is the exact same component manufactured to the original GE specifications.
Can the TEYF3100 be used in DC applications?
Yes, this thermal-magnetic breaker is UL listed for direct current systems up to 250VDC, making it suitable for specific non-alternating current installations.
Is the TEYF3100 HACR rated?
Yes, like most breakers in the GE TEY family, the TEYF3100 is UL listed for HACR (Heating, Air Conditioning, and Refrigeration) applications.
