General Electric TEYF360 Circuit Breaker
- 60A
- 3 Pole
- Bolt-On
General Electric
TEYF360
Circuit Breaker
Brand
General Electric
SKU
TEYF360
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
General Electric TEYF360 3 Pole Circuit Breaker
New
Quantity
Quantity
General Electric TEYF360 3 Pole Circuit Breaker
New
Quantity
| Brand | General Electric |
|---|---|
| Part Number | TEYF360 |
| Series | TEYF |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 480VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 18kA @ 277VAC, 18kA @ 480Y/277VAC, 10kA @ 250VDC, 65kA @ 120/240VAC |
| Frame Type | TEY |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Lighting Panelboards |
| Wire Gauge | 10-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Padlock Attachment, Handle Lock, Mounting Base |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5.1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip, Quick-Make/Quick-Break, Visual Trip Indicator, Reverse Feed |
Quantity
General Electric TEYF360 3 Pole Circuit Breaker
Re-Certified
Quantity
| Brand | General Electric |
|---|---|
| Series | TEYF |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 480VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 18kA @ 277VAC, 18kA @ 480Y/277VAC, 10kA @ 250VDC, 65kA @ 120/240VAC |
| Frame Type | TEY |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Lighting Panelboards |
| Wire Gauge | 10-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Padlock Attachment, Handle Lock, Mounting Base |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5.1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip, Quick-Make/Quick-Break, Visual Trip Indicator, Reverse Feed |
Similar Items
50A 3 Pole Miniature Circuit Breaker
45A 3 Pole Miniature Circuit Breaker
80A 3 Pole Miniature Circuit Breaker
Description

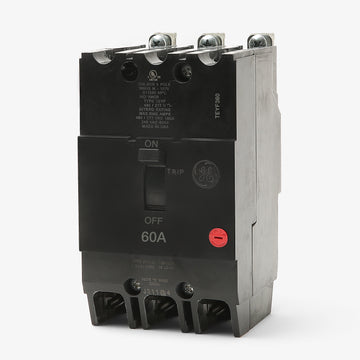

General Electric TEYF360 3 Pole Circuit Breaker
The General Electric TEYF360 is a 3 Pole thermal molded case circuit breaker with a current rating of 60 Amps and a voltage rating of 480VAC. It has an interrupting rating of 18kAIC at 480V. The TEYF360 has a bolt-on connection type and includes LI - long time and instantaneous trip functions.
Specifications
| Brand | General Electric |
|---|---|
| Part Number | TEYF360 |
| Series | TEYF |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 480VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 18kA @ 277VAC, 18kA @ 480Y/277VAC, 10kA @ 250VDC, 65kA @ 120/240VAC |
| Frame Type | TEY |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Lighting Panelboards |
| Wire Gauge | 10-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Padlock Attachment, Handle Lock, Mounting Base |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5.1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip, Quick-Make/Quick-Break, Visual Trip Indicator, Reverse Feed |
Product FAQs
6 answersWhich panelboards are compatible with the TEYF360 circuit breaker?
This breaker is designed exclusively for bolt-on installation in GE A-Series lighting panelboards. It is not compatible with standard Q-Line residential load centers.
What is the difference between the GE TEY, TEYF, and TEYD series breakers?
These breaker families share the same 1-inch per pole footprint and fit A-Series panelboards, but they offer different short-circuit interrupting ratings at 480Y/277VAC. The standard TEY series is rated at 14kAIC, the TEYF series at 18kAIC, and the TEYD series at 25kAIC.
What are the recommended lug torque specifications for the TEYF360?
The required torque depends on the wire size used. Torque 10 AWG wire to 35 in-lb, 8 AWG to 40 in-lb, and 6 to 4 AWG wire to 45 in-lb.
Can the TEYF360 be used as a standalone unit-mount breaker?
Yes. While it is primarily a bolt-on breaker for panelboards, it can be converted for lug-to-lug unit mounting by installing the GE TEY3B mounting base accessory.
Is the TEYF360 suitable for direct current (DC) applications?
Yes, this thermal-magnetic breaker is rated for DC systems and provides up to 10kAIC of interrupting capacity at 250VDC.
Does the TEYF360 provide common trip functionality across all three phases?
Yes, it features an internal common trip bar that ensures all three poles disconnect simultaneously during an overload or short circuit, which prevents single-phasing of connected three-phase loads.
