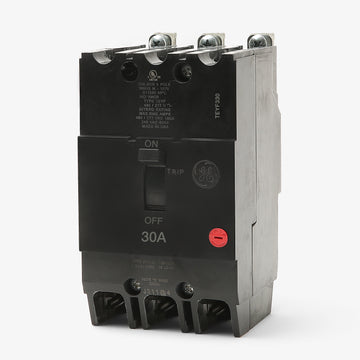

ABB / General Electric TEYF330 Miniature Circuit Breaker
- 30A
- 3 Pole
- Bolt-On
ABB / General Electric
TEYF330
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
TEYF330
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TEYF330 - 30A 3 Pole Miniature Circuit Breaker
New
Quantity
Quantity
ABB / General Electric TEYF330 - 30A 3 Pole Miniature Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEYF330 |
| Series | TEYF |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 277VAC, 480Y/277VAC, 250VDC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 18kA @ 277VAC, 18kA @ 480Y/277VAC, 10kA @ 250VDC, 65kA @ 120/240VAC |
| Frame Type | TEY |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Lighting Panelboards |
| Wire Gauge | 14-10 AWG (Cu/Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Handle Lock, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5.1, UL 489 |
| Approval | CSA, HACR, HID, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Quick-Make/Quick-Break, Common Trip, Non-Interchangeable Trip |
Sold out
Quantity
ABB / General Electric TEYF330 - 30A 3 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Series | TEYF |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 277VAC, 480Y/277VAC, 250VDC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 18kA @ 277VAC, 18kA @ 480Y/277VAC, 10kA @ 250VDC, 65kA @ 120/240VAC |
| Frame Type | TEY |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Lighting Panelboards |
| Wire Gauge | 14-10 AWG (Cu/Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Handle Lock, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5.1, UL 489 |
| Approval | CSA, HACR, HID, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Quick-Make/Quick-Break, Common Trip, Non-Interchangeable Trip |
Similar Items
25A 3 Pole Miniature Circuit Breaker
3 Pole Circuit Breaker
20A 3 Pole Miniature Circuit Breaker
Description
Rated for 30 amps, the GE TEYF330 is a 3-pole miniature circuit breaker. It features a fixed thermal-magnetic trip unit to safeguard commercial circuits. This breaker mounts via a bolt-on connection into GE A-Series lighting panelboards. It is fully compatible as a substitute for TEYD3030B, TEYH3030B, and TEYL3030B models. With an 18 kAIC capacity at 480Y/277VAC, it ensures robust fault clearing. The unit is HACR and HID rated for air conditioning and lighting loads.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEYF330 |
| Series | TEYF |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 277VAC, 480Y/277VAC, 250VDC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 18kA @ 277VAC, 18kA @ 480Y/277VAC, 10kA @ 250VDC, 65kA @ 120/240VAC |
| Frame Type | TEY |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Lighting Panelboards |
| Wire Gauge | 14-10 AWG (Cu/Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Handle Lock, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5.1, UL 489 |
| Approval | CSA, HACR, HID, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Quick-Make/Quick-Break, Common Trip, Non-Interchangeable Trip |
Product FAQs
6 answersIs there a difference between the GE TEYF330 and the ABB TEYF330?
No. Following ABB's acquisition of GE Industrial Solutions, the TEYF series continues to be manufactured to the exact same physical and electrical specifications. A breaker labeled ABB or GE with the TEYF330 catalog number will fit and function identically.
What does the "F" in the TEYF330 catalog number signify?
In the GE/ABB Q-Line TEY frame family, the letter suffix designates the interrupting capacity tier. The "F" indicates a higher interrupting rating of 18kAIC at 480/277V, compared to the standard base TEY series which is rated at 14kAIC for the same voltage.
How do the line and load connections differ on the TEYF330?
The TEYF330 is a bolt-on circuit breaker. Its line side physically bolts directly to the internal busbars of a compatible panelboard, while the load side utilizes the breaker's factory-installed mechanical lugs to terminate field wiring.
Can the TEYF330 be used for standalone, non-panelboard installations?
Yes, but it requires a separate bolt-on mounting base (such as the TEY3B). This base converts the breaker for unit-mount, lug-to-lug applications outside of a standard A-Series panelboard.
Can I field-install a shunt trip or auxiliary switch on the TEYF330?
No. While internal accessories like shunt trips and auxiliary switches are available for 3-pole TEYF breakers, GE/ABB specifies that they must be factory-installed and cannot be retrofitted in the field.
Is the TEYF330 HACR rated for HVAC equipment?
Yes, this breaker carries an HACR rating, meaning it is certified for use in heating, air conditioning, and refrigeration applications that require group motor protection.
