General Electric TEYF340 Circuit Breaker
- 40A
- 3 Pole
- Bolt-On
General Electric
TEYF340
Circuit Breaker
Brand
General Electric
SKU
TEYF340
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
General Electric TEYF340 3 Pole Circuit Breaker
New
Quantity
Quantity
General Electric TEYF340 3 Pole Circuit Breaker
New
Quantity
| Brand | General Electric |
|---|---|
| Part Number | TEYF340 |
| Series | TEYF |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 277VAC, 480Y/277VAC, 250VDC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 18kA @ 277VAC, 18kA @ 480Y/277VAC, 10kA @ 250VDC, 65kA @ 120/240VAC |
| Frame Type | TEY |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Lighting Panelboards |
| Wire Gauge | 10-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Handle Lock, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5.1, UL 489 |
| Approval | CSA, HACR, HID, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Quick-Make/Quick-Break, Common Trip, Non-Interchangeable Trip |
Quantity
General Electric TEYF340 3 Pole Circuit Breaker
Re-Certified
Quantity
| Brand | General Electric |
|---|---|
| Series | TEYF |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 277VAC, 480Y/277VAC, 250VDC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 18kA @ 277VAC, 18kA @ 480Y/277VAC, 10kA @ 250VDC, 65kA @ 120/240VAC |
| Frame Type | TEY |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Lighting Panelboards |
| Wire Gauge | 10-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Handle Lock, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5.1, UL 489 |
| Approval | CSA, HACR, HID, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Quick-Make/Quick-Break, Common Trip, Non-Interchangeable Trip |
Similar Items
35A 3 Pole Miniature Circuit Breaker
50A 3 Pole Miniature Circuit Breaker
30A 3 Pole Miniature Circuit Breaker
Description

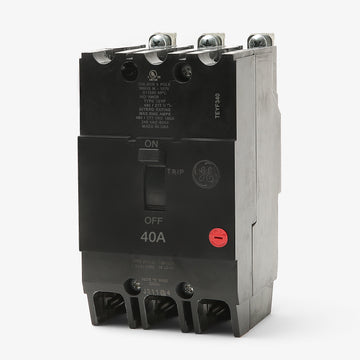

General Electric TEYF340 3 Pole Circuit Breaker
The General Electric TEYF340 is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 40 Amps and a voltage rating of 277/480V. It has an interrupting rating of 18kAIC at 480V. The TEYF340 has a bolt-on connection type and includes long time and instantaneous trip functions.
Specifications
| Brand | General Electric |
|---|---|
| Part Number | TEYF340 |
| Series | TEYF |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 277VAC, 480Y/277VAC, 250VDC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 18kA @ 277VAC, 18kA @ 480Y/277VAC, 10kA @ 250VDC, 65kA @ 120/240VAC |
| Frame Type | TEY |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Lighting Panelboards |
| Wire Gauge | 10-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Handle Lock, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5.1, UL 489 |
| Approval | CSA, HACR, HID, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Quick-Make/Quick-Break, Common Trip, Non-Interchangeable Trip |
Product FAQs
6 answersWhich panelboards are compatible with the TEYF340 circuit breaker?
This bolt-on breaker is designed specifically for use in GE A-Series lighting panelboards. It can also be used in unit-mount or lug-to-lug applications when paired with the appropriate TEY3B mounting base.
What is the difference between the GE TEY340 and the TEYF340?
Both are 40A, 3-pole breakers with identical physical dimensions, but they differ in their interrupting capacity. The standard TEY340 is rated for 14kA at 480/277V AC, while the TEYF340 offers a higher short-circuit rating of 18kA at 480/277V AC.
Can the TEYF340 breaker be reverse fed?
Yes, the TEYF340 is suitable for reverse feed applications. It does not have line and load restrictions, allowing power to be supplied from either direction.
Can the TEYF340 be used in DC electrical systems?
Yes, this thermal-magnetic breaker is rated for use in DC applications up to 250V DC, with an interrupting capacity of 10kA.
What wire sizes are accepted by the lugs on the TEYF340?
The factory-installed lugs on this breaker accept 10 AWG to 4 AWG copper or aluminum conductors.
Is the TEYF340 HACR rated?
Yes, this breaker carries an HACR special marking, meaning it is approved for use with heating, air conditioning, and refrigeration equipment.
