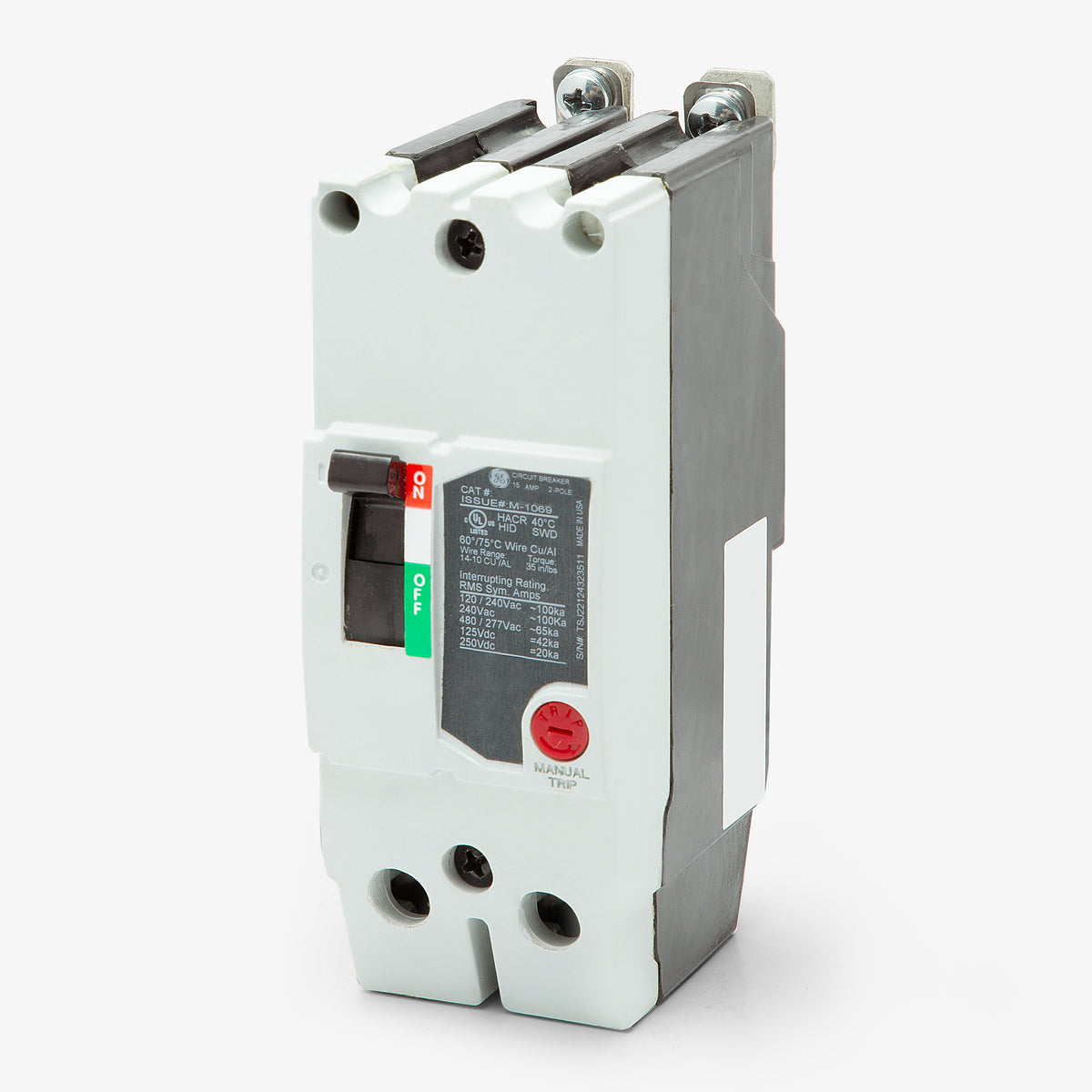

ABB / General Electric TEYH2015B Molded Case Circuit Breaker
- 15A
- 2 Pole

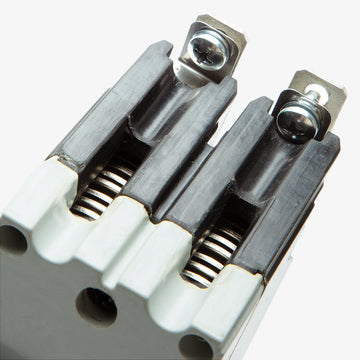

- Bolt-On
ABB / General Electric
TEYH2015B
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TEYH2015B
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TEYH2015B - 15A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTEYH2030B
30A 2 Pole Molded Case Circuit Breaker
3 Pole Circuit Breaker
ABB / General ElectricTEYL2015B
15A 2 Pole Molded Case Circuit Breaker
Description
Engineered for commercial power distribution, the GE TEYH2015B provides reliable overload and short-circuit protection. This 15A, two-pole molded case circuit breaker features a compact one-inch per pole footprint to maximize enclosure space. It bolts into GE A-Series lighting panelboards, serving as a robust branch breaker. The unit includes load side lug terminals for secure wire connections. Rated 35kAIC at 480Y/277V, it features a common trip bar and is HACR and HID rated.Specifications
| Brand | ABB / General Electric |
|---|---|
| Series | TEYH |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 250VDC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480Y/277VAC, 10kA @ 250VDC, 65kA @ 120/240VAC |
| Frame Type | TEY |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Lighting Panelboards |
| Wire Gauge | 14-10 AWG (Cu/Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Handle Lock, Handle Tie, Mounting Base |
|---|---|

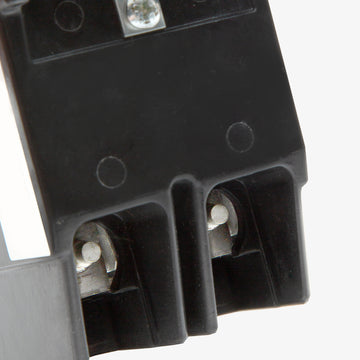

| Accessories | Load Side Lug Terminals |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, HID, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Quick-Make/Quick-Break, Non-Interchangeable Trip, Common Trip |
Product FAQs
5 answersWhat panelboards are compatible with the TEYH2015B circuit breaker?
This breaker is designed for bolt-on installation in GE A-Series lighting panelboards, specifically Type AS panels.
What is the recommended lug torque for the TEYH2015B?
For the accepted 14-10 AWG copper or aluminum wire, the recommended lug tightening torque is 35 in-lb.
What is the difference between GE TEY and TEYH circuit breakers?
The letter suffix designates the short circuit interrupting capacity tier at 480Y/277VAC. Standard TEY breakers are rated at 14kAIC, while the TEYH series is rated for high interrupting capacity at 35kAIC.
Why is the TEYH2015B listed under both ABB and General Electric?
ABB acquired GE Industrial Solutions. Depending on the manufacturing date, this breaker may carry either the ABB or GE brand name, but both are identical in form, fit, and function.
Can the TEYH2015B be used in DC applications?
Yes, this thermal magnetic breaker is rated for up to 250VDC with an interrupting capacity of 10kAIC.
