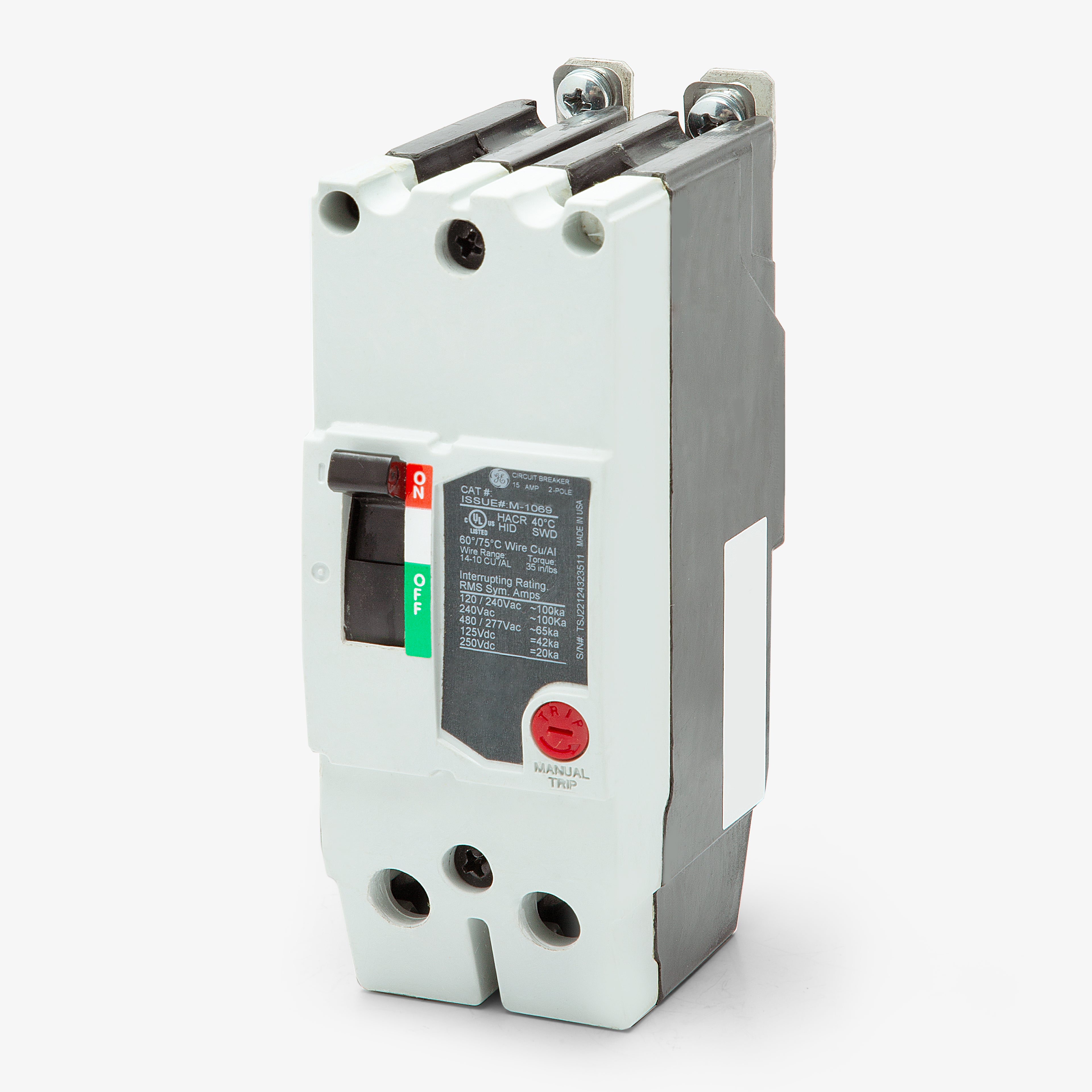

ABB / General Electric TEYH2020B - 20A 2 Pole Miniature Circuit Breaker

Brand ABB / General Electric
SKU TEYH2020B
5.0
Rated 5.0 out of 5 stars
3 Reviews
Free Shipping Over $99
Free Shipping Over $99
Free Shipping Over $99
Free Shipping Over $99

ABB / General Electric TEYH2020B - 20A 2 Pole Miniature Circuit Breaker

Brand ABB / General Electric
SKU TEYH2020B
5.0
Rated 5.0 out of 5 stars
3 Reviews
Select Item Condition
Earn 667 SuperPoints

Quantity
Planning a Big Order?
Bulk pricing available—let us know your needs for a quote.
Get a quote
Shop with Confidence
Enjoy a free 60-day warranty, extendable to 1 year at checkout.
Learn more

ABB / General Electric TEYH2020B - 20A 2 Pole Miniature Circuit Breaker

New

$667.00 In stock

Quantity

DescriptionSpecificationsSuperClubWarranties
Description
Designed to protect 480Y/277V systems, the GE TEYH2020B provides 20 amps of thermal-magnetic overcurrent defense. The two-pole configuration features an internal common trip bar, ensuring both phases disconnect simultaneously during a fault. This component integrates seamlessly into GE A-Series lighting panelboards. Its bolt-on design guarantees a rigid, reliable connection. Boasting a 35 kAIC rating at 480Y/277VAC, it is fully HACR and HID rated for heating and high-intensity lighting.

Specifications

Brand ABB / General Electric
Series TEYH
Amperage 20A
Voltage 240VAC, 480Y/277VAC, 250VDC, 120/240VAC
Poles 2
Phase 1
AIC Rating 65kA @ 240VAC, 35kA @ 480Y/277VAC, 10kA @ 250VDC, 65kA @ 120/240VAC
Mounting Style Bolt-On

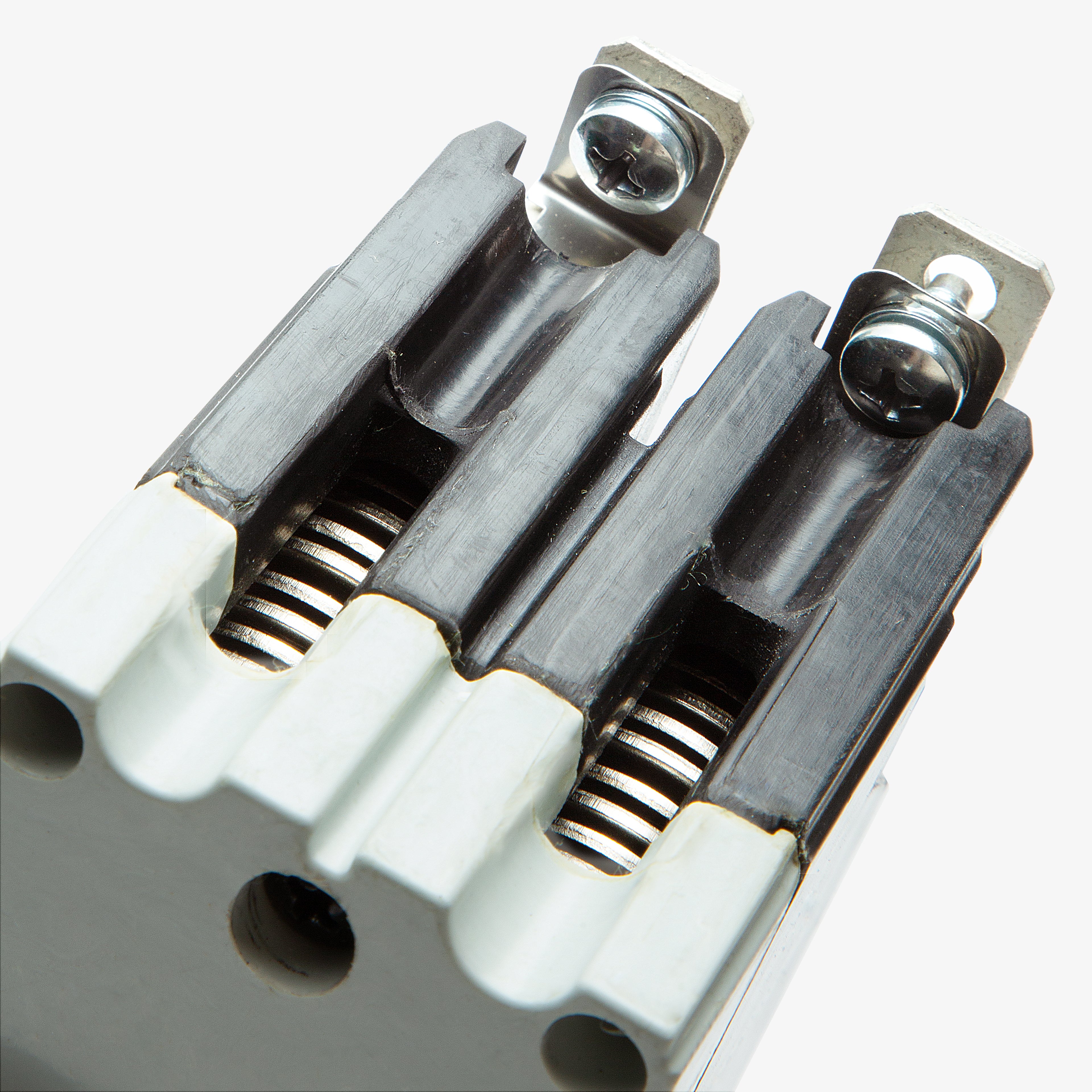

Terminal Type Lugs
For Use With GE A-Series Lighting Panelboards
Trip Technology Thermal Magnetic
Trip Function Code LI
Trip Function Long-Time, Instantaneous
Trip Adjustability Fixed Thermal, Fixed Magnetic
Wire Gauge 14-10 AWG (Cu), 12-10 AWG (Al)
Max Wire 10 AWG
Min Wire 14 AWG
Available Options Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Padlock Attachment
Accessories Load Side Lugs
Standards CSA C22.2 No. 5, NEMA AB 1, UL 489
Approval CSA, HACR, HID, UL
Temp Rating 40C
Construction Features HACR Rated, HID Rated, Common Trip, Quick-Make/Quick-Break, Non-Interchangeable Trip
