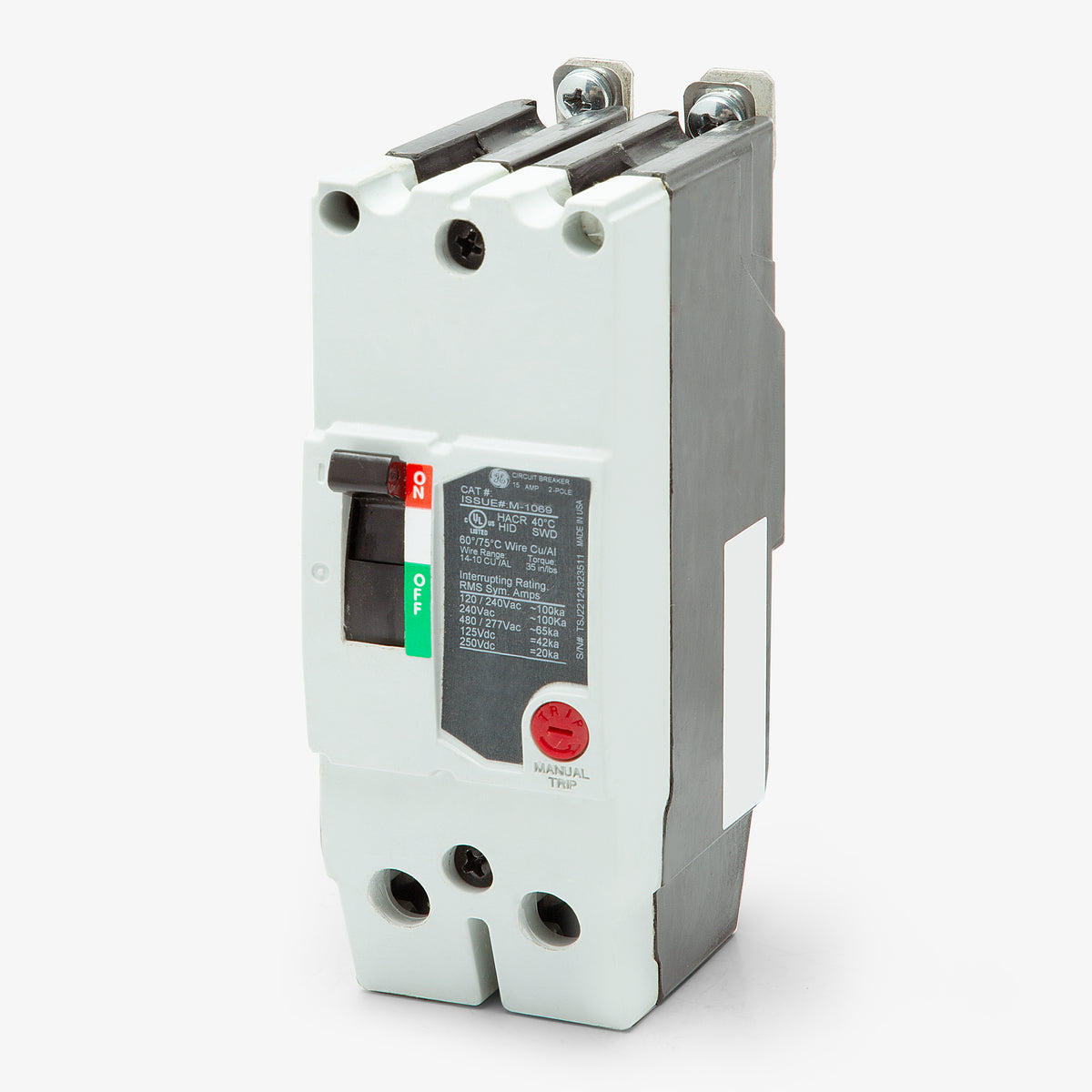

ABB / General Electric TEYL2050B Molded Case Circuit Breaker
- 50A
- 2 Pole
- Bolt-On
ABB / General Electric
TEYL2050B
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TEYL2050B
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TEYL2050B - 50A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric TEYL2050B - 50A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEYL2050B |
| Series | TEYL |
| Amperage | 50A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 125VDC, 250VDC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 42kA @ 125VDC, 20kA @ 250VDC, 100kA @ 120/240VAC |
| Frame Type | TEYL |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 10-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment, Handle Lock |
|---|---|
| Accessories | Load Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, HID, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Quick-Make/Quick-Break, Common Trip, Non-Interchangeable Trip |
Sold out
Quantity
ABB / General Electric TEYL2050B - 50A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEYL2050B-R |
| Series | TEYL |
| Amperage | 50A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 125VDC, 250VDC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 42kA @ 125VDC, 20kA @ 250VDC, 100kA @ 120/240VAC |
| Frame Type | TEYL |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 10-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment, Handle Lock |
|---|---|
| Accessories | Load Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, HID, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Quick-Make/Quick-Break, Common Trip, Non-Interchangeable Trip |
Similar Items
ABB / General ElectricTEYL2060B
60A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTEYL2040B
40A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTEYL2035B
35A 2 Pole Molded Case Circuit Breaker
Description
Built for heavy-duty commercial use, this 50A molded case circuit breaker provides fixed long-time and instantaneous trip functions. The 2-pole device features a bolt-on mounting style designed specifically for GE A-Series panelboards. It achieves a high interrupting capacity of 65 kAIC at 480Y/277VAC and 100 kAIC at 240VAC, ensuring superior system safety. Equipped with standard load lugs, it accommodates 10-4 AWG conductors and supports quick-make, quick-break operation.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEYL2050B |
| Series | TEYL |
| Amperage | 50A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 125VDC, 250VDC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 42kA @ 125VDC, 20kA @ 250VDC, 100kA @ 120/240VAC |
| Frame Type | TEYL |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 10-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment, Handle Lock |
|---|---|
| Accessories | Load Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, HID, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Quick-Make/Quick-Break, Common Trip, Non-Interchangeable Trip |
Product FAQs
5 answersWhich panelboards accept the TEYL2050B circuit breaker?
This breaker is designed for bolt-on installation in ABB and GE A-Series lighting panelboards. It will not fit standard residential plug-on load centers.
What is the difference between the GE TEY2050B and the TEYL2050B?
The difference is the short-circuit interrupting rating. The standard TEY frame is rated for 14kA at 480/277V, while the TEYL frame offers a higher interrupting capacity of 65kA at 480/277V. Both are 50A, 2-pole breakers that fit A-Series panelboards.
Is the TEYL2050B rated for direct current (DC) systems?
Yes, this thermal-magnetic breaker is UL listed for DC applications. It provides an interrupting capacity of 42kA at 125VDC and 20kA at 250VDC.
What are the acceptable wire sizes for the TEYL2050B lugs?
The standard lugs on this breaker accept 10 AWG to 4 AWG conductors. They are suitable for use with both copper and aluminum wiring.
Are the trip settings adjustable on the TEYL2050B?
No, this breaker features a fixed thermal-magnetic trip unit. It provides standard Long-Time and Instantaneous (LI) protection functions that cannot be field-adjusted.
