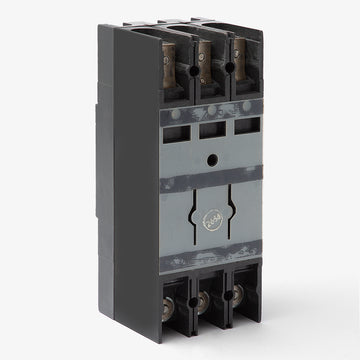

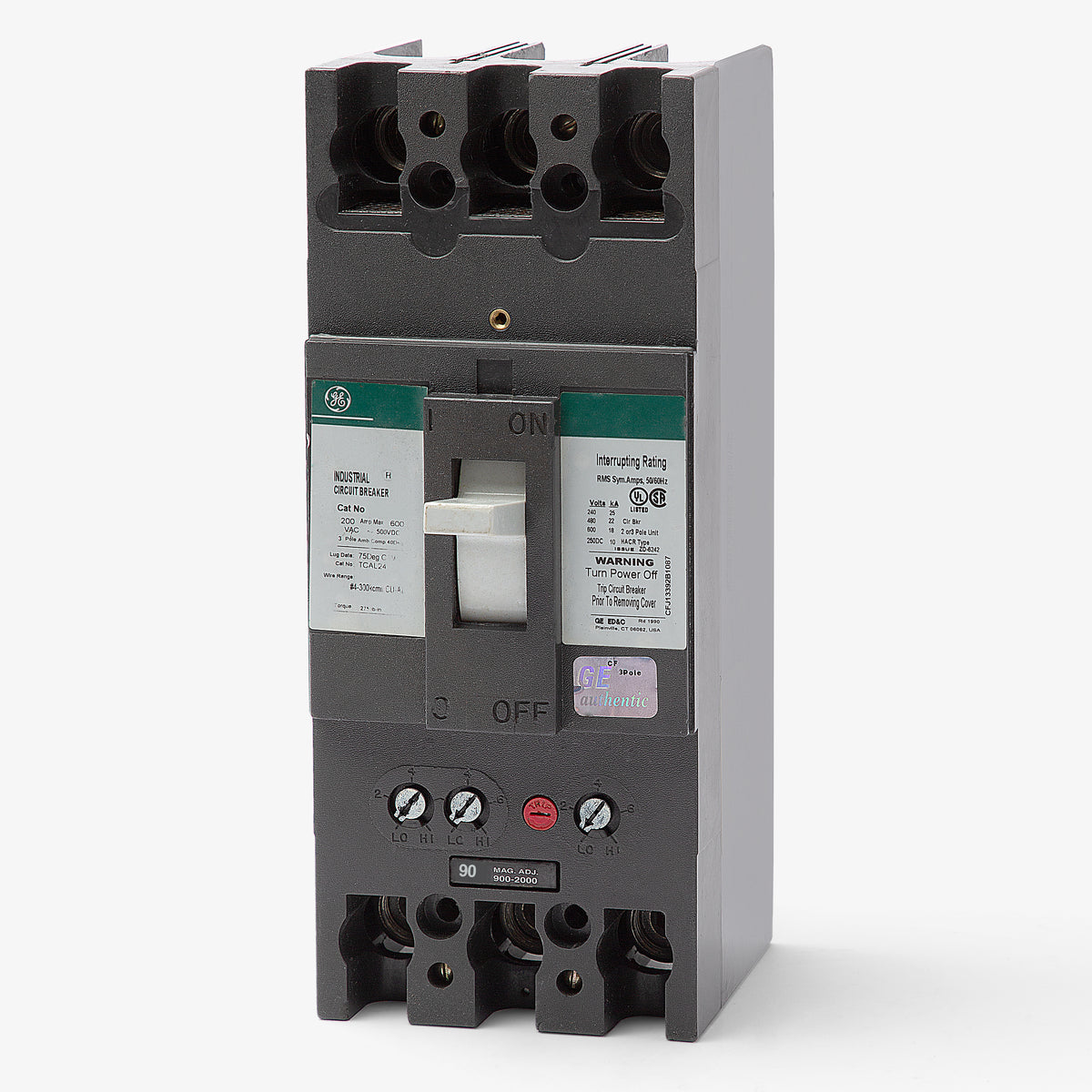

ABB / General Electric TFJ236090 Molded Case Circuit Breaker
- 90A
- 3 Pole
- Bolt-On
ABB / General Electric
TFJ236090
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TFJ236090
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TFJ236090 - 90A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
ABB / General ElectricTFJ236110
110A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTFJ236070
70A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTFJ236125
125A 3 Pole Molded Case Circuit Breaker
Description
Providing reliable overcurrent protection, the GE TFJ236090 is a 3-pole, 90A bolt-on MCCB. It features a thermal-magnetic trip unit with adjustable magnetic settings, allowing precise coordination for long-time and instantaneous (LI) fault protection. Designed for seamless integration, this breaker mounts into GE A-Series and Spectra Series panelboards. It is an ideal maintenance component for existing F-frame systems.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TFJ236090-R |
| Series | TFJ |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 22kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, Spectra Series Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Lug Kits, Motor Operator, Rotary Handle |
|---|---|
| Accessories | Load Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
5 answersWhat panelboards and enclosures are compatible with the TFJ236090?
This bolt-on F-frame circuit breaker is compatible with GE A-Series panelboards, Spectra Series panelboards, switchboards, and motor control centers.

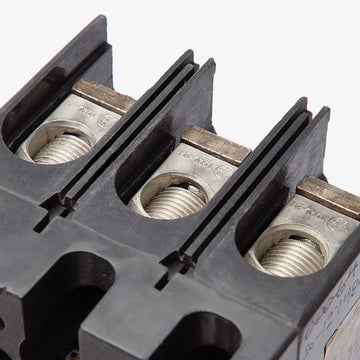

What wire sizes do the standard lugs on this breaker accept?
The included lugs accommodate wire sizes ranging from 4 AWG to 300 kcmil and are rated for use with both copper and aluminum conductors.
Are the trip settings adjustable on the TFJ236090?
This breaker uses a thermal-magnetic trip unit with a fixed thermal setting for long-time overload protection and an adjustable magnetic setting for instantaneous short-circuit protection.
Is this circuit breaker suitable for DC voltage applications?
Yes, the TFJ236090 is rated for direct current systems. It carries an interrupting rating of 10kAIC at both 250VDC and 500VDC.
Why is this breaker branded as both ABB and General Electric?
ABB acquired GE Industrial Solutions in 2018. Legacy GE molded case circuit breakers, including the TFJ series, are now distributed and supported under the joint ABB / General Electric brand.
