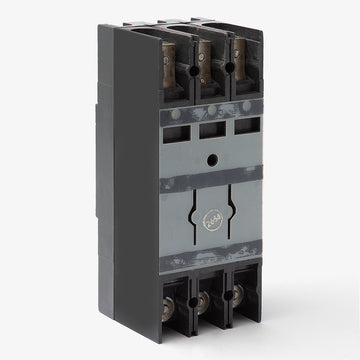

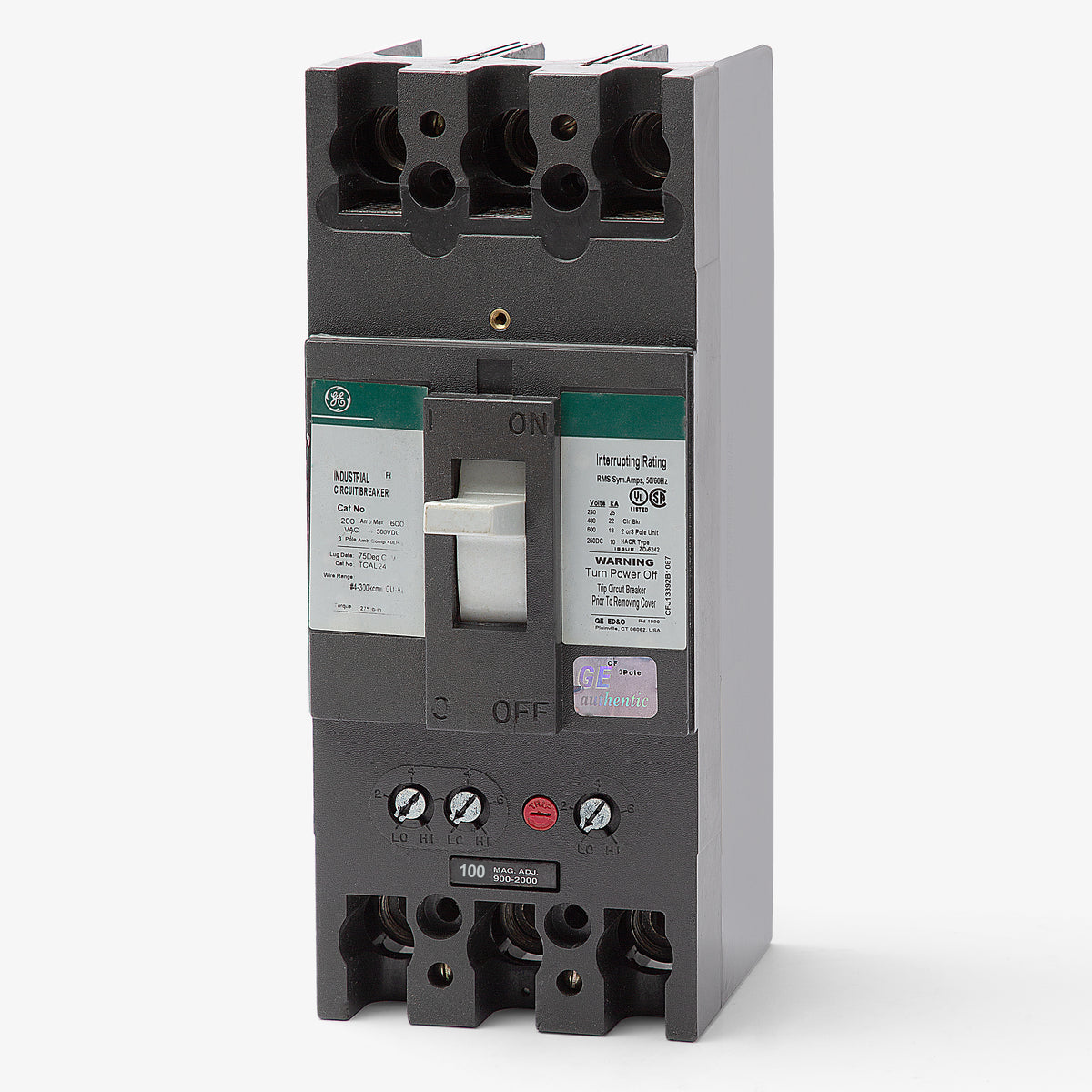

ABB / General Electric TFJ236100 Molded Case Circuit Breaker
- 100A
- 3 Pole
- Bolt-On
ABB / General Electric
TFJ236100
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TFJ236100
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TFJ236100 - 100A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Quantity
ABB / General Electric TFJ236100 - 100A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TFJ236100-R |
| Series | TFJ |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 22kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, Spectra Series Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 4 AWG - 300 kcmil |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Lug Kits, Motor Operator, Rotary Handle |
|---|---|
| Accessories | Load Side Lugs |
| Standards | HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Sold out
Quantity
ABB / General Electric TFJ236100 - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Series | TFJ |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 22kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, Spectra Series Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 4 AWG - 300 kcmil |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Lug Kits, Motor Operator, Rotary Handle |
|---|---|
| Accessories | Load Side Lugs |
| Standards | HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Similar Items
ABB / General ElectricTFJ236090
90A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTFJ236125
125A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTFJ236070
70A 3 Pole Molded Case Circuit Breaker
Description
Built to integrate into GE A-Series and Spectra Series panelboards, the TFJ236100 is a 100A, 3-pole molded case circuit breaker. It delivers dependable power distribution for commercial switchboards. The bolt-on mounting style ensures a secure connection to the busbar. Featuring a thermal-magnetic trip unit, it provides 22 kAIC at 480VAC. Note that this legacy F-Frame model is officially replaced by the ABB Tmax XT series for new installations.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TFJ236100-R |
| Series | TFJ |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 22kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, Spectra Series Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 4 AWG - 300 kcmil |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Lug Kits, Motor Operator, Rotary Handle |
|---|---|
| Accessories | Load Side Lugs |
| Standards | HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
5 answersWhich panelboards are compatible with the TFJ236100 circuit breaker?
This bolt-on F-frame breaker is designed for installation in GE A-Series panelboards, Spectra Series panelboards, switchboards, and motor control centers.

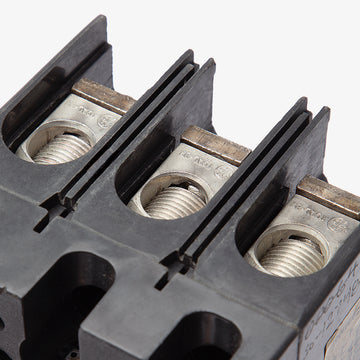

What wire sizes are accepted by the lugs on the TFJ236100?
The factory lugs on this breaker accommodate wire gauges ranging from 4 AWG up to 300 kcmil. Always verify local codes and proper torque specifications during installation.
Does the TFJ236100 feature an adjustable trip setting?
Yes, it features a thermal magnetic trip unit with a fixed thermal element for long-time overload protection and an adjustable magnetic element for instantaneous short-circuit protection.
Why is the TFJ236100 listed under both ABB and General Electric?
ABB acquired GE Industrial Solutions in 2018. The TFJ236100 is a legacy GE F-frame molded case circuit breaker that is now manufactured and supported under the ABB brand portfolio.
Can the TFJ236100 be used in DC electrical systems?
Yes, this breaker is rated for DC applications, providing an interrupting capacity of 10kA at both 250VDC and 500VDC.
